PIILCD-T070C01
PIISUN
| Quantity: | |
|---|---|
Item No.:PIILCD-T070C01
Payment:EXW
Product Origin:China
Min Order:1000
Shipping Port:Shenzhen
Lead Time:4~5 weeks

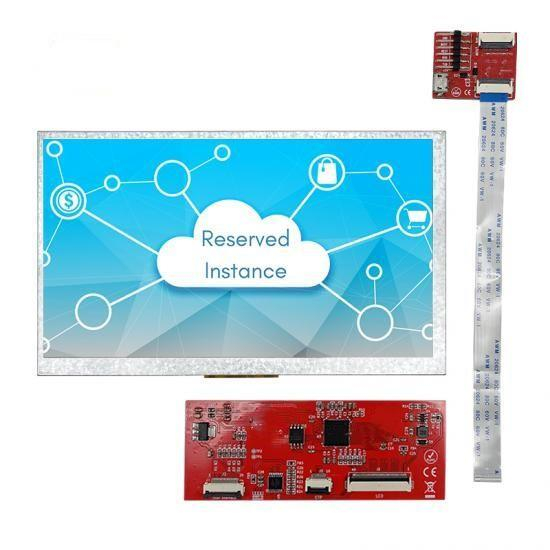

Introducing our latest product, the 7'' LCD UART Interface Capacitive PANEL. This high-quality HMI interface features an impressive 800x480 resolution on a 7-inch TFT LCD screen module.
7'' LCD UART interface Capacitive PANEL 800x480 hmi interface 7 inch tft lcd screen module
| Specification | ||
| Part No. | PiiLCD-T070C01 | |
| Outline Dimension(mm) | 190.08(W) x 121.92(H) x 5.13(D) | |
| Active Area(mm) | 153.84(W) x 85.63(H) | |
| Resolution(dots) | 800x (RGB) × 480 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480V) | |
| Touch panel | CTP | |
| Driver IC | EK9716BD&EK73002ACGB | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,TN, 7 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | UART | |
| Module lifetime(Hours) | 50,000-100,000 | |
Custom LCD：
1. LCD Type: TN, HTN, STN, FSTN, VA, COB, COG etc.....
2. Polarizer type: Transmissive, Transflective, Reflective
3. Connector Type: Metal Pins, Zebra, Heat-seal
4. The range of operating Temperature: -40~90°C
Custom Process:
Confirm specific requirements → pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
Lead time for custom LCD:
drawing making:2-5days
tooling and samples: around 3wks
Application:
Energy meter, digital meter, oiling machine, crane, air conditioner, customized for your device.
OEM and customization welcome!
