PIIHDEX60
PIISUN
| Quantity: | |
|---|---|

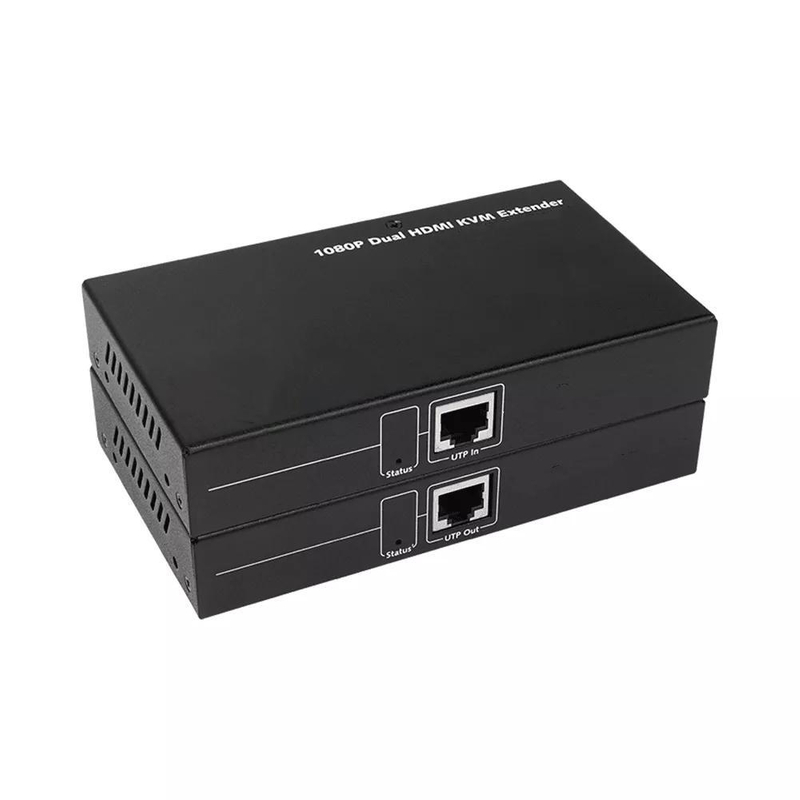

PIISUN PIIHDEX60 is a brand-new dual monitor HDMI KVM extender kit. It can transmit dual 1080P HDMI signal along with USB 2.0 up to 60m/197ft over a single Cat 5e/6/6a/7 cable, with zero loss or delay. With its plug-n-play feature, ultra-slim design and excellent performance, HDEX60-DM KVM extender is ideal for extending your desktop, workstation, gaming PC, etc. It allows you to view extra screens and maximize your productivity.
Main Features:
Brand-New dual HDMI design;
Supports 1080P@60Hz 4:4:4 8bit and HDCP 1.4;
Extends HDMI and USB signals up to 60m/197ft with zero latency;
4x USB 2.0 ports with full bandwidth up to 480Mbps;
Two USB device ports support 5V/1A higher current output;
Supports one-way PoC;
Plug and play, no driver needed;
Ultra-Slim and portable design.
Notes:
1. The Cat 5e/6/6a/7 cable used must be within 60m/197ft.

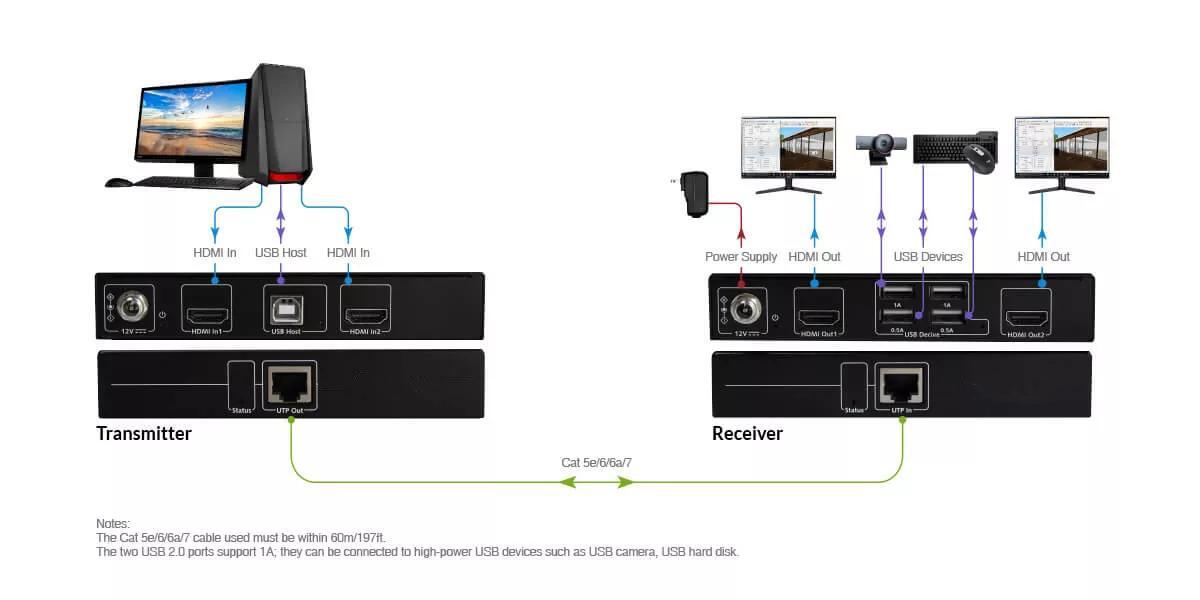

2. With one-way PoC supported, one power adapter is needed to be connected to the receiver to power both units.
3. The two USB 2.0 ports supports 1A can be connected to high-power USB devices such as USB camera, USB hard disk.
| Technical | |
| Video Signal Type | HDMI with 1080P@60Hz, 4:4:4 8bit, HDCP 1.4 |
| Input/Output Resolution | 1080P@60/50/30/25Hz; 720P@60/50Hz; 480P@60Hz |
| Audio Format | PCM 2.0 |
| Max Data Rate | 6.75 Gbps |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 20% to 90%, non-condensing |
| Power Consumption | 5.7W (Maximum) |
| Device Dimensions (W x H x D) | 140 mm ×25 mm ×80.2 mm/ 5.51” x 0.98” x 3.16” |
| Product Weight | Transmitter/Receiver: 0.33kg/0.73lb |
More customization , welcome discuss with us
