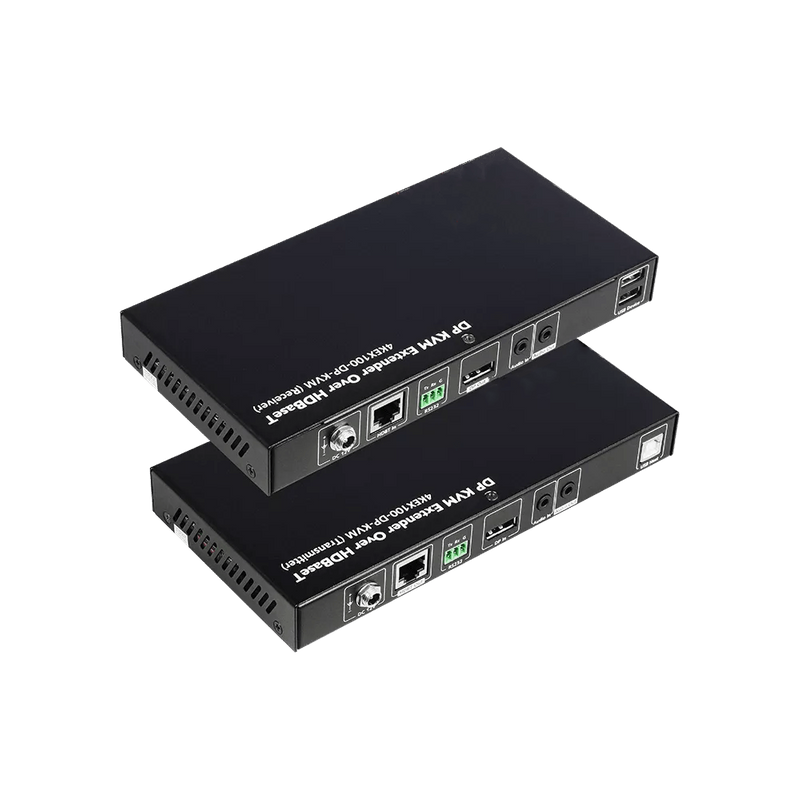

PIIKEX100
PIISUN
| Quantity: | |
|---|---|

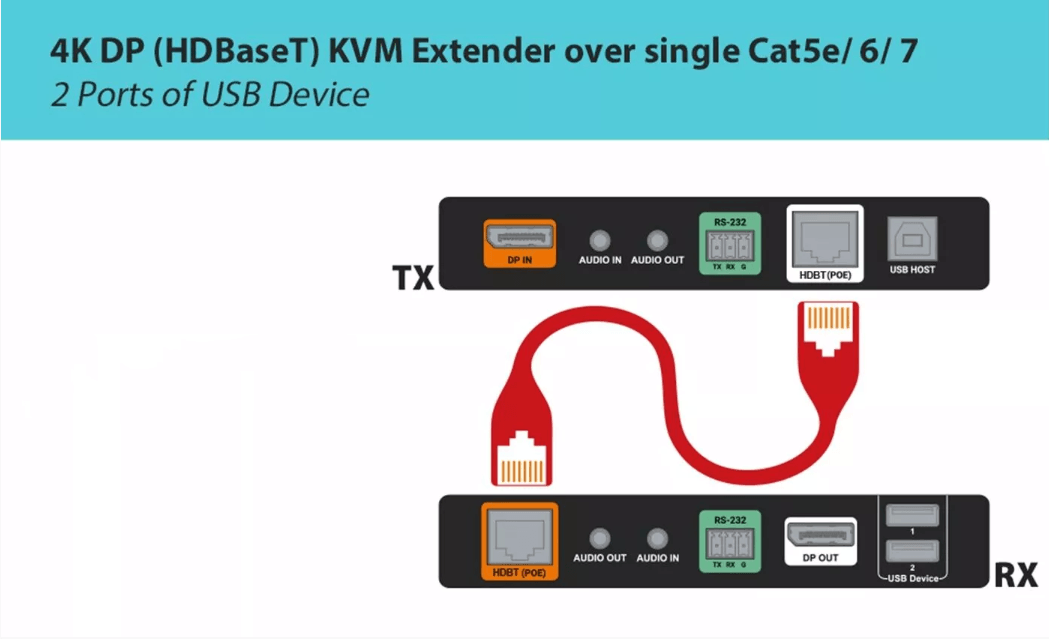

Main Features:
Slim appearance and space saving

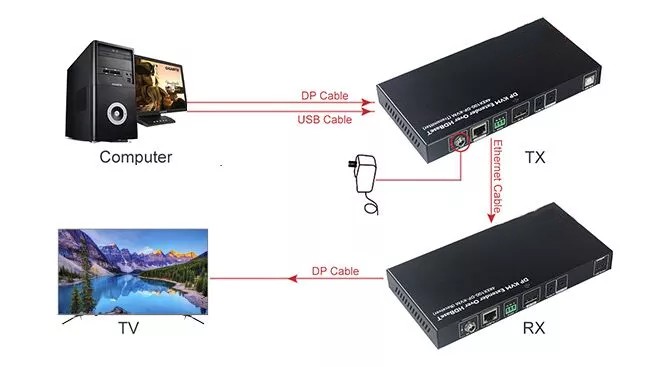

One way PoE, transmitter supplies the power for receiver
Via Cat 6a/7 cable, 4Kx2K@30Hz or 1080P@60Hz output up to 100m.
Via Cat 5e/6 cable, 4Kx2K@30Hz output up to 90m, 1080P@60Hz up to 100m
DP 1.2 supported, up to 4k@30Hz and HDCP 1.4 compliance
Supports Bi-directional stereo audio, RS232 and EDID pass through over HDBaseT
USB 2.0 pass through over HDBaseT, with USB-HOST built in transmitter and USB-DEVICE built in receiver.
All connectors in one side for easy installation
| PII60-DM | PII80-KVM | PII50-KVM | PII100-KVM | PII-KVM | PIIDP-KVM | |
| Product Type | Dual Monitor | Single Monitor | Single Monitor | Single Monitor | Single Monitor | Single Monitor |
| Video Interface | 2x HDMI in, 2x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x DisplayPort in, 1x DisplayPort out |
| HDMI Version | 1.3 | 1.3 | 2.0 | 1.4 | 1.4 | No, DP 1.2 |
| HDCP Version | 1.4 | 1.4 | 2.2 | 1.4 | doesn't support HDCP | 1.4 |
| Supported Video Resolution | Up to 1080p@60Hz | Up to 1080p@60Hz | up to 4K@60Hz 4:4:4 | up to 4K@30Hz; 1080P@120Hz | up to 4K@60Hz (4:2:0 8bit); 4K@30Hz 4:4:4, 1080P@120hz | up to 4K@30Hz, 1080P@120hz |
| HDMI Audio Channel | Stereo | Stereo | 5.1 Channel | 7.1 Channel | 7.1 Channel | 7.1 Channel |
| Maximum Transmission Range | 197ft (60m) | 260ft (80m) | 164ft (50m) | 395ft (120m) | 330ft (100m) | 330ft (100m) |
| USB Ports | 4x USB 2.0 port | 2x USB 2.0 port | 4x USB 2.0 port | 3x USB 2.0 port | 4x USB 2.0 port | 2x USB 2.0 port |
| POE/POH/POC | Uni-Direction (RX to TX) | Bi-Direction | Uni-Direction (RX to TX) | No | Uni-Direction (TX to RX) | Uni-Direction (TX to RX) |
| RS232 | No | No | No | No | Yes | Yes |
| IR | No | No | No | No | No | No |
| Router/Ethernet Switch Compatibility | No, point to point | No, point to point | No, point to point | Yes, up to 16 sets of TX and RX | No, point to point | No, point to point |
| Plug & Play | Yes | Yes | Yes | Yes | Yes | Yes |
| Technical | |
| Video Signal Type | DP1.2 with HDCP1.4 |
| Audio Format | L/R channel PCM 2.0 |
| Input/Output Resolution Support | 640×4808, 800×6008, 1024×7688, 1280×7208, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 1920×12008, 2560×14408, 2560×16008, 3840x2160P5, 1920×10809 Note: 5 = at 30 Hz, 8 = at 60 Hz, 9 = 120Hz |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
| Surge Protection | Voltage: ±1 kV |
| Power Consumption (Maximum) | ≤14.2W (Pair) |
| DP Cable length | 5m (Max) |
| Device Dimensions (W x H x D) | 200 mm × 25 mm ×100 mm 7.91” x 0.99” x 3.95” |
| Product Weight | Transmitter: 0.5kg/1.10lb Receiver: 0.5kg/1.10lb |
