PIIS7809H
PIISUN
Availability: | |
---|---|
Quantity: | |
Details Images:

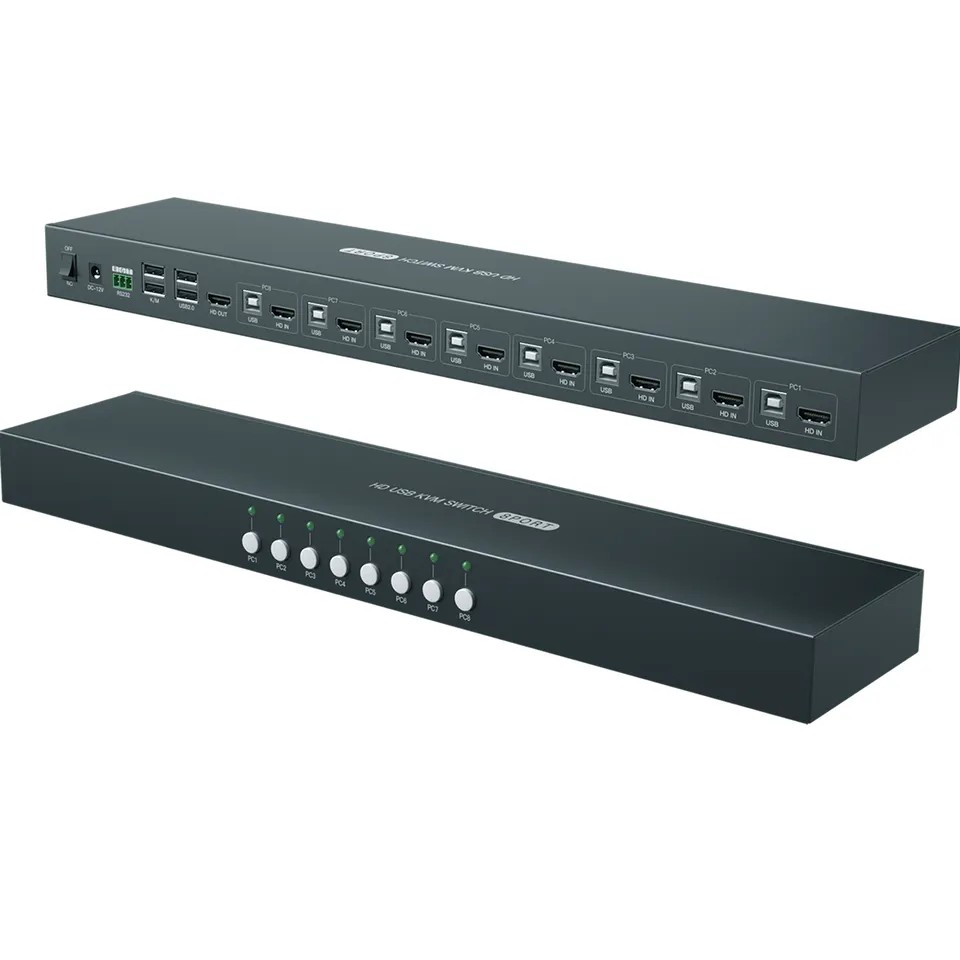

HDMI KVM SWITCH PIIS7809H is widely used in office work, video conference, security, finance, and multimedia teaching, HDMI signal extension, etc.
Parameter | Description | |
Video | Standards | HDMI 1.4 |
Maximum pixel clock | 225MHz | |
Maximum data rate | 10.2Gbps | |
Resolution range | Up to 4Kx2K@30Hz, 3D | |
Connector | HDMI-A Interface | |
Impedance | 100Ω | |
HDMI Cable Range | <5M( Resolution: 1920*1080@60Hz) | |

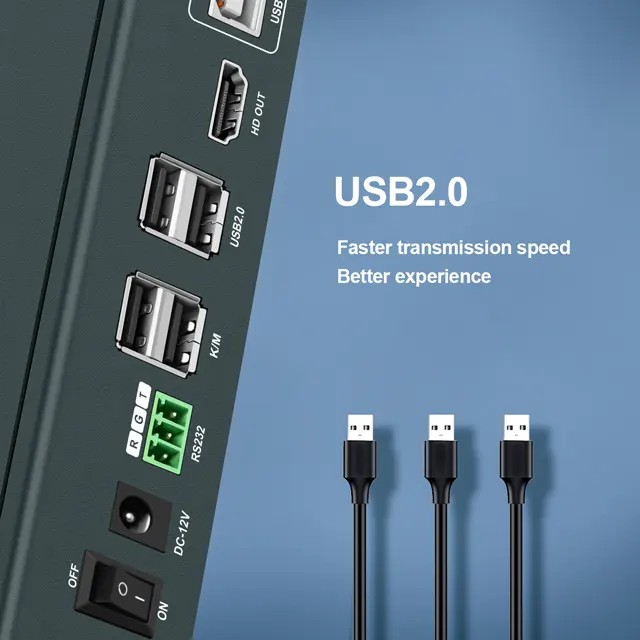

USB | Interface protocols | USB1.1(2pcs),USB2.0(2pcs) |
PC input interface type | USB-B | |
Output interface type | USB-A | |
Other | Power supply | The power adapter: DC 12V |
Power dissipation | MAX 5.5W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 445*95*35mm | |
The warranty | 1 year free warranty |
More customiztion information , Contact us directly please
