C232HM-DDHSL-0/C232HM-EDHSL-0  USB 2.0 Hi-Speed to MPSSE Cable

USB 2.0 Hi-Speed to MPSSE Cable (SPI/I2C/JTAG master) with +3.3V digital level signals.

• Data Rates: 30      Mbps

• USB Speed: High      Speed (480Mbps)

• Interfaces: MPSSE

• USB Connector: Type      A

• End Connector: 10      way 0.1" female pin header

• Cable Length: 0.5m

• Cable Details: 10      core, 6.5mm UL2464 24 AWG

• Packages: N/A

• Channels: 1

• I/O Voltage: 3.3V

• USB      Class: FTDI Drivers

• Virtual Com Port: Yes

• Max Power Output: +3.3V      / 250mA

• FTDI Internal IC: FT232H

• Operating      Temperature: -40°C to +85°C

Product Overview

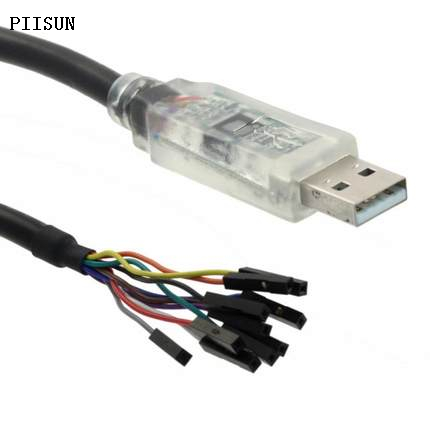

The C232HM-DDHSL-0/C232HM-EDHSL-0 is a USB 2.0 high speed to MPSSE cable. This cable contains a small internal electronic circuit board, utilising the FT232H, which is encapsulated into the USB connector end of the cable, this handles all the USB signalling and protocols. The FT232H is a single channel USB 2.0 high speed (480Mb/s) to UART/FIFO IC. It can be configured in a variety of industry standard serial or parallel interfaces, such as MPSSE - JTAG, SPI, I2C. The integrated FT232H device incorporates a command processor called the multi protocol synchronous serial engine (MPSSE). The purpose of the MPSSE command processor is to communicate with devices which use synchronous protocols (such as JTAG, SPI or I2C) in an efficient manner. The cable is terminated by ten individual wires with single pole connectors which can be interfaced to a male header. Cable signals are compliant with CMOS logic at 3.3V. The cable is 0.5m long and supports a data transfer up to 30Mbps in MPSSE mode.

·   Maximum output of 450mA at 5.0Vdc on VCC

·   Low USB bandwidth consumption

·   UHCI/OHCI/EHCI host controller compatible

·   USB 2.0 high speed (480Mbits/Second) and full speed (12Mbits/Second) compatible

·   Entire USB protocol handled on the chip, no USB specific firmware programming required

·   USB type A connector for direct connection to a host or hub

·   Low operating and USB suspend current

·   Support for USB suspend and resume

·   Adjustable receive buffer timeout

·   1KB receive and transmit buffers for high data throughput

The C232HM-DDHSL-0/C232HM-EDHSL-0, USB to MPSSE cable, is capable providing a USB to SPI, I2C or JTAG interface, is CE, FCC and UKCA approved.

USB to MPSSE cable with +3.3V digital level signals. Maximum output of 200mA @ 3.3VDC on VCC

This is accomplished by the MPSSE within the FT232H device which has the ability to emulate synchronous serial protocols while handling all the USB signalling and protocols.

To expedite application development, FTDI has provided libraries which handle the MPSSE commands to emulate several protocols.

NOTE: use of the MPSSE libraries requires that FTDI’s D2XX drivers are installed.

Applications

Communications & Networking, Audio, Imaging, Video & Vision, Sensing & Instrumentation

Typical Applications

· USB to JTAG interfaces

· USB to SPI interfaces

· USB to I 2C interfaces

· Interfacing MCU / PLD / FPGA based designs to USB

· USB Audio and Low Bandwidth Video data transfer

· Rapid USB integration into existing electronic systems

· Prototyping platform for USB interface on new systems

· USB Instrumentation

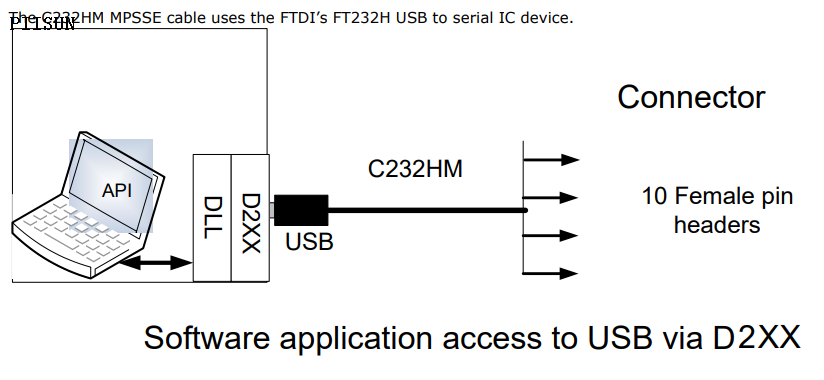

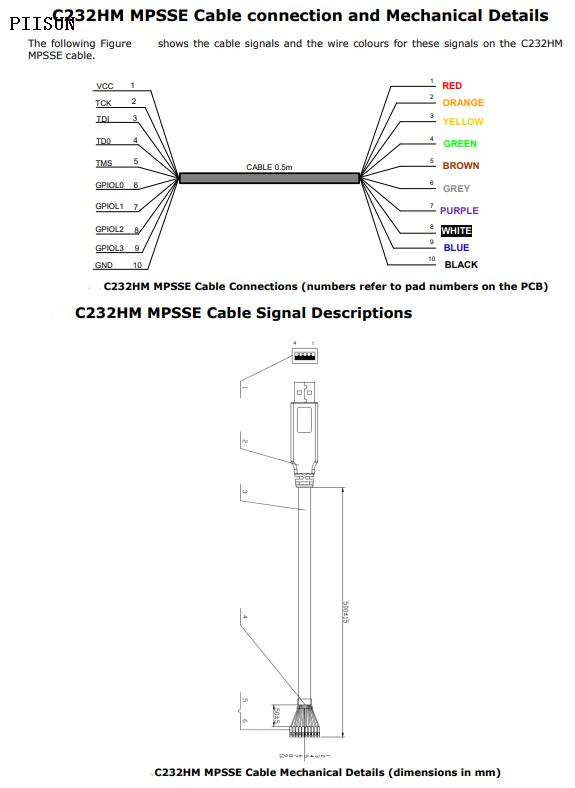

The USB 2.0 Hi-Speed to MPSSE cable contains a small internal electronic circuit board, utilising the FTDI FT232H, which is encapsulated into the USB connector end of the cable, this handles all the USB signalling and protocols. The cable provides a fast, simple way to connect devices with 3.3 Volt digital interfaces to USB. For full details of the IC, consult the FT232H datasheet, this is available from DS_FT232H. The integrated FT232H device incorporates a command processor called the Multi-Protocol Synchronous Serial Engine (MPSSE). The purpose of the MPSSE command processor is to communicate with devices which use synchronous protocols (such as JTAG, SPI or I 2C) in an efficient manner. Full details are available in the MPSSE application note - AN_108. The cable is terminated by ten individual wires with single pole connectors which can be interfaced to a male header. Cable signals are compliant with CMOS logic at 3.3 volts. The FT232H is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC. It can be configured in a variety of industry standard serial or parallel interfaces, such as MPSSE - JTAG, SPI, I2C. The C232HM MPSSE cable is easily configured into each interface e.g. JTAG, SPI, I2C via the application software. The cable is powered from a USB host port and is USB 2.0 Hi-Speed compatible. The cable is 0.5m long and supports a data transfer up to 30Mbps in MPSSE mode.

Available Cables and Part Numbers The following Table 1.1 gives details of the available C232HM MPSSE cables(supports customised end connector designs)

Features

· Based on the Single chip USB Hi-Speed FT232H device

· USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible

· Entire USB protocol handled on the chip – No USB-specific firmware programming required

· USB Type A connector for direct connection to a host or hub

· USB bus powered

· Fully assisted hardware or X-On / X-Off software handshaking

· Synchronous Serial (MPSSE) data rates of up to 30Mbps on JTAG, SPI and I2C

· 1kByte receive and transmit buffers for high data throughput

· Transmit and receive LED drive signals

· Adjustable receive buffer timeout

· Support for USB suspend and resume

· Low operating and USB suspend current

· Low USB bandwidth consumption

· UHCI / OHCI / EHCI host controller compatible

· -40°C to +85°C operating temperature range

· Cable length is 0.5m (19.7 inch)

· Custom versions also available (subject to Minimum Order Quantity (MOQ))

· FTDI’s royalty-free D2XX drivers eliminate the requirement for USB driver development in most cases
