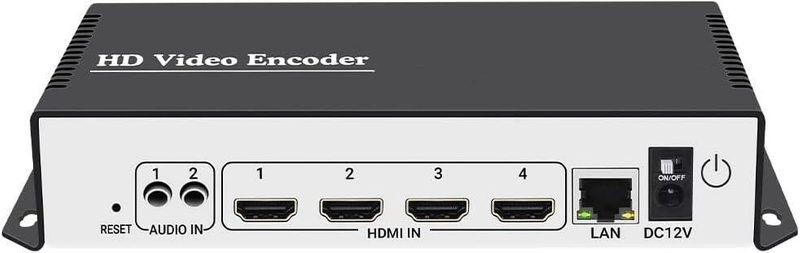

PII-ENCODE1
PIISUN
| Quantity: | |
|---|---|
【Multiple Video Stream Output】- Supports output 4 video streams simultaneously for each HDMI port, and each video stream can use different streaming protocols. You can push these video streams to different streaming servers at the same time.
【Multiple Streaming Protocols】- Support HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), UDP, RTP, MP4, Multicast, Unitcast, ONVIF, FLV and other streaming protocols. Choose between multiple video streaming types to reduce bandwidth consumption or enhance image quality.
【Multiple Video Stream Settings】- You can add static text, scrolling text, logo or time to the output video streams to customize the displayed video. Of course, you can also adjust other parameters, such as resolution, frame rate, bitrate, etc., and even crop, rotate, flip, and mirror. The output audio is also adjustable.
【4K Video Resolution】- 4K UHD video input and output are supported for HDMI port 1 and 2. The output video resolution can be selected, max up to 3840x2160. About frame rate, max support 30fps input and output if the video resolution is 4K（3840x2160）; max support 60fps input and output if the video resolution is 1920x1080 or lower resolution.
【Free Lifetime Support and Service】- All PIISUN video encoders and video decoders include free lifetime technical support and warranty. We also provide SDK and API as well as CGI control protocol documents for secondary development. At the same time, we provide a variety of customizations, such as shell pattern printing, control panel logo addition, firmware or hardware function development, etc.
| Input Video | 4 x HDMI (Support HDCP) |
| Input Audio | HDMI embedded audio, line-in audio(3.5mm jack) |
| Video Encoding | H.265 /HEVC, H.264 /AVC, MJPEG |
| Audio Encoding | AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 |
| Video Resolution | Max 3840X2160@30fps for Port 1 and 2; Max 1920X1080@60fps for Port 3 and 4 |
| Video Bitrate | Adjustable from 32kbit/s to 32mbit/s, CBR or Strong CBR or VBR mode for selection |
| Audio Bitrate | Adjustable from 48000kb/s to 320000kb/s |
| Output Video | 4 video streams output for every HDMI port |
| Output Audio | Support to switch HDMI audio or external audio as output audio (For HDMI port 1 and 2) |
| Streaming Protocol | HTTP, UDP, RTSP, RTMP, RTMPS, SRT, HLS(M3U8), FLV, MP4, Multicast, ONVIF, RTP, Unitcast etc |
| Control Mode | Web page control, support wide area network remote management |
| OSD Setting | Support logo, text, scroll text, time, etc on screen display settings |
| Transmission | Ethernet Port(1000 BASE-T) |
Similar Items from Caratar Coder | ||||||
| Part No. | CA265-4-4K | CA265-4-4K | CA265-1S-4K | CA265-8 | CAR265-1-4K | CARD265-1-4K |
| Type | Encoder | Encoder | Encoder | Encoder | Decoder | Decoder |
| Resolution | Max 3840 x 2160 | Max 3840 x 2160 | Max 3840 x 2160 | Max 1920 x 1080 | Max 3840 x 2160 | Max 3840 x 2160 |
| Input | 4 x HDMI | 4 x SDI | 1 x HDMI | 8 x HDMI | Max 4 Stream URLs | Max 4 Stream URLs |
| Output | Video Stream URLs | Video Stream URLs | Video Stream URLs | Video Stream URLs | HDMI+CVBS+VGA | SDI+HDMI+CVBS+VGA |
| Encoding | H.265、H.264、MJPEG | H.265、H.264、MJPEG | H.265、H.264、MJPEG | H.265、H.264、MJPEG | ✘ | ✘ |
| Decoding | ✘ | ✘ | ✘ | ✘ | H.265、H.264、MJPEG | H.265、H.264、MJPEG |
