PIILCD070WVBE-112C
PIISUN
| Quantity: | |
|---|---|
A TFT LCD module, or Thin-Film Transistor Liquid Crystal Display module, is a type of display technology commonly used in various electronic devices. It consists of a thin-film transistor array that controls each individual pixel on the screen, allowing for precise control and high-quality image reproduction.
TFT LCD modules are known for their vibrant colors, high resolution, and wide viewing angles. They offer excellent image clarity and sharpness, making them suitable for applications that require detailed visuals such as smartphones, tablets, computer monitors, and industrial control systems.
These modules typically include a backlighting system to enhance visibility in different lighting conditions. They may also feature touch functionality, allowing users to interact with the display through capacitive or resistive touch panels.
TFT LCD modules come in various sizes, ranging from small displays for handheld devices to large panels for TVs and monitors. They are compatible with different interface standards such as HDMI, VGA, and LVDS, enabling easy integration with various devices and systems.
Overall, TFT LCD modules are widely used due to their versatility, high-performance capabilities, and ability to deliver visually appealing and interactive displays in a wide range of applications.

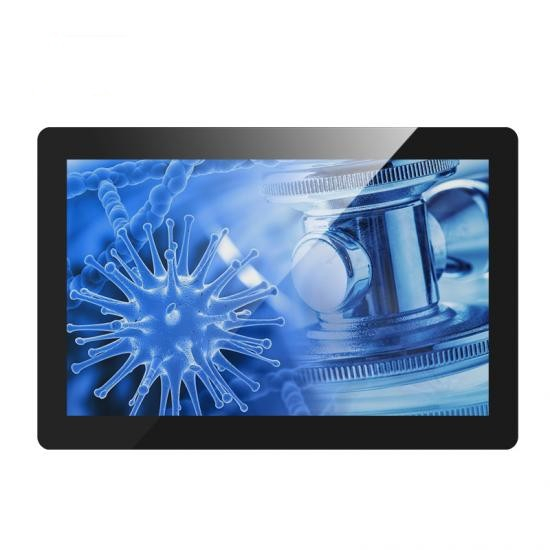

7 inch TFT LCD touch screen with HDMI interface
| Specification | ||
| Part No. | PIILCD070WVBE-112C | |
| Outline Dimension(mm) | 164.9x100.0x6.7 | |
| Display Area(mm) | 154.08x85.92 | |
| Resolution(dots) | WVGA, 800*RGB*480 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 800RGB(H)xRGBx480(V) | |
| Touch panel | 94% transmittance | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal white,Transmissive, 7 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | 12H | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface | HDMI | |
| Touch screen | with Capacitive touch screen | |
We can design and customize segment, character, graphic LCD Display for you with different size, shape, display icons. Welcome to contact us for details. We would like to help you develop your project.
Custom LCD：
1. LCD Type: TN, HTN, STN, FSTN, VA, COB, COG etc.....
2. Polarizer type: Transmissive, Transflective, Reflective
3. Connector Type: Metal Pins, Zebra, Heat-seal
4. The range of operating Temperature: -40~90°C
Custom Process:
Confirm specific requirements → pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
Lead time for custom LCD:
drawing making:2-5days
tooling and samples: around 3wks
Application:
Energy meter, digital meter, oiling machine, crane, air conditioner, customized for your device.
OEM and customization welcome!
Below is the requirements form for custom LCD, if you need, pls. just contact us ,we'll send immediately.
