PII-ENCODE12
PIISUN
| Quantity: | |
|---|---|

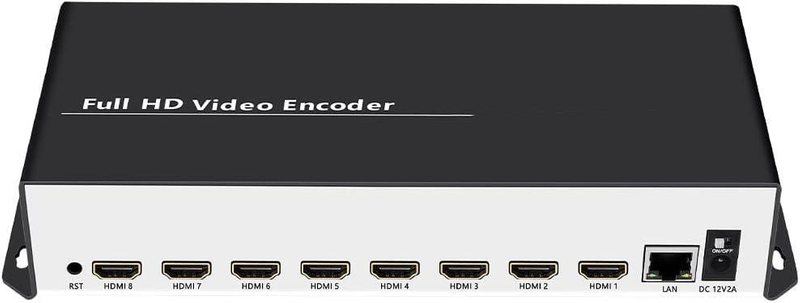

【Innovative Product with Leading Technology】 - This PIISUN video encoder is ideal for broadcast video and audio, support live broadcast for Youtube, Facebook, Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, Tikilive, Netrmedi etc.
【Multiple Video Streams Output】 - Support 2 video streams output for each channel. You can push these video streams to multi-platform at the same time.
【Multiple Protocols Support】 - Support HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), UDP, RTP, Multicast, Unitcast, ONVIF, FLV etc streaming protocol.
【Various OSD Settings】 - You can add static text /scroll text /logo to the output video stream to customize your output displayed video. By the way, the output video parameters can be adjusted via webpage or APP.
【Free Lifetime Support and Service】 - All PIISUN video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we provide many kinds of customization, such as logo print, function or firmware etc customization.
| Input Video | 8-channel HDMI, support HDCP |
| Input Audio | 8-channel HDMI embedded audio |
| Video Encoding | H.265 /HEVC, H.264 /AVC, MJPEG |
| Audio Encoding | AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 |
| Video Resolution | Max 1920X1080@60fps input and output, output resolution is adjustable |
| Video Bitrate | Adjustable from 32kbit/s to 32mbit/s, CBR or Strong CBR or VBR mode for selection |
| Audio Bitrate | Adjustable from 48000kb/s to 320000kb/s |
| Output Video | 2 video streams output for each HDMI port |
| Streaming Protocol | HTTP, UDP, RTSP, RTMP, RTMPS, SRT, HLS(M3U8), FLV, Multicast, ONVIF, RTP, Unitcast etc |
| Control Mode | Web page control, support wide area network remote management |
| OSD Setting | Support logo, text, scroll text, time, etc on screen display settings |
| Service | Provide SDK and API and CGI for secondary development |
| Customization | Provide many kinds of customization, such as logo, function, language etc |
| General | 9.8''x4.0''x1.8''(Size), 1.07lbs(Weight), Aluminum shell(Material) |
| Similar Items from Caratar Coder | ||||||
| Part No. | CA265-4-4K | CA265-4-4K | CA265-1S-4K | CA265-8 | CAR265-1-4K | CARD265-1-4K |
| Type | Encoder | Encoder | Encoder | Encoder | Decoder | Decoder |
| Resolution | Max 3840 x 2160 | Max 3840 x 2160 | Max 3840 x 2160 | Max 1920 x 1080 | Max 3840 x 2160 | Max 3840 x 2160 |
| Input | 4 x HDMI | 4 x SDI | 1 x HDMI | 8 x HDMI | Max 4 Stream URLs | Max 4 Stream URLs |
| Output | Video Stream URLs | Video Stream URLs | Video Stream URLs | Video Stream URLs | HDMI+CVBS+VGA | SDI+HDMI+CVBS+VGA |
| Encoding | H.265、H.264、MJPEG | H.265、H.264、MJPEG | H.265、H.264、MJPEG | H.265、H.264、MJPEG | ✘ | ✘ |
| Decoding | ✘ | ✘ | ✘ | ✘ | H.265、H.264、MJPEG | H.265、H.264、MJPEG |
