PII0801A1U-UKBK
PIISUN
| Quantity: | |
|---|---|

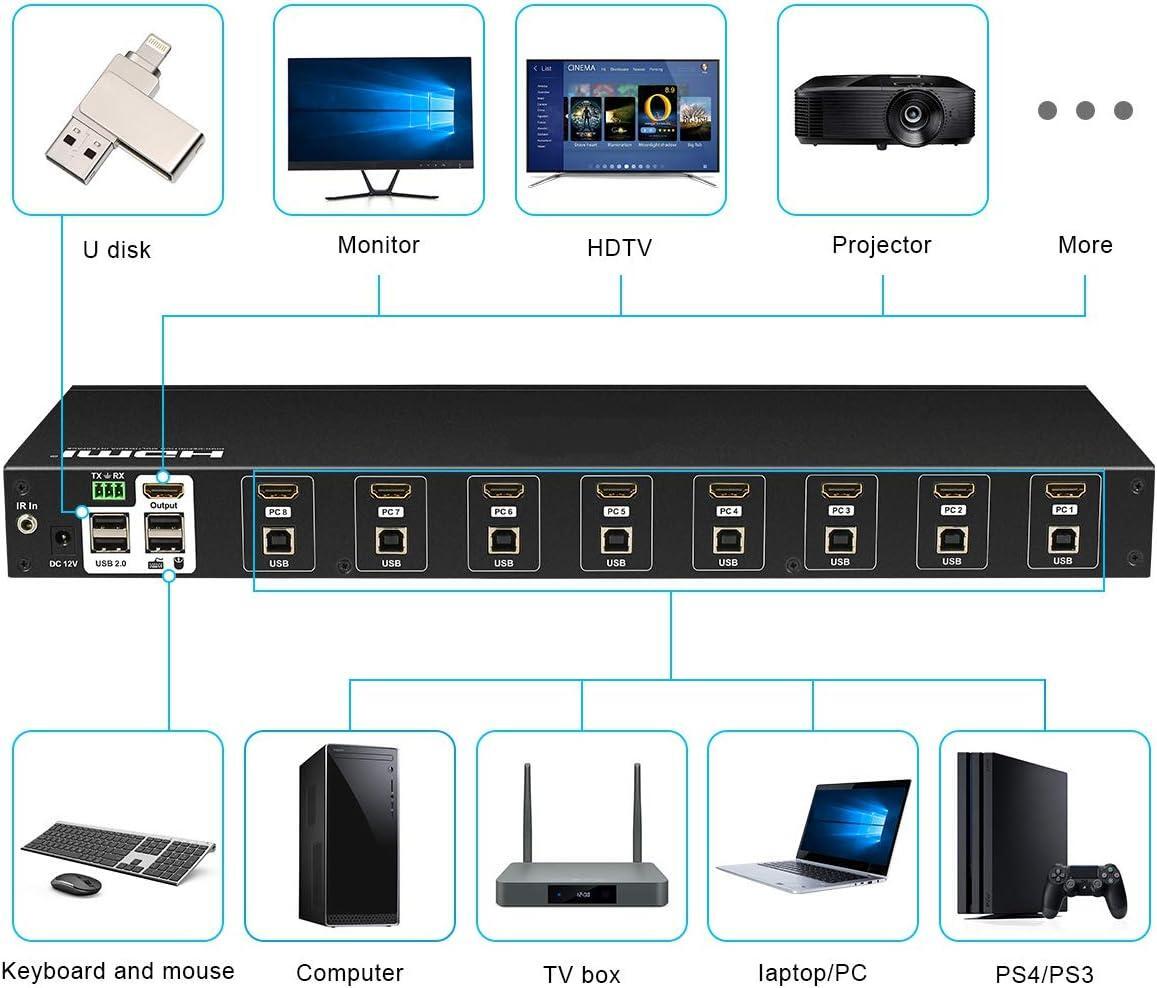

Take a giant step forward with this upgraded 8-port HDMI KVM Switch designed to deliver more inclusive and convenient use to you. This 8-in to 1-out HDMI KVM Switch is designed to console control 1-8 computers, servers, DVR/NVR, laptops and more with one single set of USB keyboard, USB mouse, and monitor. With this HDMI KVM Switch, you can switch between PCs using keyboard hot-keys, push buttons, IR remote, mouse gesture, LAN,RS232 and auto scan.
No More Complicated Networking
You don’t have to worry about controlling multiple configurations with a complex and expensive network system again. Our 8x1 HDMI KVM Switcher allows you to easily access and effectively manage multiple computers in a budget-friendly way. You can also hot-plug PCs and connect other devices without turning them off to avoid downtime.
Easy to Setup
This HDMI Switch is fast and easy to setup; it simply takes plugging the cables into their appropriate ports. There is no software required for setup and there is no need to worry about complex installation processes. It also works on virtually all hardware platforms supporting multiple operating systems.
What Separates Us from The Crowd
| 8 in 1 out | 8 in 1 out | 8 in 1 out | 16 in 1 out | 16 in 1 out | |
| 8-port kvm 4k@30hz | 8-port kvm 4k@60hz | 8-port kvm 4k@30hz with PIP | 16-port kvm 4k@30hz | 16-port kvm 4k@60hz | |
| Model SKU | PIIS0801A30 | PIIS0801A1U | PIIS0801A40 | PIIS1601A10 | PIIS1601A1U |
| Inputs | 8 HDMI inputs for up to 8 PCs | 8 HDMI inputs for up to 8 PCs | 8 HDMI inputs for up to 8 PCs | 16 HDMI inputs for up to 16 PCs | 16 HDMI inputs for up to 16 PCs |
| Outputs | 1 HDMI output for 1 monitor or 1 speaker | 1 HDMI output for 1 monitor or 1 speaker | 1 HDMI output for 1 monitor or 1 speaker | 1 HDMI output for 1 monitor or 1 speaker | 1 HDMI output for 1 monitor or 1 speaker |
| Resolution | Up to 4k@30 | Up to 4k@60 | Up to 4k@30 | Up to 4k@30 | Up to 4k@60 |
| Main differences | (Read the details below) | Upgrade the chip, improve the resolution, more stable than HKS0801A30 | No switching delay, support seamless switching; Support PIP mode | 16 inputs, connect more PCs | Upgrade the chip, improve the resolution; 16 inputs, connect more PCs |
| 2 * Rack-ears | Support cabinet installation | Support cabinet installation | Support cabinet installation | Support cabinet installation | Support cabinet installation |
| Multiple switching methods | Front panel buttons, IR signals, Keyboard hot keys, RS232 serial commands, IP control commands | Front panel buttons, IR signals, Keyboard hot keys, RS232 serial commands, IP control commands | Front panel buttons, IR signals, Keyboard hot keys, RS232 serial commands, IP control commands | Front panel buttons, IR signals, Keyboard hot keys, RS232 serial commands, IP control commands | Front panel buttons, IR signals, Keyboard hot keys, RS232 serial commands, IP control commands |
Our 8 Port HDMI Switcher comes with a remote control to switch between different devices from anywhere in the room
You can program the time interval for the auto-switching function

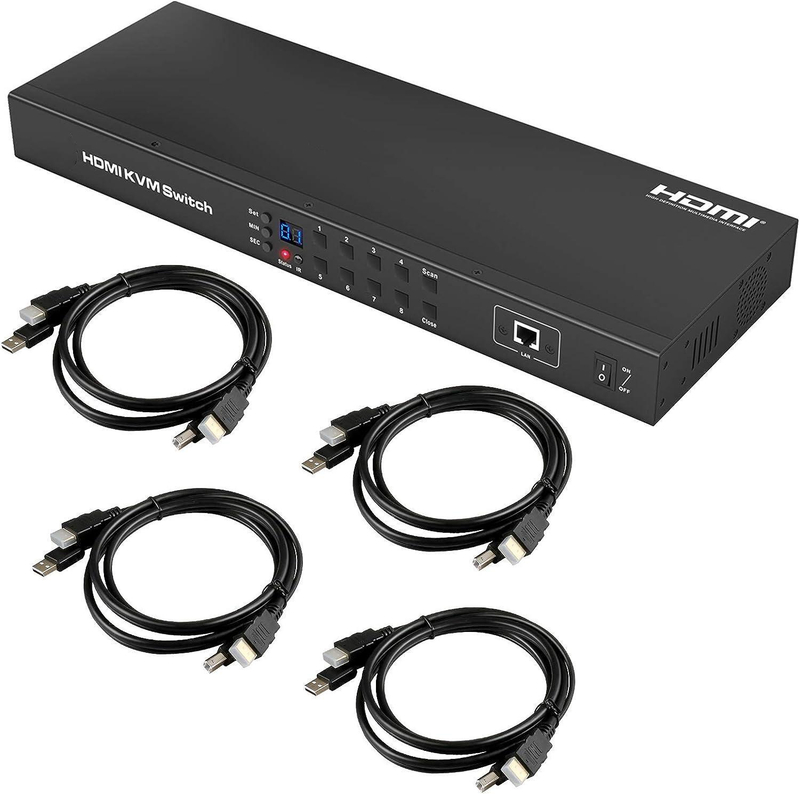

To save you money and the stress of finding matching cables, this HDMI Switch comes with 4 pieces of 5ft KVM Cables
