PII88-M
PIISUN
| Quantity: | |
|---|---|

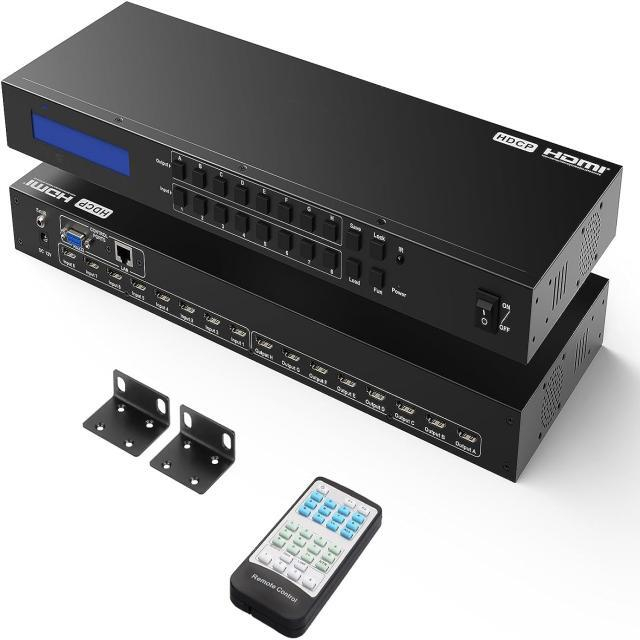

【8 in 8 out HDMI Matrix】It allows 8 HDMI source devices to cross-connect to 8 HDMI displays at the same time.You can use it as HDMI Splitter as well as HDMI Switch,becase each display can share the same input or select differient inputs.Features an LCD screen on the front panel to show you the real-time connection status.
【4k image and a Wide Range of Audio Formats】Support superior video quality up to 3840x2160@30Hz (including 1080p 3D video). It's HDCP compliant.This 4k matrix supports PCM, Dolby AC3 and DSD audio format.Common scenarios include: classrooms, auditoriums, department stores, Commercial and residential AV systems, etc.
【Smart EDID Management】With EDID management, the HDMI source player will output the best possible resolution to ensure the compatibility of all HDMI displays.
【4 control methods 】Support multiple control methods for system management including front buttons, IR remote control, RS-232 control and LAN commands.(You can turn off the beep by sending TCP/IP commands).

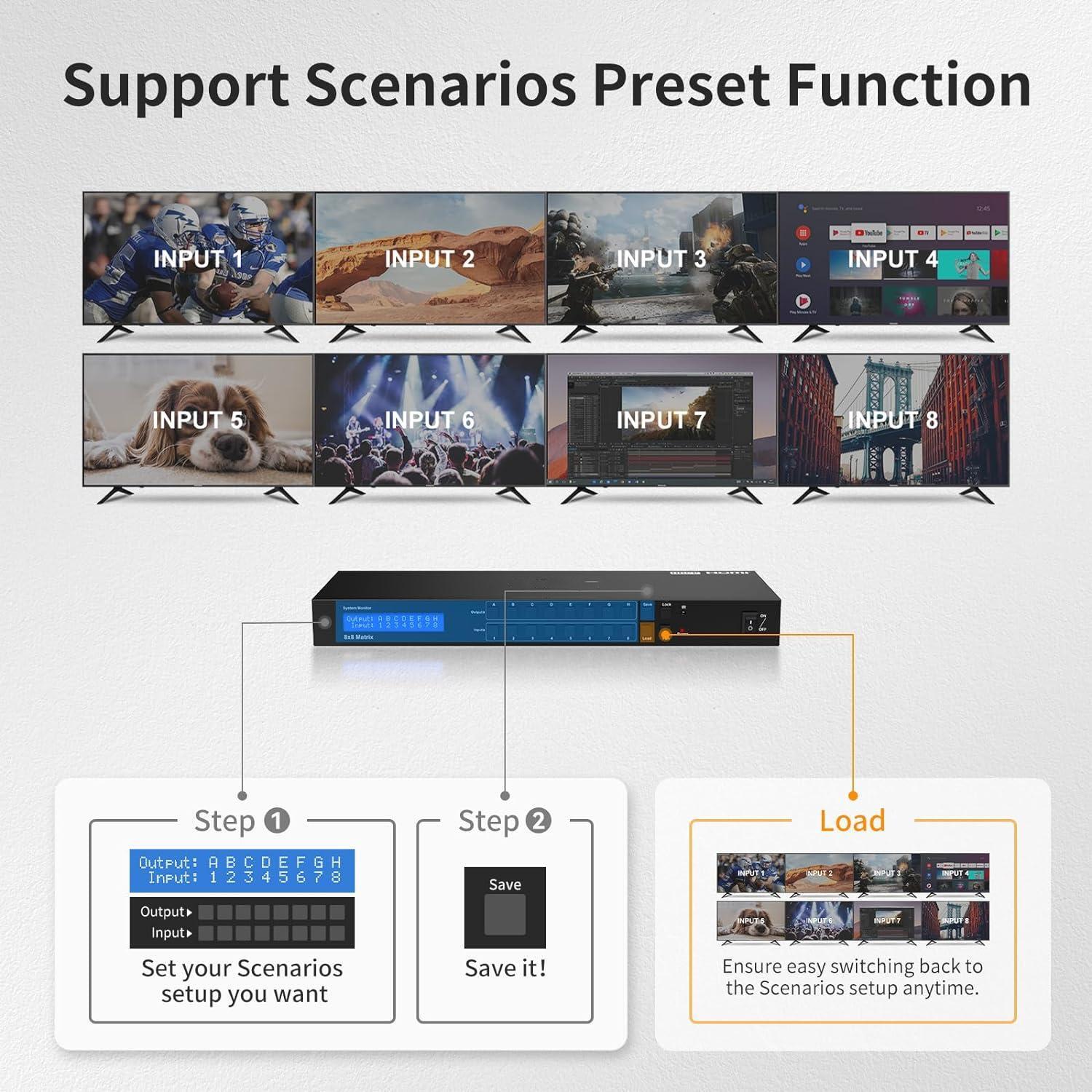

【Preset function】You can keep the usaully used connection status to 1-4,then recall it quikly as your requirement.(Please refer to the manual for details).

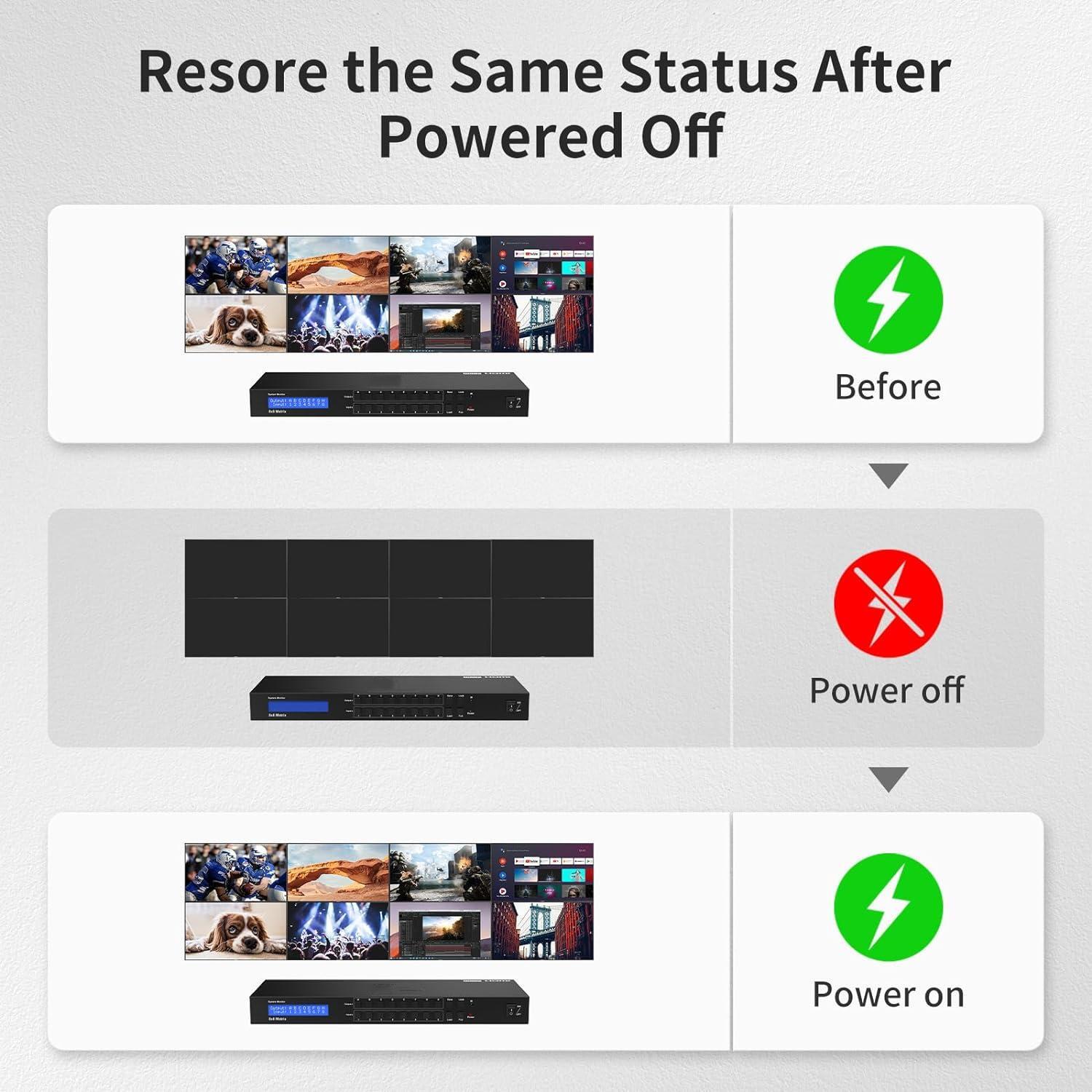

【Power Off Memory Function】It can automatically restore the previous matrix status the next time the power is turned on.
【1 year warranty】We offer you 1 year warranty from the date of order. And we offer free Tech Support.If you have any problems, please free to to let us know . PIISUN is strive to offer you a satisfying After-Sales Service.
This 8x8 HDMI Matrix can greatly facilitate your management of audio and video devices. If you have 8 4K Ultra HD sources and display devices like game consoles, streaming boxes, projectors and monitors, our HDMI Matrix can help you match your devices at will. You can choose which output device to display which input device you want, and you can also display one input device on multiple output devices at the same time, eliminating the troublesome of unplugging cables and switching devices, and greatly simplifying the device management.
Features:
The 4k HDMI matrix supports max resolution up to 3840*2160 30Hz.
Each HDMI output can share the same input or select standalone input.
Supports PCM, Dolby AC3, DTS5.1, DTS7.1, and DSD audio format.
Smart EDID management, make it compatible with most display devices.
Easy to view real-time inputs and outputs status via LCD display.
Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.
HDCP1.4 compliant. High-bandwidth digital content protection technology ensures high-definition signals for HDMI transmission.
1. HDMI Cable Max Length: 4K 30Hz , input HDMI Cable Length is MAX 196.85 Inches (5 Meters), output HDMI Cable Length is MAX 393.7 Inches (10 Meters); 1080P 60Hz , input HDMI Cable Length is MAX 393.7 Inches (10 Meters), output HDMI Cable Length is MAX 787.4 Inches (20 Meters).
2. About the TCP / IP Protocol: You can download it via te-smart web site,or send e-mail to order. We will send it to you.
3. Compatibility with Win 7: Due to the slow loading of Win 7 driver, please wait patiently when connecting to Win 7 for the first time until the USB driver is loaded.
4. About Remote Control Batteries: For the safety request by some express company, the remote control is not equipped batteries by default. Please install the CR2025 batteries before using it.
5. About Buzzer: The buzzer sound can be turned off by the control software.
Specification:
Material: Metal
Product Dimensions: 440(L) x 150 (W) x 45 (H) mm
Item Weight : 2kg
Power supply : DC 12V 2A
