PII-DECOD02
PIISUN
| Quantity: | |
|---|---|
Uses one HDMI input, one HDMI output, and one Ethernet port
Works with third-party decoders
Control via web UI
Consumes low bandwidth
Delivers content with visually lossless quality
Supports AAC audio encoding to transmit high-quality audio

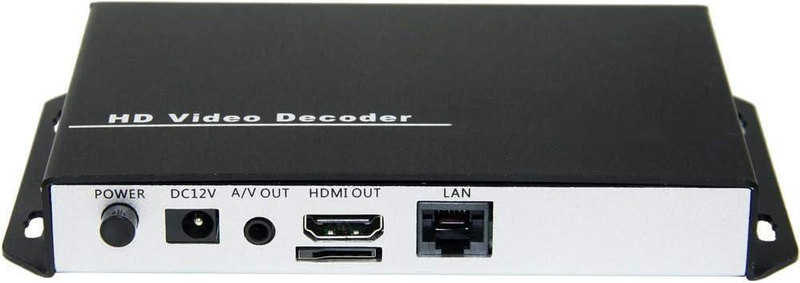

【Innovative Product with Leading Technology】 - This PIISUN IP video decoder is ideal for decoding multiple types of video streams, support multi-brand video encoders and set-top boxs as well as IP camera decoding.
【Simple Setup】 - Enter the link address of the video stream in the configuration interface of video decoder, the output video will be automatically displayed on the display.
【Multi-channel Switch】 - Support multi video streams decoding and switch the channels by IR remote control or webpage control panel, max up to 30 channels decoding or more.
【Multi-protocol Supporting】 - Support HTTP, RTSP, RTMP, HLS(M3U8), UDP, RTP, Multicast, Unitcast, FLV etc streaming protocol decoding.
【Free Lifetime Support and Service】 - All PIISUN video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we provide many kinds of customization, such as logo print, function or firmware etc customization.
| General | |
| Video Impedance | 100 Ohms |
| Analog Audio Output Impedance | 470 ohms |
| Video Format | H.264 |
| Max Audio Level | 2 Vrms |
| Latency | Low latency 180 ms (1080p at 60 Hz) |
| Supported Input Resolutions | 1920 x 1200 at 60 Hz 4:4:4 |
| Indicators | (4) LEDs; (1) Power, (1) Status, (2) RJ-45 |
| Power | (1) 5V/3A DC (Locking) (Level 6; EN62368-1) power connector POE AF mode (48V, 0.25A) |
| User Controls | (1) ID Mode button |
| Item Specifications | |
| Connectors | Input Video: (1) HDMI Type-A: Output Video: (1) HDMI Type-A; Control: (1) RJ45, 10/100/1000BASE-T Ethernet Port |
Works as Encoder or Decoder
The H.264/H.265 HDMI over IP Encoder/Decoder is an HDMI over H.264/H.265 transceiver. This means it can be used as an encoder or a decoder based on the mode selected. It features one HDMI input, one HDMI output, and one Ethernet connection for simplified integration into your AV system. In encoder mode, the HDMI input will be encoded to H.264/H.265 and sent out to the Ethernet port. In decoder mode, the H.264/H.265 data will be decoded from the Ethernet port and sent out the HDMI output.
Live Stream Media over IP
Extend AV signals as far as your network reaches. This media encoder/decoder interfaces with HDMI signals to deliver media over your IP network. It features one HDMI input, one HDMI output, and one Ethernet port for simplified integration into your AV system.
Standardized Protocols
This encoder complies with standardized protocols so that it can work with third-party decoders, such as VLC software, STB, or a media encoder in another system. This allows you to choose the most suitable devices for your AV system.
Advanced Media Codec
The encoder features both H.264 and H.265 video compressing technology. This allows it to transmit video content with visually lossless quality without consuming too much bandwidth. On top of that, the encoder supports AAC audio encoding so a high-quality audio signal can be transmitted using low bandwidth.
Optimized Control Methods
This encoder offers a web UI that enables the user to control the system through a common browser.
| Similar Items from Caratar Coder | ||||||
| Part No. | CA265-4-4K | CA265-4-4K | CA265-1S-4K | CA265-8 | CAR265-1-4K | CARD265-1-4K |
| Type | Encoder | Encoder | Encoder | Encoder | Decoder | Decoder |
| Resolution | Max 3840 x 2160 | Max 3840 x 2160 | Max 3840 x 2160 | Max 1920 x 1080 | Max 3840 x 2160 | Max 3840 x 2160 |
| Input | 4 x HDMI | 4 x SDI | 1 x HDMI | 8 x HDMI | Max 4 Stream URLs | Max 4 Stream URLs |
| Output | Video Stream URLs | Video Stream URLs | Video Stream URLs | Video Stream URLs | HDMI+CVBS+VGA | SDI+HDMI+CVBS+VGA |
| Encoding | H.265、H.264、MJPEG | H.265、H.264、MJPEG | H.265、H.264、MJPEG | H.265、H.264、MJPEG | ✘ | ✘ |
| Decoding | ✘ | ✘ | ✘ | ✘ | H.265、H.264、MJPEG | H.265、H.264、MJPEG |
