PII-DECOD01
PIISUN
| Quantity: | |
|---|---|

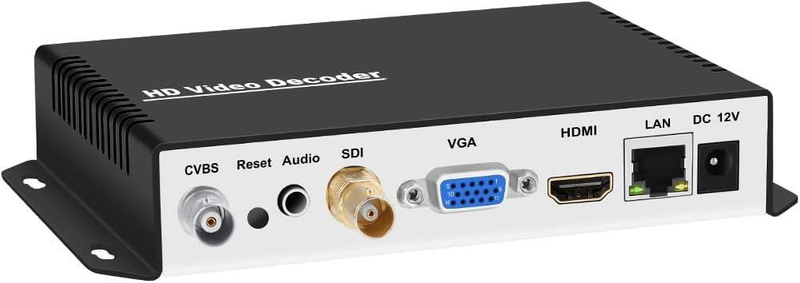

H.265/H.264 4K Video Decoder is our newest professional HD audio & video decoding device with powerful functionality. It can decode network stream by HTTP RTSP UDP RTMP Protocols and equipped with one HDMI and one CVBS and stereo audio output for local display. Its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, IPTV, advertisement display satellite and terrestrial digital TV etc. Features Support max 3840x2160P@30 or 1920x1080P@60 network stream decoding Support RTMP RTSP UDP HTTP HLS FLV protocols Support H.265 H.264 video stream decoding Support HDMI and CVBS local output Support 32 channels stream settings for decoding selection
Features:
Visual input (Preview)
HDMI video input, UVC Camera input or NDI®|HX streams input.
NDI®|HX streams output, HDMI video out
H.264/H.265 Encode & Decode, up to 1920x1080P_H.265@60fps Encode. And H.265 Main Profile, Level 4.1 Decode
HDMI-embedded & Line-in Audio input
AAC, MP3, MP2, PCMA audio encoding
Support video recording via USB, in the format of MP4/TS/FLV/MKV/MOV
Bit rate is adjustable 500kbit/s -20Mbit/s
Support HTTP, HLS(m3u8), RTP/UDP Unicast, Multicast, RTSP, RTMP/RTMPS, ONVIF, SRT
Support inserting Logo, Text, Mosaics and Time Display to the video
Support output displayed video resolution and frame rate setting (max 1920x1080P@60hz)
Support HDCP and HD blue-ray
Flexible and friendly webpage control
Support ROI (Region of Interest), up to 8 regions
H5 Player
Video Rotator: 0 degree/90 degrees/180 degrees/270 degrees
Stable and effective, support 7 x 24h working time
| Input | Video stream address (Max 4 channels) |
| Video | Decoding H.265, H.264 |
| Audio Decoding | AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 |
| Video Resolution | Max 3840X2160P input and output, output resolution is adjustable |
| Output Video | SDI(audio build-in), HDMI(audio build-in), CVBS, VGA output simultaneously |
| Output Audio | SDI audio, HDMI audio, external audio(3.5mm jack) output simultaneously |
| Streaming Protocol | NDI, SRT, HTTPS, UDP, RTP, RTSP, RTMP, HLS(M3U8), ONVIF, FLV, Unitcast etc |
| Control Mode | Web page control, support wide area network remote management |
| OSD Setting | Support logo, text, scroll text etc on screen display settings |
| Video Processing | Resolution, Video Color, Brightness, Contrast, Saturation, Crop, Rotate, Hue, Scaling etc |
| Display Mode | 1P, 4P(Quarter), 4P(3L1R), 4P(1L3R), 4P(3T1B), 4P(1T3B) |
| Upgrade | Support upgrade the device by uploading new firmware |
| Transmission | Ethernet Cable(1000 BASE-T) |
| Customization | Provide many kinds of OEM, such as logo, function, language etc |
| General | 6.7''x4.9''x1.2''(Size), 0.64lbs(Weight), Aluminum shell(Material) |
| Similar Items from Caratar Coder | ||||||
| Part No. | CA265-4-4K | CA265-4-4K | CA265-1S-4K | CA265-8 | CAR265-1-4K | CARD265-1-4K |
| Type | Encoder | Encoder | Encoder | Encoder | Decoder | Decoder |
| Resolution | Max 3840 x 2160 | Max 3840 x 2160 | Max 3840 x 2160 | Max 1920 x 1080 | Max 3840 x 2160 | Max 3840 x 2160 |
| Input | 4 x HDMI | 4 x SDI | 1 x HDMI | 8 x HDMI | Max 4 Stream URLs | Max 4 Stream URLs |
| Output | Video Stream URLs | Video Stream URLs | Video Stream URLs | Video Stream URLs | HDMI+CVBS+VGA | SDI+HDMI+CVBS+VGA |
| Encoding | H.265、H.264、MJPEG | H.265、H.264、MJPEG | H.265、H.264、MJPEG | H.265、H.264、MJPEG | ✘ | ✘ |
| Decoding | ✘ | ✘ | ✘ | ✘ | H.265、H.264、MJPEG | H.265、H.264、MJPEG |
More customization, welcome discuss on line sales
