CUH141T-H2 KIT
PIISUN
| Quantity: | |
|---|---|
Custom
HDBaseT 4port 8port 10port Splitter Kit with PoH, 4K 40 meter, 1080P 70 meter

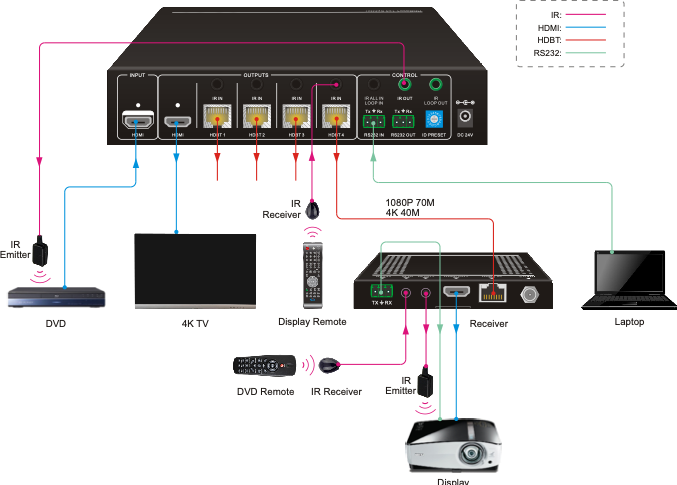

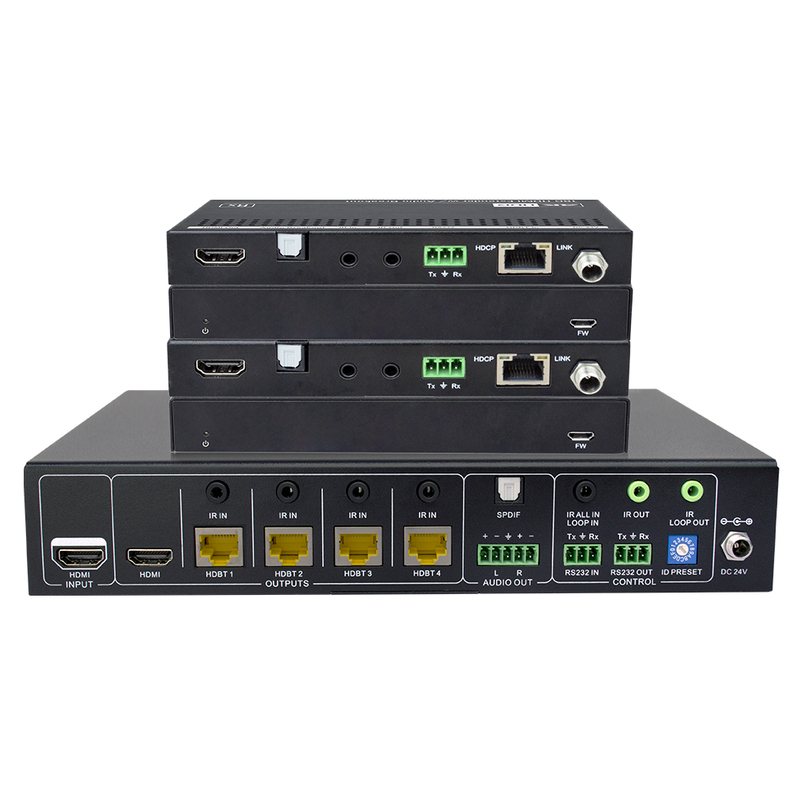

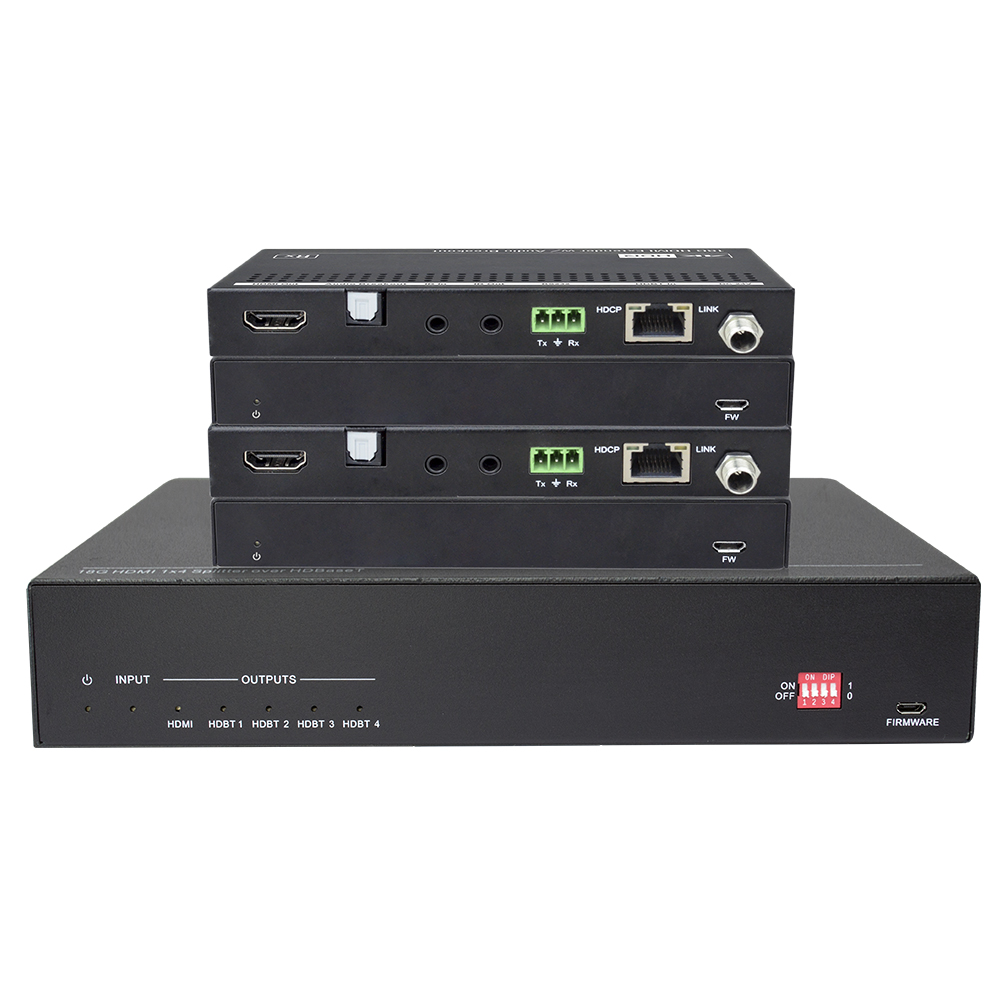

Splits a single HDMI input to four HDBaseT outputs and one HDMI loop output.
Supports video resolutions up to 4K@60Hz 4:2:0.
Extends 1080p signals on each output to distance up to 229 feet (70 meters) and 4K signals to distance up to 131 feet (40 meters) over a CATx Ethernet cable.
Supports the Power over HDBaseT (PoH) feature, allowing the HDBaseT receivers to be powered by the splitter over the Ethernet cables.
Supports bidirectional IR and RS232 pass-through and loop out.
Smart EDID management. Features DIP switch to select the output resolution to match the connected displays.
Fully compliant with the HDMI 1.4 specification.
Supports HDCP pass-through management.
Supports firmware update.
Intuitive indicator for connection status.
| Video Input | |
| Input | (1) HDMI |
| Input Connector | (1) Female type A HDMI |
| Input Video Signal | HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:2:0 |
| Video Output | |
| Output | (1) HDMI; (4) HDBT |
| Output Connector | (1) Female type A HDMI; (4) RJ45 |
| Output Video Signal | HDMI, HDBaseT |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:2:0 |
| HDBT Output Resolution | Up to 4Kx2K@60Hz 4:2:0 |
| Control | |
| Control port | (1) EDID; (1) ID PRESET; (1) IR ALL IN/LOOP IN; |
| (1) IR OUT; (1) IR LOOP OUT; (1) RS232 IN; | |
| (1) RS232 OUT | |
| Control Connector | (1) 3-pin DIP switch; (1) DIP switch; (3) 3.5mm mini jacks; (2) 3-pin phoenix connectors |
| General | |
| HDMI Standard | HDMI 1.4 with HDCP 2.2 |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080p ≤229 feet (70 meters) |
| 4K ≤131 feet (40 meters) | |
| Operation Temperature | -10 ~ +55ºC |
| Storage Temperature | -25~ +70ºC |
| Relative Humidity | 10% ~ 90% |
| AC Adapter Input Power | 100V~240V AC, 50/60Hz |
| Input Power | 24V DC 2.71A |
| Power Consumption | 45W (Max) |
| Dimension (W*H*D) | 220mm x 44mm x 148mm |
| Net Weight | 725g |
| Input | |
| Input Signal | (1) IR; (1) RJ-45; (1) RS232 |
| Input Connector | (1) 3.5mm Mini Jack; (1) RJ-45; (1) 3-pin Terminal Block |
| Audio | Digital audio, transmit through HDMI audio |
| Output | |
| Output | (1) HDMI; (1) IR; (1) RS232 |
| Output Connector | (1) HDMI female; (1) 3.5mm mini jack; |
| (1) 3-pin Terminal Block | |
| General | |
| Resolution Range | Up to 4Kx2K@60Hz 4:2:0 |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080p ≤229 feet (70 meters) |
| 4K ≤131 feet (40 meters) | |
| Bandwidth | 10.2Gbps |
| HDMI Standard | HDMI 1.4 with HDCP 2.2 |
| Operation Temperature | -10 ~ +55ºC |
| Storage Temperature | -25~ +70ºC |
| Relative Humidity | 10% ~ 90% |
| AC Adapter Input Power | 100V~240V AC, 50/60Hz |
| Input Power | 24V DC 2.71A |
| Power Consumption | 11W (Max) |
| Dimension (W*H*D) | W115mm x H16mm x D84mm |
| Net Weight | 150g |
Note: Please adopt quality CAT Ethernet cable compliant with CAT6e or higher standard for reliable transmission.
| HDBaseT Splitter | l 1x SUH141T HDBaseT 1×4 Splitter |
| l 2x Mounting Ears with 4 Screws | |
| l 4x Circular Plastic Cushions | |
| l 1x 3-pin to 3-pin RS232 Cable (for RS232 loop out cascading) | |
| l 1x 3-pin to DB9 RS232 Cable | |
| l 1x 3.5mm Audio Cable (for IR loop out cascading) | |
| l 4x IR Receivers | |
| l 1x IR Emitter | |
| l 1x Power Adaptor (24V DC 2.71A) | |
| HDBaseT Receivers | l 4x TPUH411R HDBaseT Receivers |
| l 8x Mounting Ears with 8 Screws | |
| l 16x Plastic Cushions | |
| l 4 x 3-pin to DB9 RS232 Cable | |
| Others | l 4x IR Emitters |
| l 1x User Manual |
