PII4K-Muitl
PIISUN
| Quantity: | |
|---|---|

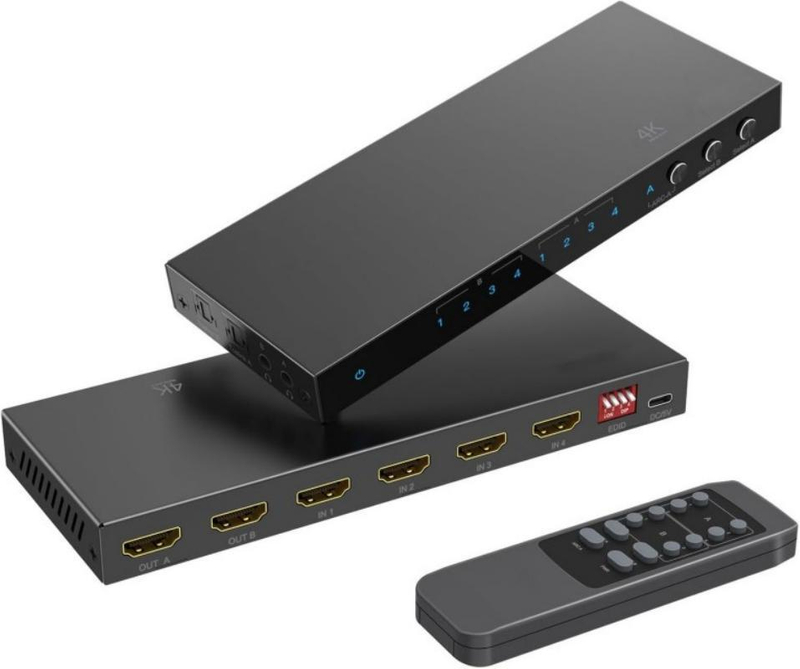

PIISUN HDMI multi viewer supports high resolution up to 4K@30Hz 4:4:4 8bit. It provides 4 HDMI in and 1 HDMI out, displays 4 HDMI sources on one screen. It outputs any input HDMI signal at 4K or 1080p high resolution.
Watch up to 4 shows simultaneously: The 4 in 1 out quad HDMI multi viewer supports 5 displays modes, including original mode, dual-view, master mode, PIP mode and quad mode. It supports seamless switching between 4 HDMI sources at original mode. ( Note: Audio supported: LPCM 2CH Only.) Plug and play, no driver needed.
PIISUN multi-viewer supports 3 control ways, it supports IR remote ( IR extender cable is provided), RS232 for API control and button switch. The audio is selectable, or you can choose to mute.
The 4K HDMI swticher supports HDCP 1.4, highly compatible with HDMI devices such as Xbox, PS3, STB, PS4, laptops, blu-ray, DVD players, HDTV, projectors etc. Perfect choice for bar, video conferences, stock market monitoring, surveillance center, exhibition hall display, TV wall etc. Plug and play, no driver needed.
The Multi-Viewer is certificated by CE, FCC. It is designed with ESD protection, prevent from thunder strikes and static. We assure 3-year-warranty and life-time customer service. If any question, please feel free to contact us.
If you need a large or long-term order, please contact us through the store homepage/contact seller. We will offer discounts on a certain amount of products.
| TECHNICAL | |
| 4 x HDMI In, 1 x HDMI Out, 1 x RS232, 1 x IR Ext., | |
| Input/Output Port | 1 x DC 12V IN |
| Input/Output Signal Type | Input/Output: HDMI with 4K@30Hz 4:4:4 8bit, HDCP 1.4 |
| Input/Output Resolution | CUSTOMIZATION |
| 800×600@60Hz, 1280×960@60Hz, 1280×1024@60Hz,1360×768@60Hz, 1366×768@60Hz, 1600×900@60Hz, 1600×1200@60Hz , 3840×2160@30Hz | |
| Input/Output Resolution | SMPTE: |
| 1280x720P@50Hz, 1920x1080P@60Hz, 3840×2160@30Hz, | |
| Audio Format | Stereo |
| Maximum Data Rate | 10.2 Gbps |
| Control Method | IR Remote, Front Panel Buttons, RS232 (API Commands) |
| GENERAL | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
PIISUN Technolgy has been evolved to a solution provider in the online market of Pro AV industry.
Since established in 2015, PIISUN has been dedicated to providing professional and reliable audio and video products, including extenders, splitters, switchers and matrixes.
