CC51TS
PIISUN
| Quantity: | |
|---|---|
Custom

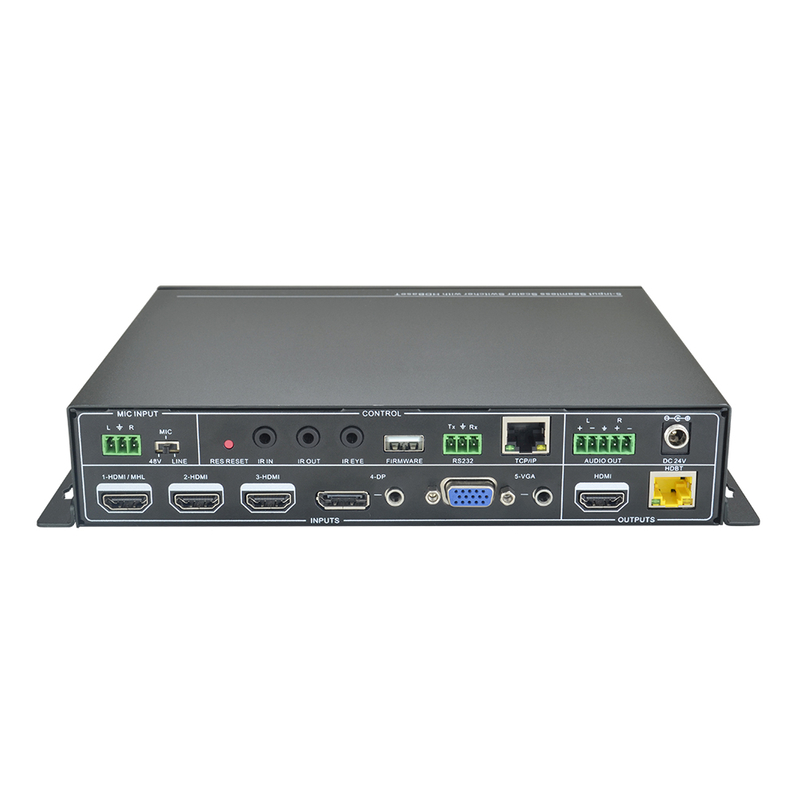

HDMI 1.4 5x1 Presentation Scaler Switcher with Audio Extraction, 1x HDMI/MHL, 2x HDMI, 1x DP, 1x VGA Video Signal Input and 1x HDMI output 1x HDBaseT Output ( Mirrored Outputs )
The Scaler Switcher is a compact mini scaler switcher with 5 video inputs (1 HDMI/MHL, 2 HDMI, 1 DP, and 1 VGA) and 3 audio inputs (1 DP external audio, 1 VGA auxiliary audio, 1 MIC audio). The VGA input supports VGA, YPbPr and C-video, so the scaler switcher is compliant with multiple video signals.
The Scaler Switcher scales & switches any video signal to HDMI output and HDBaseT output (supports PoH and connects to an HDBaseT Receiver, up to a maximum transmission distance of 70 meters.
With 1 IR IN, 1 IR OUT & 1 RS232, the IR & RS232 signals can be transmitted bi-directionally between the Scaler Switcher and the HDBaseT Receiver.
In addition, The Scaler Switcher can be controlled via front panel buttons, IR remote, RS232 commands and GUI.
FEATURE:
Compliant with HDMI1.4& HDCP2.2.
Supports CEC, with commands to enable/disable this function.
Supports video source auto-switching function.
Bi-directional IR & RS232 control.
Output resolutions selectable to assure preferred output, and supports various output resolutions, such as 1920×1200, 1920×1080, 1600×1200, 1600×900, 1360×768, 1280×800, 1280×720, 1024×768.
VGA video supports C-video, YPbPr and VGA.
48V phantom power to support condenser microphone.
MIC port supports balance/unbalance signal, suppress the external noise effectively.
3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone.
Controllable via buttons, IR remote, RS232 & GUI.
Powerful OSD function.
Supports online software upgrading.
| Video | |
| Video input | (1) HDMI/MHL; (2) HDMI; (1) DP; (1) VGA |
| Video Input Connector | (3) female HDMI; (1) DisplayPort; (1) female VGA (15-pin) |
| Input Video Signal | HDMI, DP, YPbPr, C-video, VGA |
| Video Output | (1) HDMI; (1) HDBaseT |
| Video Output Connector | (1) female HDMI; (1) RJ45 |
| Output Video Signal | HDMI; HDBaseT |
| Output Resolution | 1920×1200, 1920×1080, 1600×1200, 1600×900, 1360×768, 1280×800, 1280×720, 1024×768. |
| Standards | Compliant with HDMI 1.4 & HDCP2.2 |
| Audio | |
| Audio Input | (1) stereo audio input for DP; (1) stereo audio input for VGA; (1) Microphone audio |
| Audio Input Connector | (2) 3.5mm Stereo jacks; (1) 3-Pin phoenix connector |
| Audio Input Impedance | >10kΩ |
| Audio Output | (1) Dual-Mono analog audio |
| Audio Output Connector | (1) 5-Pin phoenix connector |
| Audio Output Impedance | 70Ω |
| Frequency Response | 20Hz~20K Hz |
| Stereo Channel Separation | >80dB @1KHz |
| Control Part | |
| Control port | (1) IR IN; (1) IR OUT; (1) IR EYE; (1) RS232; (1) TCP/IP |
| Control Connector | (3) 3.5mm mini jack; (1) 3-Pin phoenix connectors; |
| (1) RJ45 | |
| General | |
| Transmission Distance | 1080P≤70m (Cat6) |
| Operation Temperature | 0 ~ +50ºC |
| Storage Temperature | -10 ~ +55ºC |
| Relative Humidity | 10% ~ 90% |
| Power Supply | DC24V 2.71A |
| Power Consumption | 27W (Max) |
| Dimension (W*H*D) | 220mm x 44mm x 172.5mm |
PACKING LIST:
1 x CC51TS Compact Scaler Switcher
2 x Mounting Ears with 4 Screws
4 x Plastic Cushions
1 x IR Remote
1 x IR Receiver (with carrier wave)
1 x IR Emitter
1 x 3-Pin Phoenix Connectors
1 x 5-Pin Phoenix Connector
1 x Power Adapter (24VDC,2.71A)
1 x RS232 Cable (3-Pin to DB9)
1 x VGA Converting Cable (VGA to YPbPr)
1 x User Manual
