VGA USB KVM Splitter/Extender with Stereo Audio via CAT5 to 1,000 Feet

USB KVM Splitter/Extender allows up to eight remote users (8 USB keyboards, mice, and VGA monitors) to access one USB computer (PC, SUN, MAC) located up to 1,000 feet away using CAT5/5e/6 cable. Audio can be broadcasted to self-powered stereo speakers at the local unit and each remote location.

The PIISUN VGA USB KVM Splitter/Extender system has two components: the  unit, which connects to a computer and provides local keyboard, monitor and mouse connections; and an  remote unit  for each remote monitor, keyboard, and mouse. The units are interconnected by CAT5/5e/6 cable.

VGA USB KVM Splitter/Extender allows up to eight remote users (8 USB keyboards, mice, and VGA monitors) to access one USB computer (PC, SUN, MAC) located up to 1,000 feet away using CAT5/5e/6 cable. Audio can be broadcasted to self-powered stereo speakers at the local unit and each remote location.

The PIISUN VGA USB KVM Splitter/Extender system has two components: the PIISUN broadcast unit, which connects to a computer and provides local keyboard, monitor and mouse connections; and an XTENDEX® remote unit (ST-C5USBV(U/A/UA)-R-1000S) for each remote monitor, keyboard, and mouse. The units are interconnected by CAT5/5e/6 cable.

• Industry-leading ultra-high resolutions up to 2048x1536.

• Compatible with USB computers (PC, SUN, MAC).

• Access one computer from multiple locations.

• Provides local KVM access.

• The local USB ports can also be used to connect printers, scanners, security cameras, etc

• Multiple users can enter data into the same program.

• Easily expandable. Add remote units as you add users.

• Supports DDC emulation and mixing.

• DDC mixing provides a table of resolutions that are common to each connected monitor).

• Compliant with USB 2.0 (low/full speed) standards.

• Automatically adjust video quality and color skew for crystal clear video with longer cables.

• Supports Plug-n-Play specifications.

• Built-in surge protection.

• Optional support for remote USB touch screen monitors, CAC card readers, or interactive whiteboards.

• High quality, rugged steel construction with durable powder coat finish.

• Flash upgradeable.

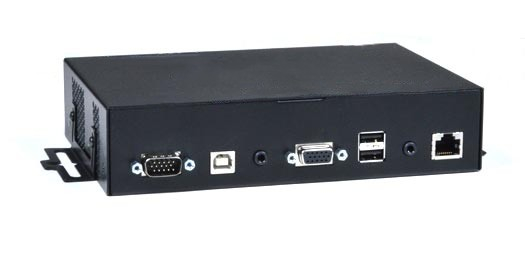

Local Unit (Splitter)

Host Connection

• One male 15-pin HD connector.

• Input impedance: 75 Ohms.

• One female USB Type B connector.

• One female 3.5mm stereo audio connector (audio in).

• Supports a USB computer (PC, SUN, MAC).

• Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12/13.

• Optional support for remote USB touch screen monitors, CAC card readers, or interactive whiteboards

• Must use remote units with additional USB port

Local Access

• Crisp and clear 2048x1536 video resolution.

• One female 15-pin HD connector.

• One 3.5mm stereo audio plug (audio out).

• Two female USB Type A connectors.

• Connect any type of USB device – fully transparent USB connection.

• USB maximum data rate: 12 Mbps.

Audio

• Frequency response: 20 Hz to 20 kHz, ±1 dB.

• Signal-to-Noise Ratio (SNR): 76 dBA.

• Total Harmonic Distortion and Noise (THD+N): 0.017%.

• Stereo crosstalk: -70 dB.

• Input impedance: 10k Ohms.

• Line level output; supports multimedia speakers.

• CD quality output.

• Maximum I/O levels for audio: 3.1vp-p (line level).

Cables

• 3-foot VGA cable included.

• 3-foot audio cable included.

• 1-meter (3.28 ft) USB Type A male to Type B male cable included.

• 5-foot CAT5 patch cable and DB9F-RJ45F adapter included for firmware upgrade.

• Use CAT5/5e/6 solid UTP/STP straight through cable for TIA/EIA-568B wiring terminated with standard Rj45 connectors (not included).

Power

• 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included).

Dimensions (WxDxH)

• 4-Port: 7.35x5.0x1.09 in (187x127x28 mm).

• 8-Port: 7.35x5.0x1.7 in (187x127x43 mm).

Environmental

• Operating temperature: 32 to 100°F (0 to 38°C)

• Storage temperature: -22 to 140°F (-30 to 60°C)

• Operating and storage relative humidity: 5 to 90% non-condensing RH.

Regulatory approvals

• CE, RoHS.

• TAA compliant

Warranty

• Two years.
