POP-AS0028
CARATAR
| Quantity: | |
|---|---|
| Model Number | poe 12v 802.3af splitter | ||||
|---|---|---|---|---|---|
| Brand Name | caratar | ||||
| ODM | Support customization | ||||
| Small Orders | Accepted | ||||
Customization Active 802.3af/at/bt Poe Splitter 30W 60W 90w PoE 48V To 12V industrial Isolated PoE Splitter
| Hardware Interface | Ethernet |
| Compatible Devices | Desktop |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gigabits Per Second |
PoE Power Supply Adapter for Frame Power Module (FPM)

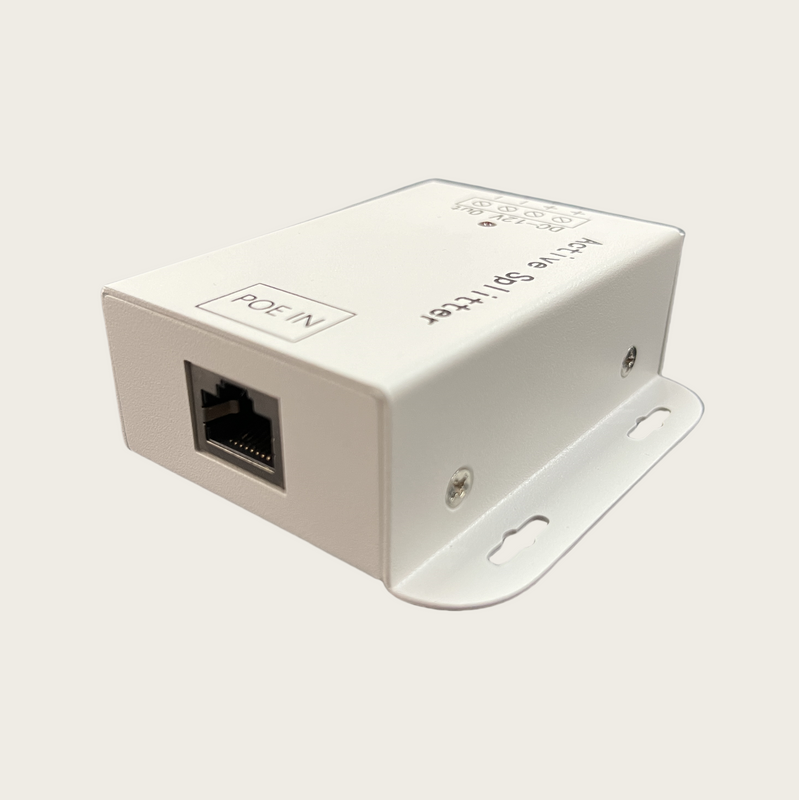

This covers the external PoE adapter/active power splitter to be used with the Frame Power
Module (FPM). This adapter aims to power one or two Frame Power Module from an ethernet cable.
We need a device that receives PoE from a RJ45 socket and delivers DC power through a Terminal
block (Screw terminal or spring-loaded terminal) for wires.
Electrical Specifications
2.1 Input
Minimum parameter 802.3af (802.3at Type 1), PoE
Rated voltage 44,0V - 57,0V
2.2 Output
Output Voltage 12VDC
Voltage tolerance ± 5%
Output current 250mA (0.25A) minimum
Output power 3W minimum

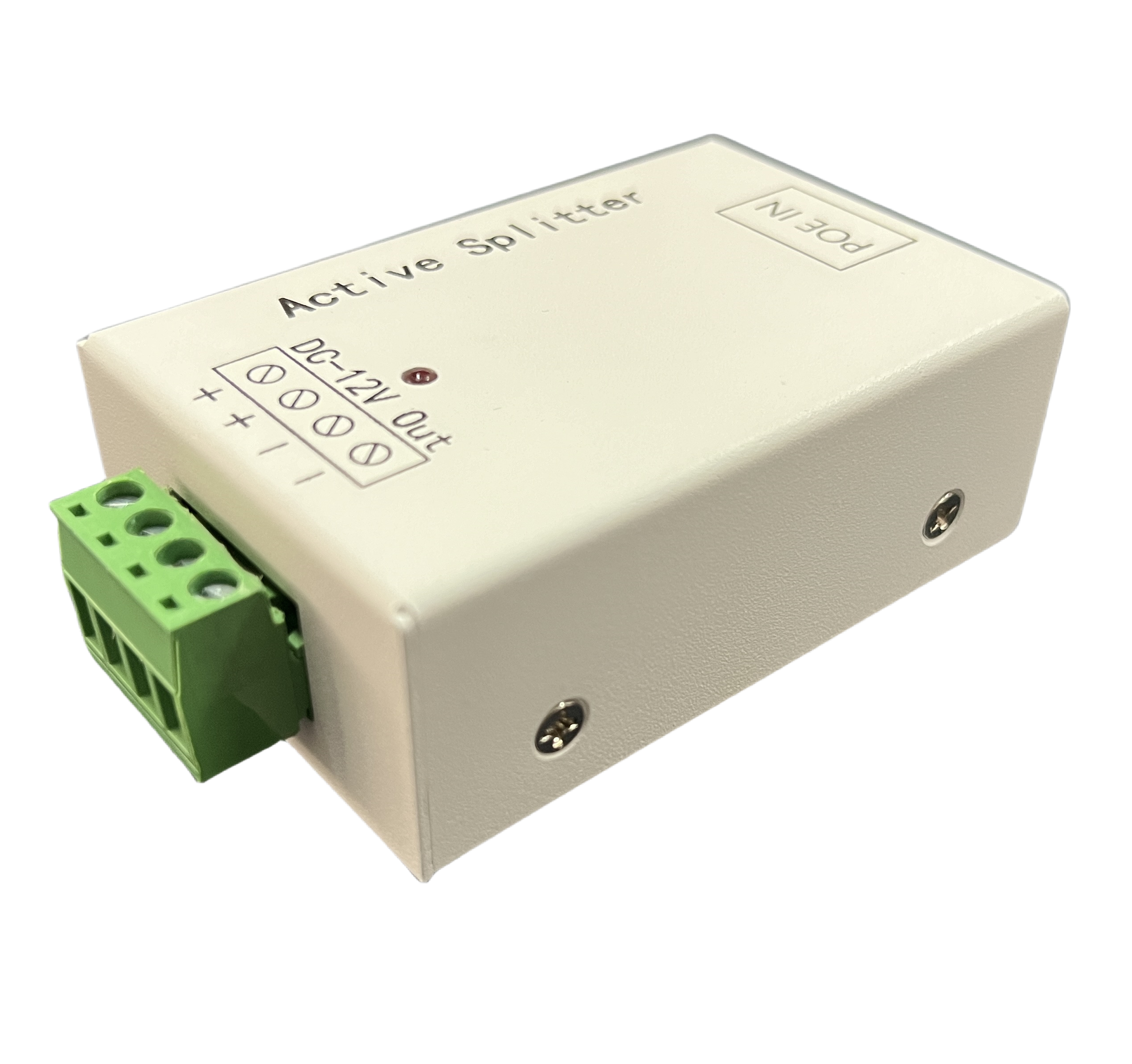

The best-case scenario is a device that contains RJ45 PoE input and screw terminals for output
DC voltage,
In the case of an active power splitter; Apart from the DC output connector, the device can
also contain an output terminal for passive ETH - the latter connection will not have influence
on the device since it will not be used.
On this case, a pluggable adaptor for discrete wires, clearly marked with + and -, must be used.
Environmental
Operating temperature: 0ºC-40ºC (at max load, no derating)
Similar product
Caratar is a professional POE switch manufacturer. Self-research and produce Active PoE , POE splitter, POE module, POE power supply module and etc. Aiming to become leading company in POE fields. We occupied the complete and scientific quality management system. The integrity, strength and quality has been gained lots of admire from industry. Welcome you all come to visit, guidance and business negotiation. POE Injector, POE Splitter, POE Extender etc support different customization
