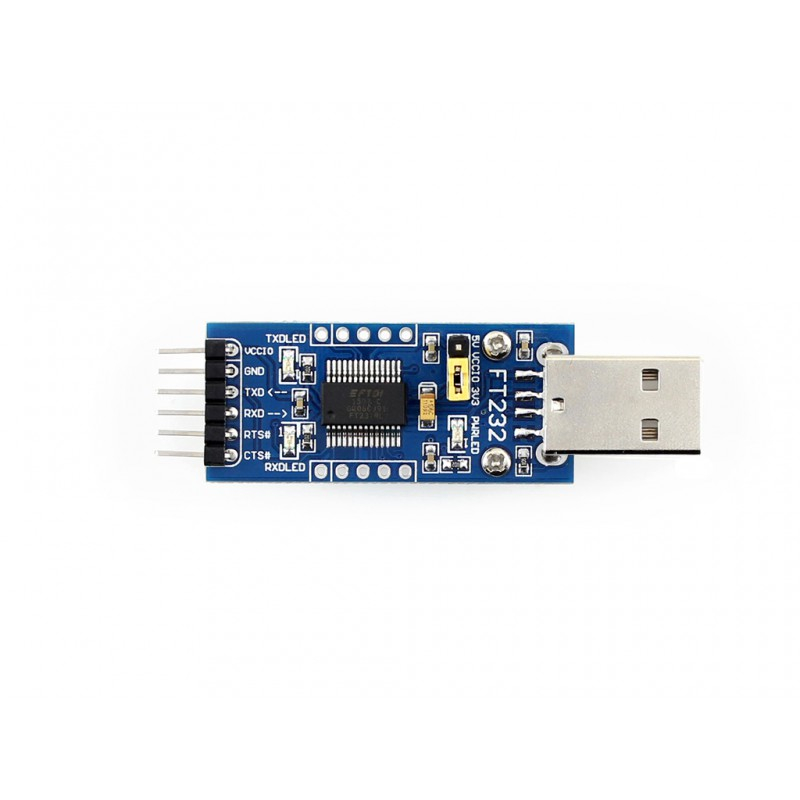

The FT232 USB UART Board Type A is a USB to TTL UART communication module. It allows you to connect devices with TTL-level UART interfaces to your computer via a USB port.
This communication module is based on the FT232RL USB to UART converter chip, which provides reliable and high-speed communication between your computer and TTL-level UART devices. It supports data rates up to 3 Mbps and has built-in protection against electrostatic discharge.
The FT232 USB UART Board features a USB Type-A connector for easy connection to your computer. It also has a 6-pin header with TTL-level UART signals, including RX (receive), TX (transmit), RTS (request to send), CTS (clear to send), DTR (data terminal ready), and GND (ground).
This communication module is easy to use and requires no external power supply. It can be powered directly from the USB port of your computer. It also comes with drivers and software for easy installation and configuration.
The FT232 USB UART Board is compatible with various operating systems, including Windows, Mac, and Linux. It is suitable for a wide range of applications, such as serial communication, microcontroller programming, and debugging.
Overall, the FT232 USB UART Board is a reliable and convenient solution for connecting TTL-level UART devices to your computer. It provides a seamless and efficient way to communicate with UART devices and is suitable for both hobbyist and professional use.
Original FT232RL onboard
Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
3 LEDs: TXD LED, RXD LED, POWER LED
Functional Pins
TXD, RXD, RTS#, CTS# : connected to the onboard soldered pinheaders
The other Pins : accessable on the drill holes (separate pinheaders are also provided for easily connecting to user system, the pitch is compatible with bread boards)
In the case of working with a MCU:
VCCIO ↔ 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
GND ↔ GND
TXD ↔ MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
RXD ↔ MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
RTS ↔ MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
CTS ↔ MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)
Supported Different customization if you need, talk more with sales directly please
