C232HD-EDHSP-0
PIISUN
| Quantity: | |
|---|---|

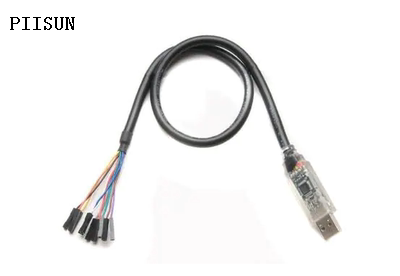

USB to Hi-Speed UART Serial Adapter Cable w/Embedded Electronics, LEDs, 5V
Data Rates: 12Mbaud
USB Speed: High Speed (480Mbps)
Interfaces: UART
USB Connector: Type A
End Connector: 10 way 0.1" female pin headers
Cable Length: 1.8m
Cable Details: 10 core, 6.5mm UL2464 24 AWG
Packages: N/A
Channels: 1
I/O Voltage: 5V
USB Class: FTDI Drivers
Virtual Com Port: Yes
Max Power Output: +5V / 450mA
FTDI Internal IC: FT232H
Operating Temperature: -40°C to +85°C
The C232HM-EDHSL-0/C232HD-EDHSP-0, USB to UART cable, is CE, FCC and UKCA approved.
UART signalling with +3.3V digital level signals. Maximum power output of 200mA @ 5VDC on VCC
The integrated FT232H IC handles all the USB signalling and protocols, facilitating rapid implementation and lowering engineering overheads.
The cables, which are 1.8m long, can cope with data transfer rates of up to 12 Mbaud.

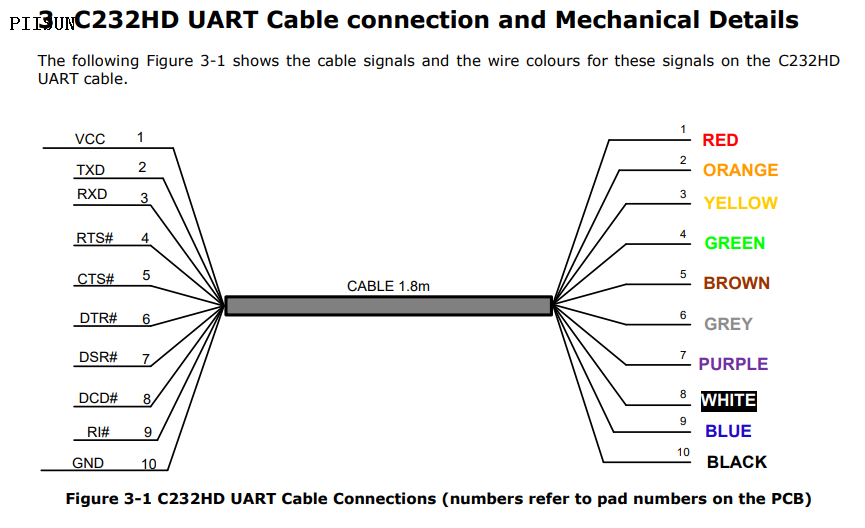

The cable incorporates FTDI's FT232H USB to UART interface IC device which handles all the USB signalling and protocols. It provides a fast, simple way to connect devices with 3.3 volt digital interfaces to USB. The digital interface of the cable is made up of ten individual wires which are terminated with single pole connectors which can be connected next to each other on a male header. The cables digital interface logic is 3.3 volts.
· Data transfer rate up to 12 Mbaud
· single channel USB 2.0 Hi-Speed to UART IC
Communications & Networking
• Interfacing MCU / PLD / FPGA based designs to USB
• USB Medical applications
• Rapid USB integration into existing electronic systems
• Prototyping platform for USB interface on new systems
• USB to RS232 / RS422 / RS485 Converters
• USB Instrumentation
• Set Top Box PC - USB interface
• USB Digital Camera Interface
• USB Hardware Modems • USB Wireless Modems
• USB Bar Code Readers
• USB Industrial Control
• Upgrading Legacy Peripherals to USB
The C232HD-EDHSP-0/C232HD-EDHSP-0 UART cable requires USB drivers

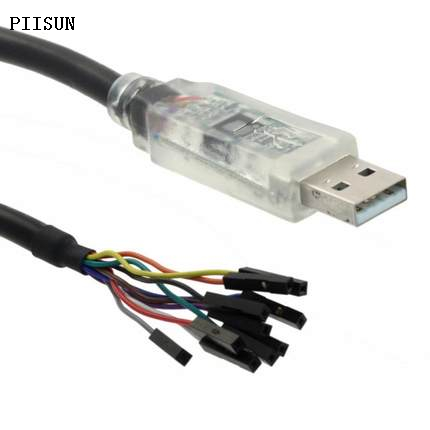

The USB 2.0 Hi-Speed to UART cable incorporates FTDI’s FT232H USB to UART interface IC device which handles all the USB signalling and protocols. The cable provides a fast, simple way to connect devices with 3.3-volt digital interfaces to USB. The C232HD UART cable contains a small internal electronic circuit board, utilising the FT232H, which is encapsulated into the USB connector end of the cable. The FT232H is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART IC. For full details, features and enhancement descriptions please refer to the FT232H datasheet. The digital interface of the cable is made up of ten individual wires which are terminated with single pole connectors which can be connected next to each other on a male header. The cables digital interface logic is 3.3 volts. The USB side of the cable is USB powered and is USB 2.0 Hi-Speed compatible. The cable is 1.8m long and supports a data transfer rate up to 12 Mbaud.
Available Cables and Part Numbers The following Table 1.1 gives details of the available C232HD UART cables , C232HD UART Cable Descriptions and Part Number (I supports customised end connector designs. For more information, please contact sales office
Part Number | Description | End Connector* | Cable details |
C232HD-DDHSL-0 | USB to MPSSE cable with | Single pole, | 10 core, 28 AWG, |
C232HM-EDHSL-0 | USB to MPSSE cable with | Single pole, | 10 core, 28 AWG, |
Features
• Based on the single chip USB Hi-Speed FT232H device
• USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible
• Entire USB protocol handled on the chip – No USB-specific firmware programming required
• USB Type A connector for direct connection to USB host or hub
• USB bus powered • Asynchronous UART transfer data rate up to 12Mbaud
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
• Fully assisted hardware or X-On / X-Off software handshaking
• 1kByte receive and transmit buffers for high data throughput
• Transmit and receive LEDs
• Adjustable receive buffer timeout
• Support for USB suspend and resume
• Low operating and USB suspend current
• Low USB bandwidth consumption
• UHCI / OHCI / EHCI host controller compatible
• -40°C to +85°C operating temperature range
• Cable length is 1.8m (6 feet)
• Custom versions also available (subject to Minimum Order Quantity (MOQ))

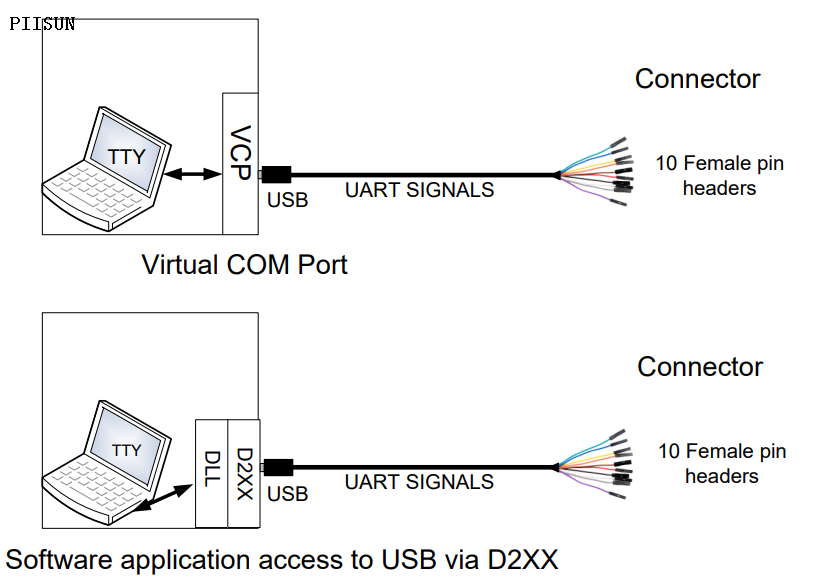

• FTDI’s royalty-free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases
