TTL-232RG-VSW3V3-WE
PIISUN
| Quantity: | |
|---|---|

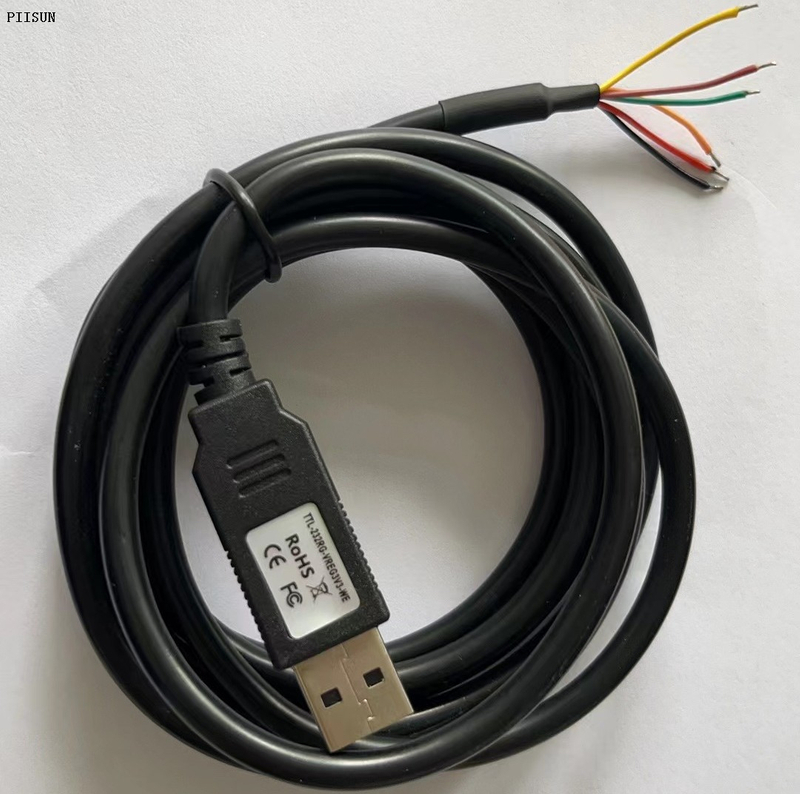

The TTL232RGVSW3V3WE USB to TTL cable is a reliable and versatile solution for all connectivity needs. It provides seamless USB to serial TTL level conversion, making it ideal for upgrading legacy peripherals to USB. This cable allows effortless interfacing of microcontroller UART or IO to USB, ensuring smooth and efficient communication between devices. It also integrates seamlessly with FPGA/PLD systems, providing a convenient and reliable USB interface. The cable is compatible with FTDI VDR, a renowned industry standard, ensuring quality and reliability. Whether for data transfer, programming, or debugging purposes, the TTL232RGVSW3V3WE USB to TTL cable is the perfect solution for engineers, developers, and tech enthusiasts. Upgrade your connectivity options today and experience the convenience and efficiency it brings to your projects.
Typical Applications
• USB to Serial TTL Level Converter
• Upgrading Legacy Peripherals to USB
• Interface Microcontroller UART or I/O to USB
• Interface FPGA / PLD to USB
• Interface to FTDI VDRIVE2 or VMUSIC2 modules.
• Interface USB to none-sta
Replace MAX232 type level shifters allowing for direct connection of products to PC via USB
• USB Instrumentation PC interface
• USB Industrial Control
• USB Software / Hardware Encryption Dongles
The following Table 1.1 gives details of the available TTL-232RG generic cables
Part Number | Description | End Connector* | Cable details |
TTL-232RG-VSW3V3-WE | USB to UART cable with +3.3V | Wire Ended (no connector) | 6 core, 26AWG, diam=5mm |
TTL-232RG-VSW3V3-PCB | USB to UART cable with +3.3V TTL level UART signals. Maximum output of 50mA on VCC | N/A (no connector) | N/A (no cable) PCB Only |
TTL-232RG-VREG3V3-WE | USB to UART cable with +3.3V TTL level UART signals. Maximum output of 250mA on VCC | Wire Ended (no connector) | 6 core, 26 AWG, diam=5mm |
TTL-232RG-VREG1V8-WE | USB to UART cable with +1.8V | Wire Ended (no connector) | 6 core, 26 AWG, diam=5mm |
TTL-232RG-VSW5V-WE | USB to UART cable with up to 5V TTL level UART signals. Maximum output of 450mA on VCC | Wire Ended (no connector) | 6 core, 26 AWG, diam=5mm |
TTL-232RG-VIP-WE | USB to UART cable with TTL Voltage levels for the UART signals are supplied from the customers interface logic | Wire Ended (no connector) | 6 core, 26 AWG, diam=5mm |
Features
• TTL-232RG generic converter cable provides a USB to TTL Serial interface with various logic levels. • On board FT232RQ provides single chip USB to asynchronous serial data transfer interface.
• Entire USB protocol handled by the electronics in the cable USB.
• Connect directly to a microcontroller UART or I/O pins.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.
• Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
• Internal EEPROM with user writeable area.
• Wide range of output drive voltages 1.8V to 5.0V safe TTL inputs makes the TTL-232RG easy to interface to 5.0V MCU’s.
• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.
Support for FT232RQ FTDIChip-ID™ feature for improved security.
• Voltage output power allows external logic to be powered from the USB port.
• Cable can be used to accept IO voltage from application interface logic allowing users to supply IO voltage levels.
• 6 way outputs provide Tx, Rx, RTS#, CTS#, VCC and GND.
• Low USB bandwidth consumption.
• UHCI / OHCI / EHCI host controller compatible.
• USB 2.0 (12Mb/s) Full Speed compatible.
• -40°C to +85°C operating temperature range.
• Cable length is 1.80m (6 feet).
• Custom versions also available (subject to MOQ).
The TTL232RGVSW3V3WE USB to TTL cable is a reliable and versatile solution for all connectivity needs. It provides seamless USB to serial TTL level conversion, making it ideal for upgrading legacy peripherals to USB. This cable allows effortless interfacing of microcontroller UART or IO to USB, ensuring smooth and efficient communication between devices. It also integrates seamlessly with FPGA/PLD systems, providing a convenient and reliable USB interface. The cable is compatible with FTDI VDR, a renowned industry standard, ensuring quality and reliability. Whether for data transfer, programming, or debugging purposes, the TTL232RGVSW3V3WE USB to TTL cable is the perfect solution for engineers, developers, and tech enthusiasts. Upgrade your connectivity options today and experience the convenience and efficiency it brings to your projects.
Typical Applications
• USB to Serial TTL Level Converter
• Upgrading Legacy Peripherals to USB
• Interface Microcontroller UART or I/O to USB
• Interface FPGA / PLD to USB
• Interface to FTDI VDRIVE2 or VMUSIC2 modules.
• Interface USB to none-sta
Replace MAX232 type level shifters allowing for direct connection of products to PC via USB
• USB Instrumentation PC interface
• USB Industrial Control
• USB Software / Hardware Encryption Dongles
The following Table 1.1 gives details of the available TTL-232RG generic cables
Part Number | Description | End Connector* | Cable details |
TTL-232RG-VSW3V3-WE | USB to UART cable with +3.3V | Wire Ended (no connector) | 6 core, 26AWG, diam=5mm |
TTL-232RG-VSW3V3-PCB | USB to UART cable with +3.3V TTL level UART signals. Maximum output of 50mA on VCC | N/A (no connector) | N/A (no cable) PCB Only |
TTL-232RG-VREG3V3-WE | USB to UART cable with +3.3V TTL level UART signals. Maximum output of 250mA on VCC | Wire Ended (no connector) | 6 core, 26 AWG, diam=5mm |
TTL-232RG-VREG1V8-WE | USB to UART cable with +1.8V | Wire Ended (no connector) | 6 core, 26 AWG, diam=5mm |
TTL-232RG-VSW5V-WE | USB to UART cable with up to 5V TTL level UART signals. Maximum output of 450mA on VCC | Wire Ended (no connector) | 6 core, 26 AWG, diam=5mm |
TTL-232RG-VIP-WE | USB to UART cable with TTL Voltage levels for the UART signals are supplied from the customers interface logic | Wire Ended (no connector) | 6 core, 26 AWG, diam=5mm |
Features
• TTL-232RG generic converter cable provides a USB to TTL Serial interface with various logic levels. • On board FT232RQ provides single chip USB to asynchronous serial data transfer interface.
• Entire USB protocol handled by the electronics in the cable USB.
• Connect directly to a microcontroller UART or I/O pins.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.
• Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
• Internal EEPROM with user writeable area.
• Wide range of output drive voltages 1.8V to 5.0V safe TTL inputs makes the TTL-232RG easy to interface to 5.0V MCU’s.
• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.
Support for FT232RQ FTDIChip-ID™ feature for improved security.
• Voltage output power allows external logic to be powered from the USB port.
• Cable can be used to accept IO voltage from application interface logic allowing users to supply IO voltage levels.
• 6 way outputs provide Tx, Rx, RTS#, CTS#, VCC and GND.
• Low USB bandwidth consumption.
• UHCI / OHCI / EHCI host controller compatible.
• USB 2.0 (12Mb/s) Full Speed compatible.
• -40°C to +85°C operating temperature range.
• Cable length is 1.80m (6 feet).
• Custom versions also available (subject to MOQ).
