TTL-234X
FTDI
| Quantity: | |
|---|---|

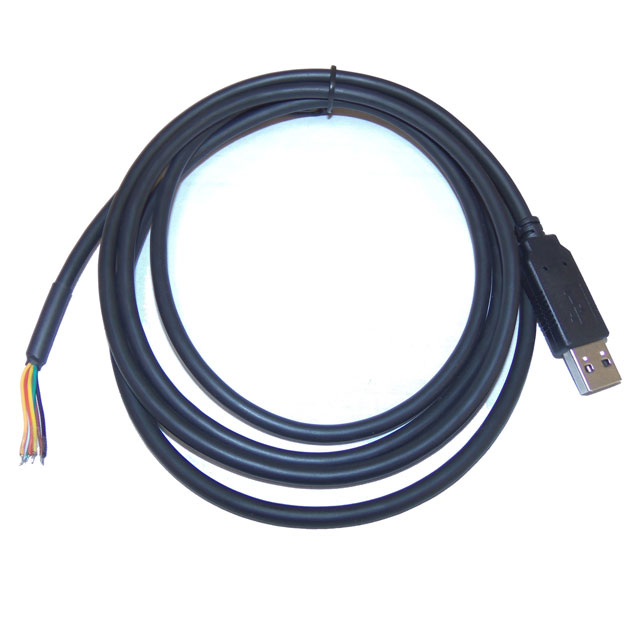

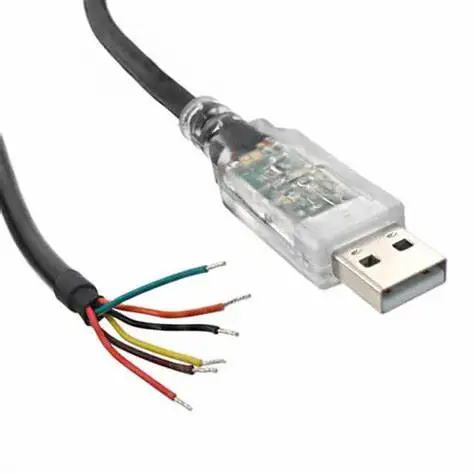

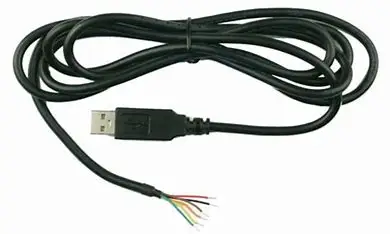

FTDI TTL-234X-3V3 TTL-234X-3V3-WE TTL-234X-3V3-AJ TTL-234X-3V3-2MM Smart Cable Assembly, USB to UART Converter, 3Mbaud, SIP 6 Pin Connector, FT234XD Chip, 1.8m/5.9ft
Baud Rate: 3Mbaud
Cable Length - Metric: 1.8m
Cable Length - Imperial: 5.9ft
USB to UART cable with +3.3V TTL level UART signals.
Data Rates: 3MBaud
The TTL-234X-3V3 is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of FTDI’s USB to TTL serial adapter cables has it’s I/O pins configured to operate at 3.3V levels.
The TTL-234X-3V3 uses a FT234X IC which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1.8 meter cable with a 0.1″” pitch header socket which provided access to transmit (Tx), receive (Rx), RTS#, and CTS#. These lines all operate at 3.3V levels. Also brought out on the header are Vcc (5V), and GND.
FTDI TTL-234X-3V3 TTL-234X-3V3-WE TTL-234X-3V3-AJ TTL-234X-3V3-2MM Smart Cable Assembly, USB to UART Converter, 3Mbaud, SIP 6 Pin Connector, FT234XD Chip, 1.8m/5.9ft
Baud Rate: 3Mbaud
Cable Length - Metric: 1.8m
Cable Length - Imperial: 5.9ft
USB to UART cable with +3.3V TTL level UART signals.
Data Rates: 3MBaud
The TTL-234X-3V3 is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of FTDI’s USB to TTL serial adapter cables has it’s I/O pins configured to operate at 3.3V levels.
The TTL-234X-3V3 uses a FT234X IC which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1.8 meter cable with a 0.1″” pitch header socket which provided access to transmit (Tx), receive (Rx), RTS#, and CTS#. These lines all operate at 3.3V levels. Also brought out on the header are Vcc (5V), and GND.
