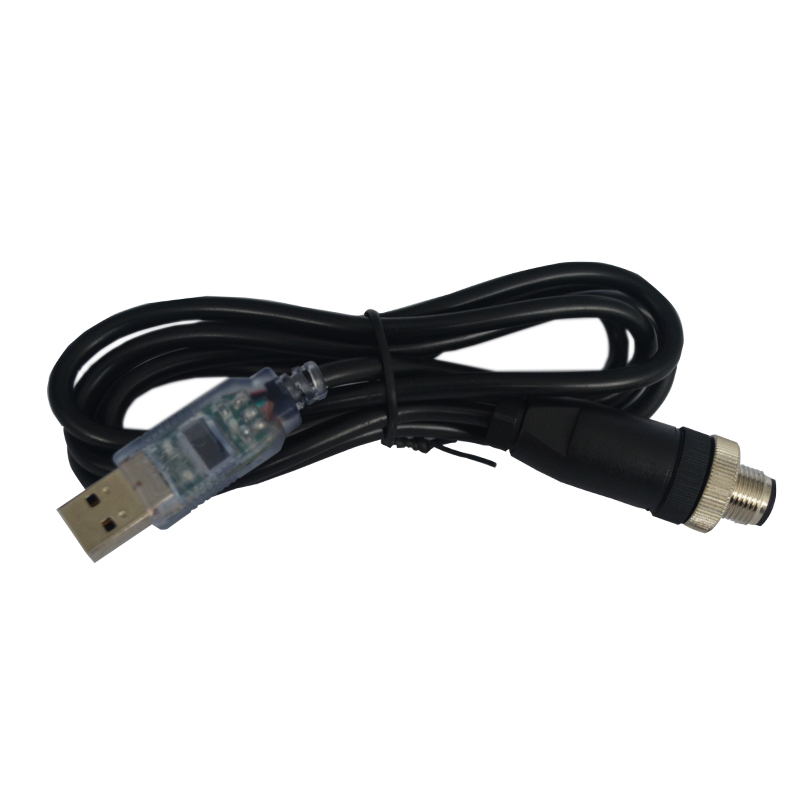

USB-RS485-M12
PIISUN
| Quantity: | |
|---|---|
Specification
USB(Universal Serial Bus) Rev1.1, 2.0 compatible
Signal output: VCC/GND/Data+/Data-
Working model: half duplex, asynchronous.
Baud rate: 75bps – 3Mbps, automatic flow control
Transferring distance: 1500m
Ports: USB AM – DB9/RJ45/RJ11/RJ12/mini USB, etc
5v voltage from USB port
Power consumption: <0.06W
Working currency: 7-12mA
Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS
Support EEPROM, support Vendor ID re-write,support Mprog3.5
Support FTDI VCP driver and D2XX driver
Working temperature: -20°C~75°C
Humidity: 0 ~ 95%
| Operating system | Windows 8.1 / 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32/64-bit), XP, Server 2003/8R2 (32/64-bit), 2000, ME, 98Se (all WHQL compliant) |
| Linux | |
| Mac OS 8, OS 9, OS X | |
| Windows CE.NET (Version 4.2 and greater) | |
| Android | |
| Processor | FTDI FT232RL+SP485 |
| RS485 Interface | Included screw terminal header / single wires |
| Fail-safe bias resistors | Yes |
| USB interface | Standard Type A Male |
| Ports | 1-port available for RS485 |
| Signals | RS485, 2-wire half duplex: D+, D-, GND |
| Baud rate | 300-921.600bps (up to 3kbps by using alising) |
| TX / RX buffer size | 256 Byte Transmit Buffer / 128 Byte Receive Buffer |
| Adjustable USB transfer sizes for TX and RX | From 64 bytes to 4096 bytes |
| Adjustable latency timer | 1 to 255 msec |
| Adjustable read and write timeouts | 0 to 10000 msec |
| Flow Control | None, Xon/Xoff, Hardware |
| COM port accessible by | Included virtual COM port drivers or FTD2XX.DLL |
| Special features | Compatible with Modbus RTU/ASCII, BACnet |
| Supports non-standard baud rates | |
| Automatic Send Control | |
| Electrostatic (ESD) protection | 600W surge protection, 15KV static electricity protection |
| Current draw | Static: less than 80mA. Dynamic average: less than 150mA |
| Interface compliance | USB1.1,2.0,3.0, EIA/TIA RS-232 |
| Working temp | -20°C to 60°C |
| Part Number | Description | End Connector* | Cable details |
| USB-RS485-WE-1800-BT | USB to UART cable with RS485 level UART signals. Black cable, Transparent USB connector | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS485-WE-5000-BT | 5m cable,6 core, 26 AWG, diam=5mm | ||
| USB-RS485-CC-LLL-CU-X | USB to UART cable with RS485 level UART signals. C = cable colour (B black or T transparent), U = USB connector colour (T transparent or B black) X = voltage (P is 5V, G is 0V) | CC = Connector description. | LLLL = Length of cable. |
The USB-RS485-WE-1800-BT_0.0 is a 1.8m long USB to RS485 converter cable.
Using the FT232R chip combined with an RS485 level converter, the cable is CE, FCC and UKCA approved product which is one of the simplest USB – RS485 solutions around.
Powered from the USB port, the RS485 signals are exposed on unterminated wires allowing the user to fit an appropriate connector matching their system needs.
The cable can be used with FTDI’s drivers to provide a virtual COM port on a PC which is capable of communication rates with RS485 units from 300 baud up to 3 MBaud.
Data RX and TX LEDs visible through transparent moulding
