POEGSP-4812S
PIISUN
| Quantity: | |
|---|---|
1. 105 ℃ long-life electrolytic capacitors are Adapted in the power.
2. The power can withstand 300VAC surge Input within 5 seconds.
3. Working temperature up to 55℃.
4. Bear 5G vibration test.
5. High efficiency, long life and high reliability .
6. 2 year warranty.
7. Waterproof grade: IP25.
8. Multi-protection: SCP, OLP, OVP, OTP.

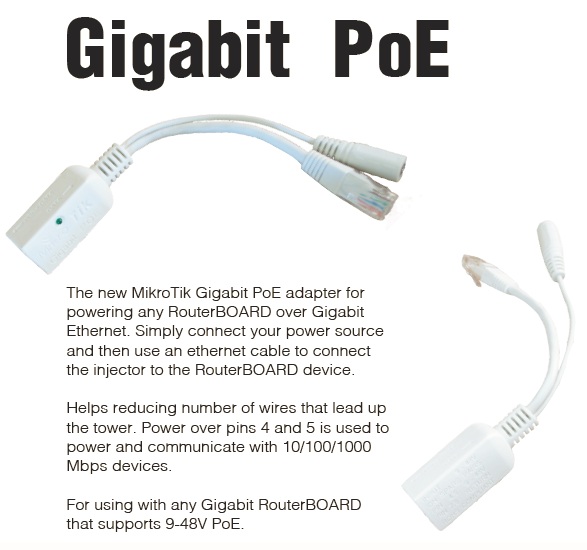

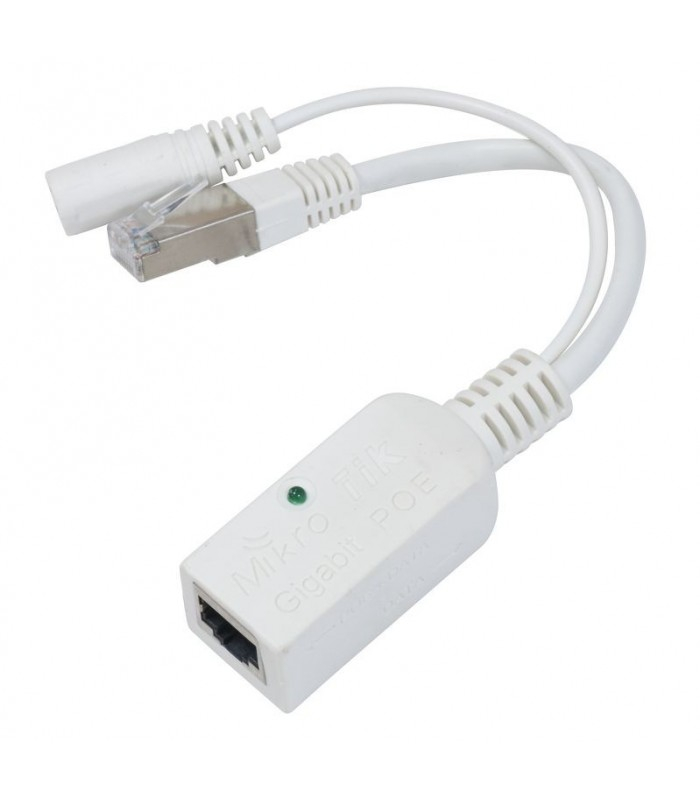

This Gigabit PoE Splitter for powering any RouterBOARD over Gigabit Ethernet.Simply connect your power source and then use an ethernet cable to connect the Injector to the RouterBOARD device.
| Enviroment and size | ||
| Working temperature | -35℃~+55℃ | |
| Storage temperature | -40℃~+-85℃ | |
| Working Relative Humidity | 10%-90% | |
| Storage Relative Humidity | 5%-95% | |
| Electrical Features | ||
| Input Voltage | 100V-240V | |
| Input frequency | 47-63Hz | |
| In-rush current | Cold work:230V60A | |
| Power factor | 0.5 | |
| Ripple & Noise | 150mV | |
| Protection | OLP,SCP,OVP,OTP | |
| Lifetime | >2YEARS | |
| Waterproof grade | IP25 | |
Model | POEGSP-4812S |
POE Input / Output Specifications | |
DC Input Voltage | 9-48V ± 5 % max 56V |
DC Output Voltage | 9-48V ± 5 % |
Max Output Current | 2A Max. |
Over Current Protection | None |
POE General Sepcifications: | |
Operating Temperature | 0oC ~ +45oC |
Storage Temperature | -30oC ~ +70oC |
CASE OF MATERIAL | PVC |
Ethernet Date Rate | 10/100/1000Mbps |
Ethernet Cable | TIA/EIA 568 Cat.5 |
Humidity | Up to 90% |
Weight | 28g |
DC Jacks | 2.1x5.5mm |
Length | 210mm |
Support different customization if you need , Detail talk with our sales directly please
