PII80-KVM
PIISUN
| Quantity: | |
|---|---|
Whether you’re a professional looking for a seamless workspace setup or a gamer in search of an immersive gaming experience, PIISUN PII80-KVM helps you extend HDMI and USB signals with ease.
| PII60-DM | PII80-KVM | PII50-KVM | PII100-KVM | PII-KVM | PIIDP-KVM | |
| Product Type | Dual Monitor | Single Monitor | Single Monitor | Single Monitor | Single Monitor | Single Monitor |
| Video Interface | 2x HDMI in, 2x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x HDMI in, 1x HDMI out | 1x DisplayPort in, 1x DisplayPort out |
| HDMI Version | 1.3 | 1.3 | 2.0 | 1.4 | 1.4 | No, DP 1.2 |
| HDCP Version | 1.4 | 1.4 | 2.2 | 1.4 | doesn't support HDCP | 1.4 |
| Supported Video Resolution | Up to 1080p@60Hz | Up to 1080p@60Hz | up to 4K@60Hz 4:4:4 | up to 4K@30Hz; 1080P@120Hz | up to 4K@60Hz (4:2:0 8bit); 4K@30Hz 4:4:4, 1080P@120hz | up to 4K@30Hz, 1080P@120hz |
| HDMI Audio Channel | Stereo | Stereo | 5.1 Channel | 7.1 Channel | 7.1 Channel | 7.1 Channel |
| Maximum Transmission Range | 197ft (60m) | 260ft (80m) | 164ft (50m) | 395ft (120m) | 330ft (100m) | 330ft (100m) |
| USB Ports | 4x USB 2.0 port | 2x USB 2.0 port | 4x USB 2.0 port | 3x USB 2.0 port | 4x USB 2.0 port | 2x USB 2.0 port |
| POE/POH/POC | Uni-Direction (RX to TX) | Bi-Direction | Uni-Direction (RX to TX) | No | Uni-Direction (TX to RX) | Uni-Direction (TX to RX) |
| RS232 | No | No | No | No | Yes | Yes |
| IR | No | No | No | No | No | No |
| Router/Ethernet Switch Compatibility | No, point to point | No, point to point | No, point to point | Yes, up to 16 sets of TX and RX | No, point to point | No, point to point |
| Plug & Play | Yes | Yes | Yes | Yes | Yes | Yes |
| Technical | |
| Video Signal Type | DP1.2 with HDCP1.4 |
| Audio Format | L/R channel PCM 2.0 |
| Input/Output Resolution Support | 640×4808, 800×6008, 1024×7688, 1280×7208, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 1920×12008, 2560×14408, 2560×16008, 3840x2160P5, 1920×10809 Note: 5 = at 30 Hz, 8 = at 60 Hz, 9 = 120Hz |
| General | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
| Surge Protection | Voltage: ±1 kV |
| Power Consumption (Maximum) | ≤14.2W (Pair) |
| DP Cable length | 5m (Max) |
| Device Dimensions (W x H x D) | 200 mm × 25 mm ×100 mm 7.91” x 0.99” x 3.95” |
| Product Weight | Transmitter: 0.5kg/1.10lb Receiver: 0.5kg/1.10lb |

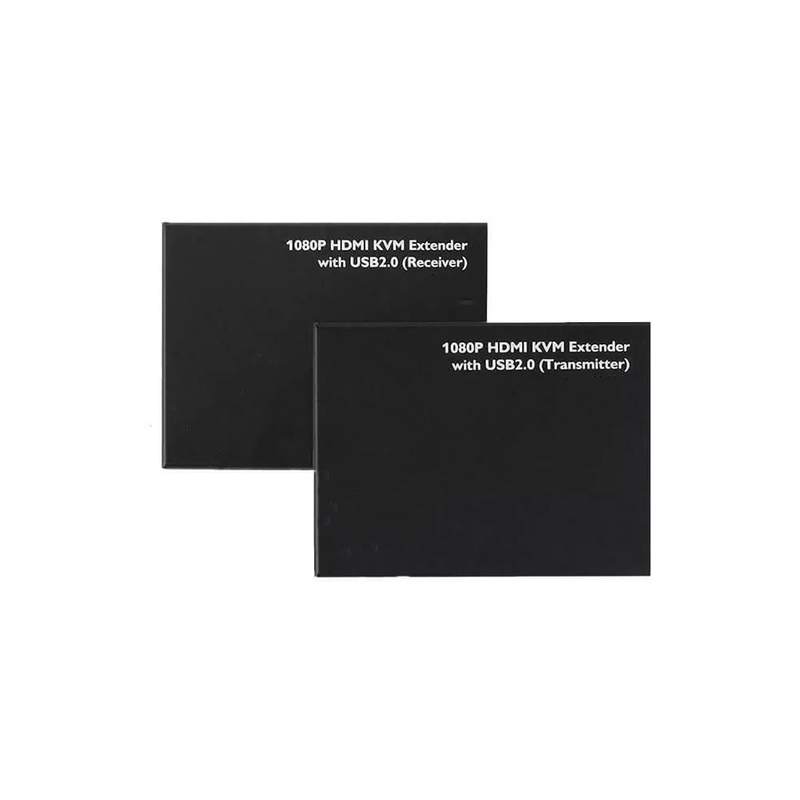

PIISUN PII80-KVM 1080P HDMI KVM extender is plug-n-play and easy-to-use. It allows you to control a remote PC with ease, ideal for any long-distance KVM extension. Some of its applications are as follows:
The 1080P HDMI USB extender offers you an ideal KVM extension solution for residential use. Can you imagine working or monitoring from anywhere in your house? Your desktop PC or NVR/DVR will be safe in the basement/equipment room, and the KVM extender will send HDMI and USB signals to where you want.
The PIISUN PII80-KVM 1080P KVM extender allows you to control a remote game console with ease. Can you imagine enjoying your favourite video game in the courtyard? Your gaming console will be safe in the game room and the KVM extender will send HDMI and USB signals to where you want.
This HDMI KVM extender enables you to extend HDMI and USB signals up to 80m/260ft at the same time in a large meeting room or classroom. You can effortlessly control a remote PC/server with a keyboard, mouse, speakerphone, camera, etc. Thus, you can greatly improve work efficiency in teaching and meeting.
PIISUN PII80-KVM HDMI extender can transmit 1080P full HD HDMI signal over a single cat 5e/6/6a cable up to 80m/260ft along with USB signals. It transmits high-quality picture without any video loss or time delay. Even if your desktop computer is placed in the basement or equipment room 80m/260ft away, you can control the PC effortlessly in your home studio.
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately.
2. One transmitter can work with only one receiver.
| Technical | |
| Video Signal Type | HDMI 1.3 with HDCP 1.4 |
| Input/Output Resolution Support | 1080P@60/50/30/25Hz; 720P@60/50Hz; 480P@60Hz |
| Audio Format Supported | PCM 2.0 |
| Max Data Rate | 6.75 Gbps |
| Transmission Distance | HDMI Signal: Up to 260ft/80m via Cat 5e/6 or better cable. USB Signal: Up to 260ft/80m. |
| General | |
| Power Consumption (Maximum) | ≤6.3 W (Pair) |
| Device Dimensions (W x H x D) | 98.2 mm ×23 mm ×75 mm/ 3.87” x 0.91” x 2.95” |
| Product Weight | Transmitter: 0.22kg/0.48lb Receiver: 0.22kg/0.48lb |
1. What can I do if the USB connection is not working?
Check if you have connected the transmitter to your PC via a USB cable.
Try connecting the USB cable to another USB port on your PC.
Check if the LED indicator next to the USB port is in normal status (solid on/flashing). If not, please check if you have connected the USB cable properly.
Try connecting the USB devices to the PC directly without using the KVM extender. Then check if the USB connection works.
2. My mouse and keyboard can work with the KVM extender, but other USB devices like a hard drive can’t work. What should I do?
Try plugging in the receiver with the included power adapter. (Neglect this step if you already did)
Try plugging in your USB devices if they have an independent power supply.
Check if the USB devices are compliant with USB 2.0 specification.
3. My mouse and keyboard can work with the KVM extender, but other USB devices like a hard drive can’t work. What should I do?
Try plugging in the receiver with the included power adapter. (Neglect this step if you already did)
Try plugging in your USB devices if they have an independent power supply.
Check if the USB devices are compliant with USB 2.0 specification.
4. What can I do if the transmitter or receiver is not powered on?
Use a new Cat cable, or check if your cable meets the standard. It is recommended to use a Cat5E/6/6A/7 cable, instead of Cat5 or flat cable.
Check if the total length of your cable is within 80m/260ft.
Check if the connectors at both ends of the cable meet the IEEE T568B standard.
Try crimping your Cat cable connectors according to the IEEE T568B standard.
If you need to use patch cables at both ends, the length should be as short as possible, no more than 5m/16ft. Please note that the total length of the patch cables and the Cat cable should not be over 80m/260ft.
5. What's a KVM extender?
A KVM extender extends video and USB signal over distance for remote control. They are widely used for data control centers, security surveillance systems, video gaming setups, etc. Read this KVM extender definitive guide to learn more.
6. What's a KVM extender?
A KVM extender extends video and USB signal over distance for remote control. They are widely used for data control centers, security surveillance systems, video gaming setups, etc. Read this KVM extender definitive guide to learn more.
7. Can I run one transmitter with two receivers?
No. The HDBaseT supports one-to-one direct connection only. If you have two displays, try the dual monitor kvm extender.
8. Can this KVM extender work with a network switch?
No, this model does not work with a network switch. It is designed for point-to-point connection. You may find this KVM extender over IP(4KIP100-KVM) helpful.
9. Will the USB work with a camera surveillance system?
Yes, it works with a camera surveillance system and extend USB devices connected to it.
MORE DETAIL ,WELCOME ASK OUR ON LINE SALE
MORE CUSTOMZIATION ,TALK WITH US PLEASE
