| Quantity: | |
|---|---|
The quotation is 1 TX or 1 RX, please freely choose the quantity of TX and RX, and make a note.
| Name | HDM extender 120m HDM over IP |
| Resolution | 1080P |
| Distance | 100m-150m |
| Interface | HD/RJ45 |
| Transmission medium | CAT5e/CAT6 |
| Warranty | 1 year |
| OEM | Support |
Features:

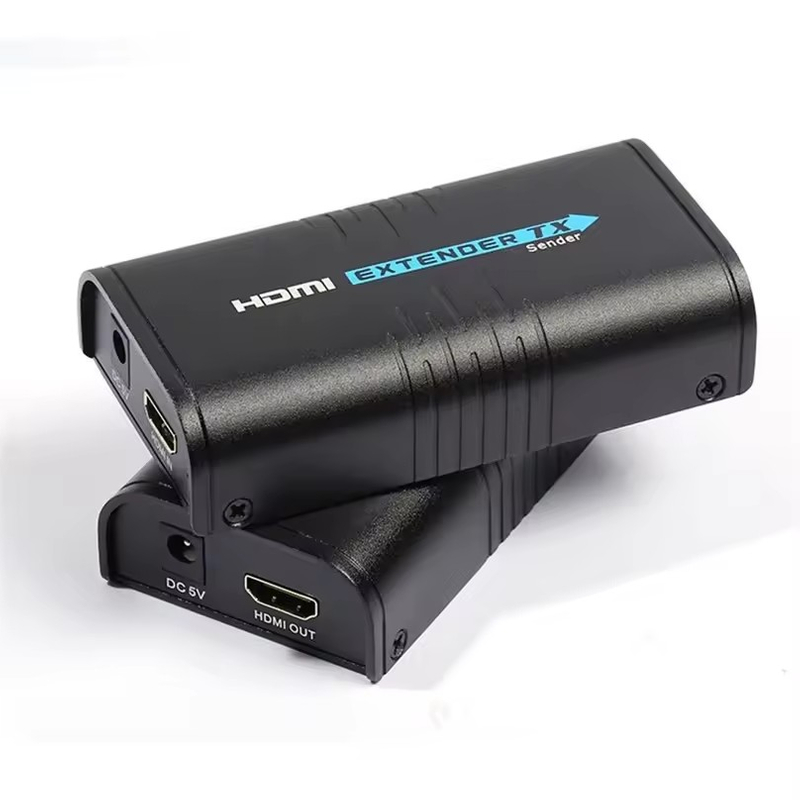

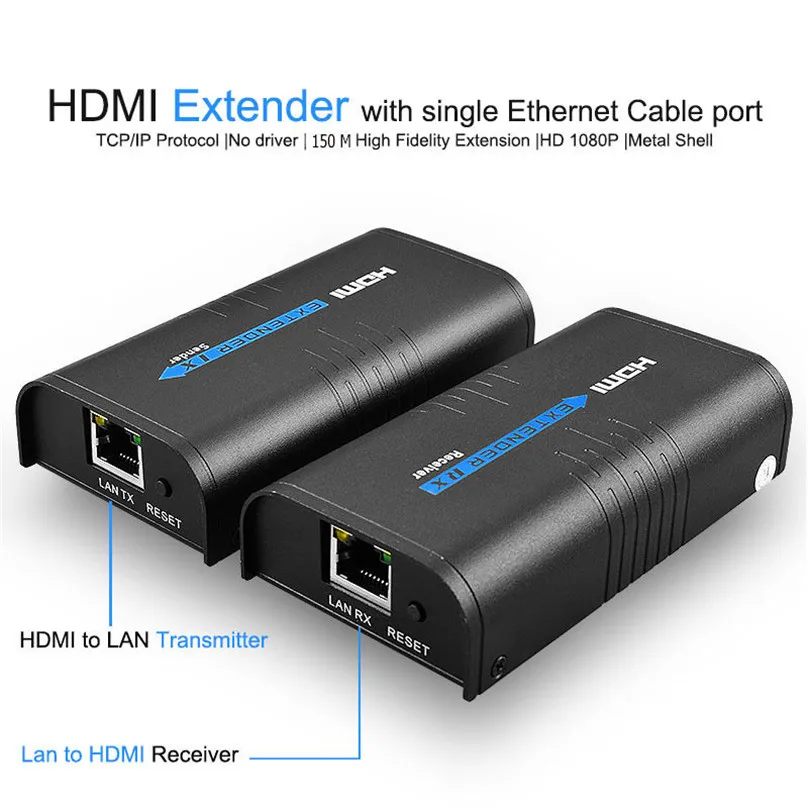

This HDMI extender includes both a transmitter and a receiver unit.
It can extend HDMI signal up to 120 meters over single network cables, and the supported resolution up to 1080p@60Hz.
This extender is HDCP compliant

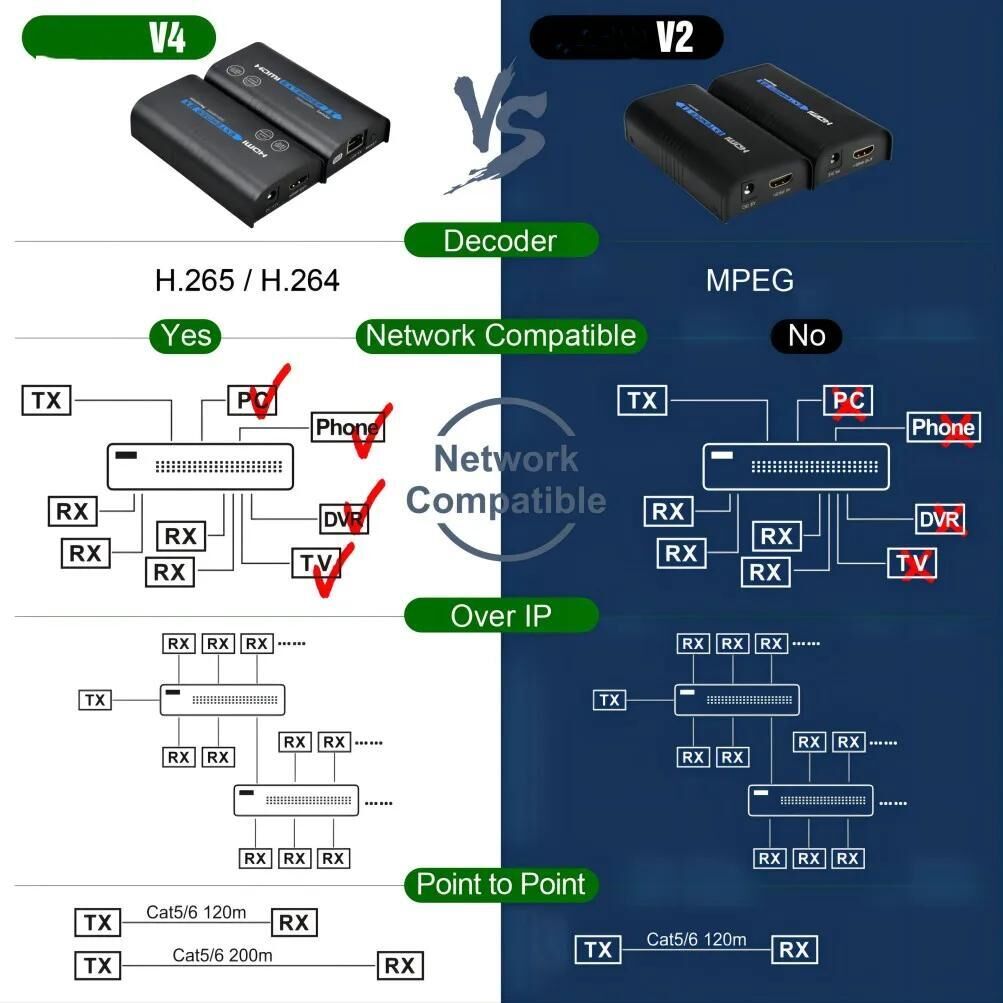

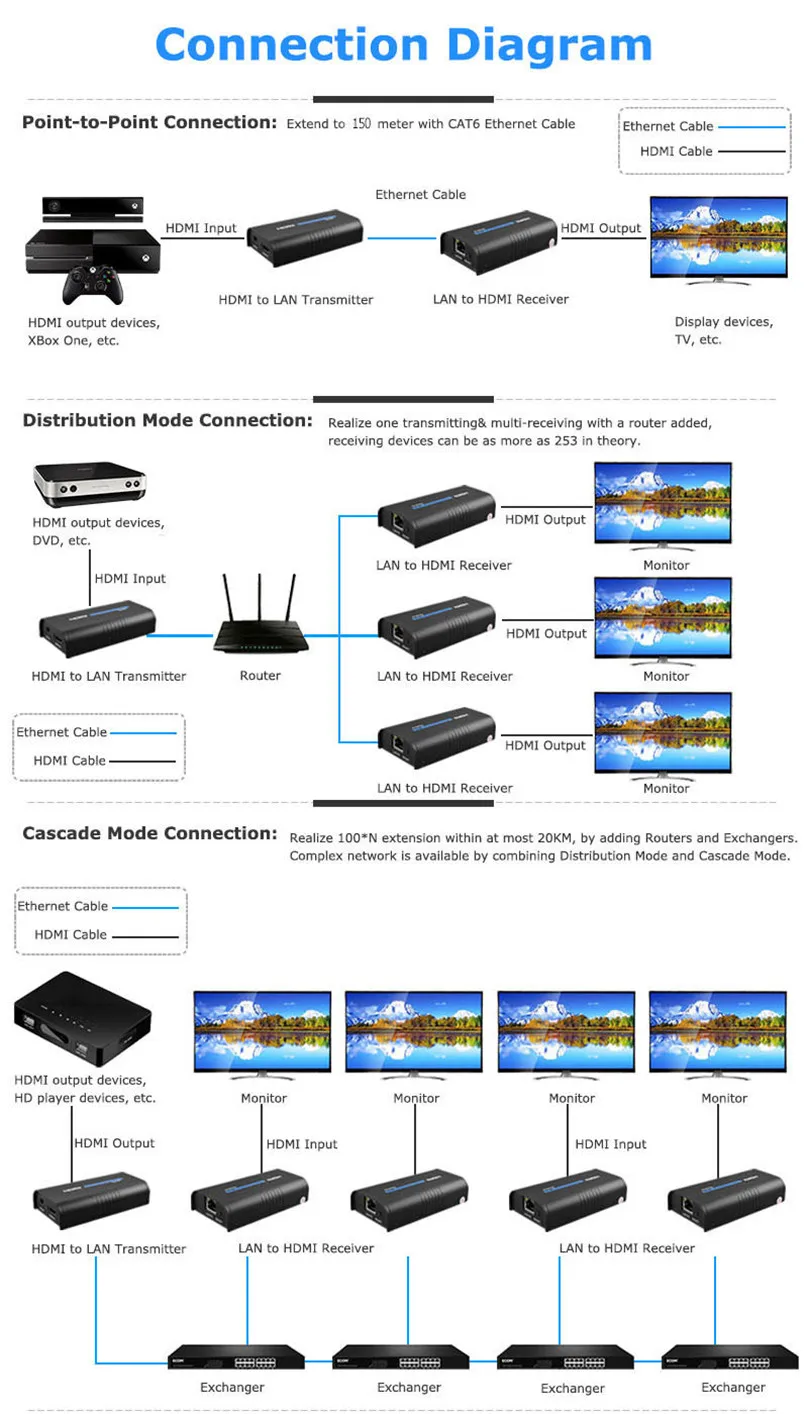

Allows to be distributed by network routers for cascade connection
Compatible with existing network, not affect internet
Transfer by existing CAT 5/5e/6 network cable
Plug and play without any manual setting
Specification:
HDMI Signal: Compatible with HDCP
Support Resolutions: 480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz
Transmission Distance: Up to 120 meters transmission distance for 1080p 60Hz full HD over single CAT6; CAT5 8Om/CAT5E 100M/CAT6 100M
Transmission Rate: 18Mbps
Working temperauture: 0℃~60℃
Power supply: DC5V/1A
Power Consumption: TX: 3.5W; RX: 3W
Dimensions(WxDxH): 110x58x26mm
Weight: TX: 125g RX: 120g
Important Safety Instructions:
Do not mix up the HDMI EXTENDER sender and HDMI EXTENDER receiver
Do not plug-in/out the cables when it is in using
Use DC5V power supply only. Make sure the specification matched if using 3rd party DC adapters

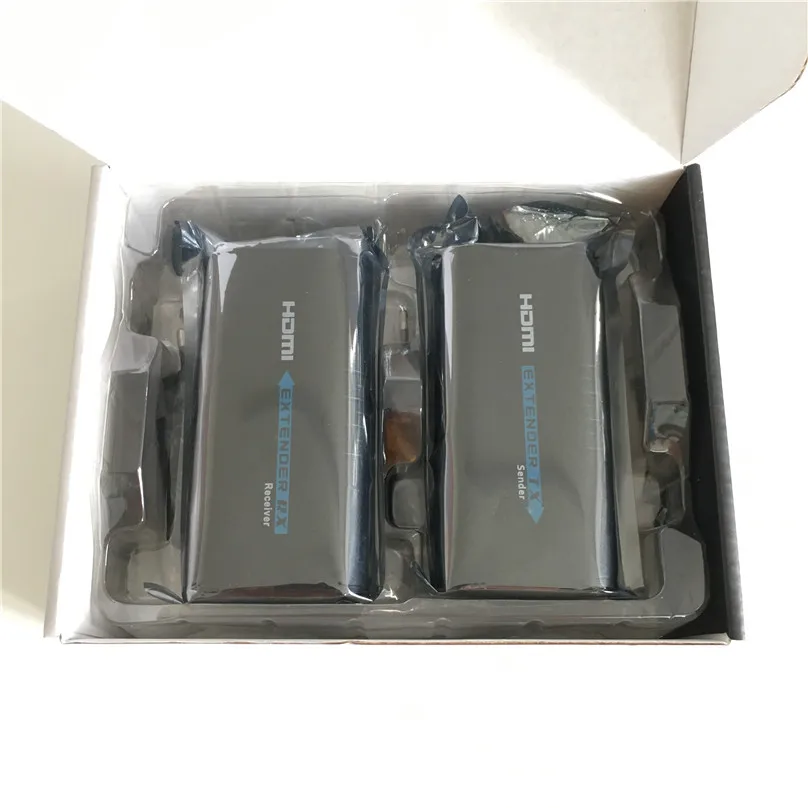

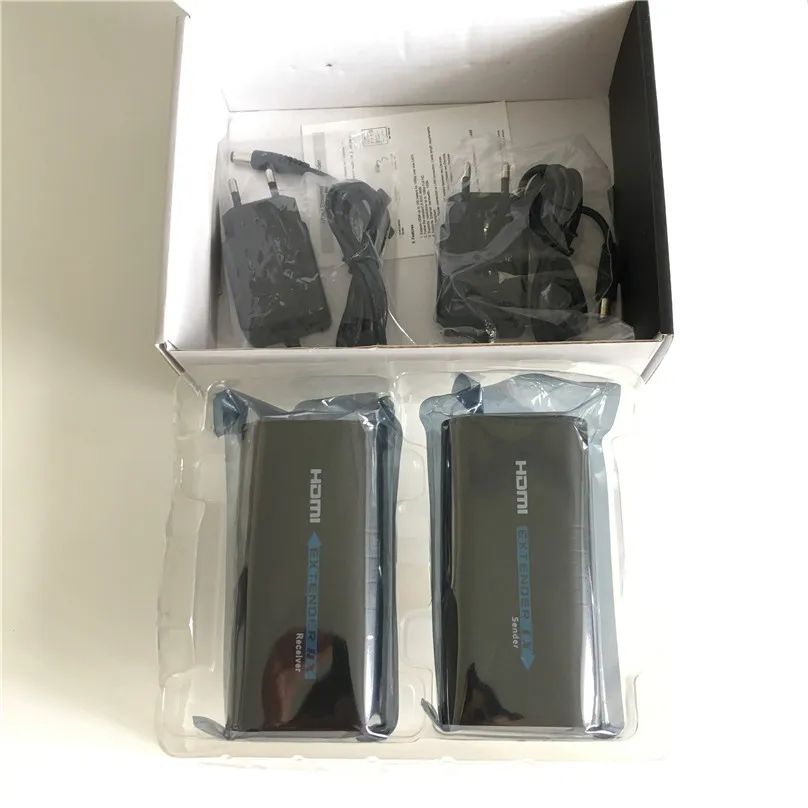

Each Set product Package Include:
1 x HDMI EXTENDER sender TX
1 x HDMI EXTENDER receiver RX
2 x DC5V/1A power supply
1 x User Manual
