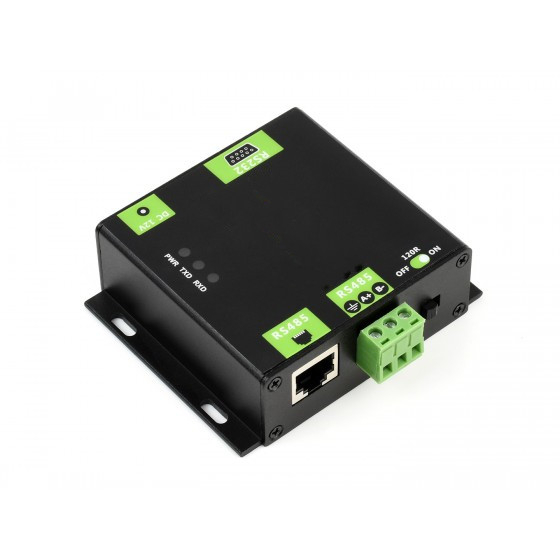

Industrial RS232/RS485 To Ethernet Converter, Dual Serial Ports, Easy-To-Use, High-Speed, Low-Power, High-Stability, Upgradable

Features

• M4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable

• 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable

• Both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other

• Configurable baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space

• Multi indicators, for monitoring communicating and working status

• Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)

• Supports Modbus, suit for industrial application

• Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly

• Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software

• Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data

• Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished

• Supports customized webpage, allows user to customize the module configuration page

• Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change

• KeepAlive mechanism, detects broken connection, auto re-connecting

• Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time

• Supports DNS domain name resolution, configurable DNS server

• Supports DHCP, auto-obtained IP or static IP

• Firmware is upgradable via the network

• Restore to factory settings via software and/or hardware

• Comes with default MAC address, which is customizable

• Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software

• Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Specifications

• Ethernet:

• Connector: 4-pin RJ45

• Communication rate: 10/100Mbps

• Interface protection: 2KV electromagnetic isolation

• Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client, Websocket

• TX cache: 16Kbyte

• RX cache: 16Kbyte

• RS485/RS232:

• RS485: 2KV ESD protection, lightningproof, anti-surge, over-current protection

• RS485 pull up/down registers: 2.2KΩ

• RS485: screw terminal (A+, B-, GND)

• RS232: DB9 male

• Connector:

• Data bit: 5bit, 6bit, 7bit, 8bit

• Stop bit: 1, 2

• Parity bit: None, Odd, Even, Mark, Space

• Baudrate: 600bps~230.4Kbps

• TX cache: 2Kbyte

• RX cache: 2Kbyte

• Hardware flow control: RTS/CTS

• Interface protection:

• Power:

• Power supply: 5.0~36.0V (5V recommended)

• Operating current: 86.5mA (@5V)

• Power consumption: <1W

• Interface protection: reverse-proof, ESD protection, anti-surge

• Environment:

• Operating temperature: -40~85°C

• Storage temperature: -40~105°

Dimensions
