PIIUSB-HUB
PIISUN
| Quantity: | |
|---|---|
4x extended USB ports, switchable two inputs, sharing USB devices for two hosts
Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
ESD protection for each USB port, preventing electric surge damage and data loss
Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.

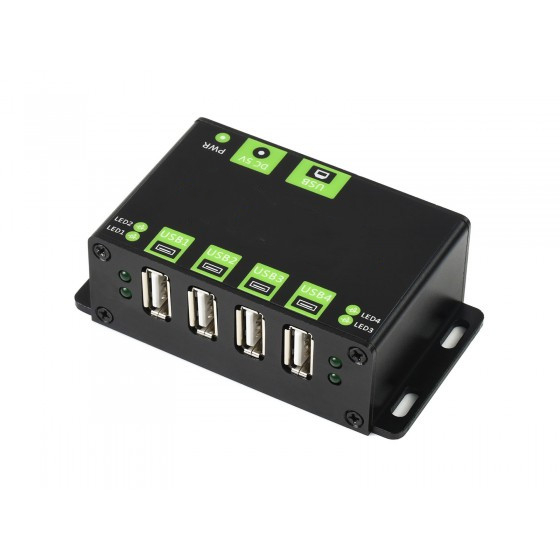

Industrial grade metal case, rugged & durable, with mounting holes for easy installation
| STANDARD | high speed USB 3.2 Gen 1 |
|---|---|
| DATA RATE | up to 5Gbps |
| USB OUTPUT | 5V@Imax:1.2A, USB-A connector |
| USB HUB INPUT | 5V, switchable dual USB-A connectors (standalone power supply, no crossed power) |
| EXTERNAL POWER | DC power supply terminal 7~36V (Additional power supply is required for this HUB when connecting to high power devices) |
| OPERATING ENVIRONMENT | -40℃ ~ 85℃ |
| OS SUPPORT | Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP |
Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and
mouse, no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.
Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...
Suitable For Industrial/Office Environments With Higher Level Device Requirements
4x extended USB ports, switchable two inputs, sharing USB devices for two hosts
Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
ESD protection for each USB port, preventing electric surge damage and data loss
Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
Industrial grade metal case, rugged & durable, with mounting holes for easy installation
| STANDARD | high speed USB 3.2 Gen 1 |
|---|---|
| DATA RATE | up to 5Gbps |
| USB OUTPUT | 5V@Imax:1.2A, USB-A connector |
| USB HUB INPUT | 5V, switchable dual USB-A connectors (standalone power supply, no crossed power) |
| EXTERNAL POWER | DC power supply terminal 7~36V (Additional power supply is required for this HUB when connecting to high power devices) |
| OPERATING ENVIRONMENT | -40℃ ~ 85℃ |
| OS SUPPORT | Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP |
Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and
mouse, no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.
Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...
Suitable For Industrial/Office Environments With Higher Level Device Requirements
