PII4K100
PIISUN
| Quantity: | |
|---|---|

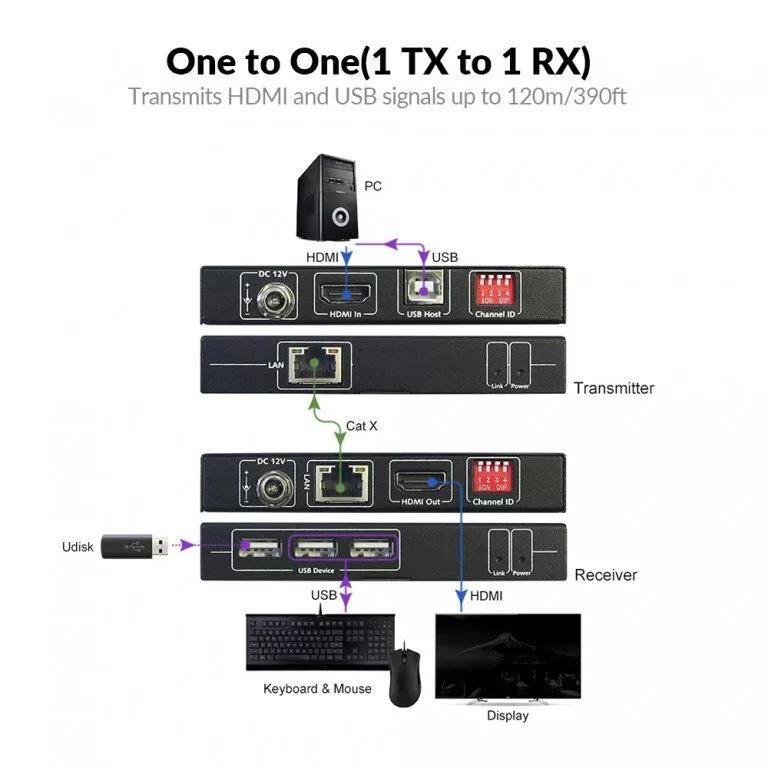

● 4K UHD & Zero Latency: Transmits 4K@30hz HDMI and USB 2.0 signals over a single Cat5e/6/7 cable up to 120m/390ft, with zero latency. No software or driver is required, just plug and play.

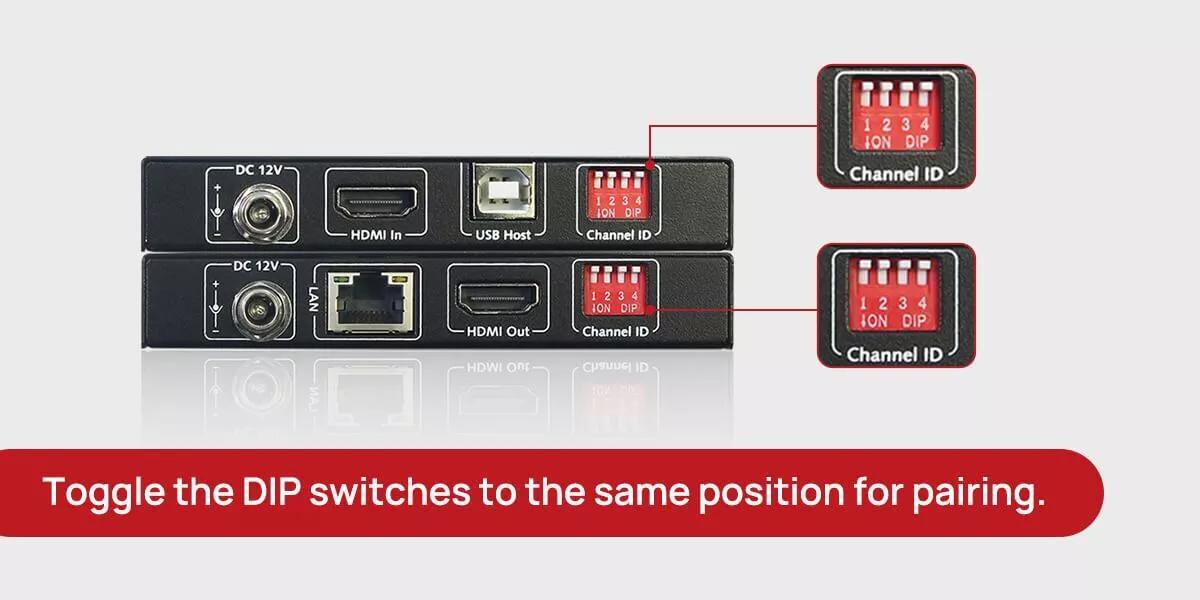

● Multi-User Control: Up to 16 sets of transmitter (TX) and receiver (RX) can work together via a standard Gigabit Ethernet switch without VLAN settings. Each TX and RX is built with a DIP switch for easy pairing.
● 3-in-1 USB Hub: Control your remote PC easily with a keyboard, mouse, touch-screen panel, or other USB 2.0 peripheral (high speed up to 480Mbps).
● High Refresh Rate: Supports 1080P@120Hz and 7.1-channel audio for a wonderful gaming experience. Works with all operating systems, like Windows, Mac, and Linux.
● High Reliability: Certificated by CE, FCC. Built-in superior surge/ESD protection. Comes with mounting ears for easy installation.
● Important Notes: This product is a KVM over IP extender kit. It doesn’t support matrix switching when working with a Gigabit switch. Please refer to PII4KIPJ100/PII4KIPJ200 if you need an IP KVM matrix solution.
No matter in a data control center, university campus, government, residential house or other scenario, our 4KIP100-KVM KVM over IP extender allows you to control remote PCs with ease, ideal for any long-distance KVM extension. Some of the applications are as follows:
The 4KIP100-KVM 4K HDMI KVM extender offers multi-site access to the equipment. Can you imagine enjoying your favourite video game in the courtyard? Your gaming console will be safe in the game room and the KVM extender will send HDMI and USB signals to where you want.
Servers/PCs are normally stored in the server center in schools so that the IT staff can easily manage them at one place. 4KIP100-KVM helps connect the server room and the multi-media classrooms. Even with the server miles away, teachers can easily control it through the keyboard, mouse and projector/monitor in the classroom.
Usually, data center gathers all core servers for central administration and it makes central cooling, hardware protection, maintenance easier to accomplish. In this case, the 4K KVM extender plays an indispensable role for employees to have remote access from their workstations and they work in a better environment as the bulk of heat and noise is placed away.
The 4K KVM extender enables people to monitor and control the security system in the control room. Important security images are brought together and professionals can streamline their work and content control. It brings high quality picture to the control room and operators can easily zoom-in to scrutinize the monitored space.

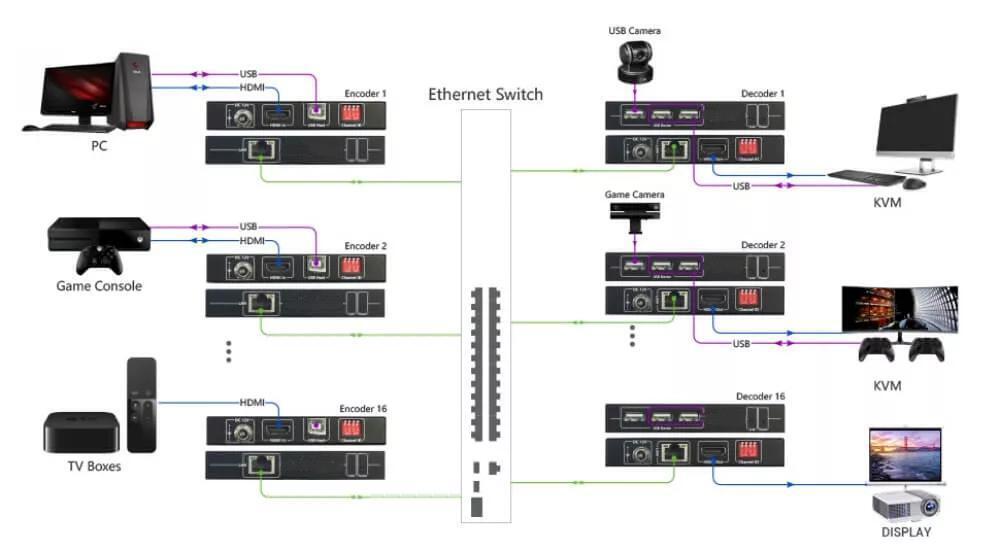

Up to 16 sets of transmitter and receiver can work together via a standard Gigabit Ethernet switch without VLAN settings. The 4KIP100 KVM over IP extender is ideal for control centers, especially data control centers and video surveillance centers, where multiple operators can have concurrent access to their respective remote computer/server from their local console.
Note: This product doesn’t support PoE at present. It is recommended to use a PoE adapter to connect it to your PoE switch if you need.
| Technical | |
| Input/Output | 1 x HDMI IN (19-pin female HDMI Type-A), 1 x USB HOST (female USB Type-B), 1 x 4-Pin DIP Switch, 1 x DC 12V connector with locking, 1 x LAN (RJ45) |
| Input Signal Type | HDMI 1.4b |
| Input Resolution | Up to 4K@30hz |
| Input Audio Format Supported | PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD High Resolution Audio, DTS-HD Master Audio |
| Maximum Data Rate | 9 Gbps |
| Maximum Pixel Clock | 300 MHz |
| Output Signal Type | Compressed IP streams |
| Transmission Distance | Cat 5e or above: 120m/395ft HDMI: 15m/49ft |
| General | |
| Power Supply | DC 12V 1A |
| Power Consumption | <2.5 W |
| Unit Dimensions (W x H x D) | 112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ × 2.57’’ |
| Unit Weight (without accessories) | 0.18kg/0.40lb |
Receiver
| Technical | |
| Input/Output | 1 x LAN (RJ45), 1 x HDMI OUT (19-pin female HDMI Type-A), 3 x USB DEVICE (female USB Type-A), 1 x 4-Pin DIP Switch, 1 x DC 12V connector with locking |
| Input/Output Signal Type | Compressed IP streams |
| Output Resolution Supported | Up to 4K@30hz |
| Output Audio Format Supported | PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD High Resolution Audio, DTS-HD Master Audio |
| Maximum Data Rate | 9 Gbps |
| Maximum Pixel Clock | 300 MHz |
| Transmission Distance | Cat 5e or above：120m/395ft HDMI: 15m/49ft |
| USB Consumption | Recommended no more than 0.5A per USB port |
| General | |
| Power Supply | DC 12V 1A |
| Power Consumption | < 4W (without USB Consumption) |
| Unit Dimensions (W x H x D) | 112mm × 17.8mm × 65.2mm / 4.41’’ × 0.70’’ × 2.57’’ |
| Unit Weight (without accessories) | 0.18kg/0.40lb |
MORE CUSTOMIZATION , DISCUSS DIRECTLY PLEASE
