Description :
The CAR-24-US . management server is a control suite which transforms CARATAR Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. CAR-24-US CARATAR Infinity Manager allows co-operative sharing of computers and the multicasting of video to any destination.
. Intuitive, multi-lingual user interface that supports 24 end points |
Specifications
Open API for 3rd party control systems | CARATAR Technology publishes a simple API structure to allow easy integration with other 3rd Party control systems supplied by companies like AMX, Crestron , HRS or MediaLon at a HTTP level. |
LDAP integration | To help ease setup, the system has an LDAP interface so users and passwords from other systems can easily be imported. |
SNMP v3 get / walk | External machines can interrogate A.I.M. to find out the status of the AdderLink Infinity network and units. SNMP v3 security is implemented, supporting AES/DES transport with MD5/SHA authentication. |
External NTP server support - NTPv4.2 | Connect up to 3 NTP servers with authenticated connections using MD5 and Key ID as defined in the NTP standards. All AdderLink Infinity units in an A.I.M. network now get time using authenticated NTP from A.I.M. |
System backups | Backups of the database can be saved internally, externally or emailed automatically. Automatic updates can be scheduled on an hourly, daily or weekly basis. |
Centralized firmware upgrades | As well as managing its own firmware upgrade, A.I.M. manages the upgrade of each device on the network and can deploy firmware to hundreds of devices at the same time, meaning a system-wide upgrade takes only a few minutes. |
Easy matrix setup | Using Zero Configuration networking, A.I.M. automatically obtains the MAC addresses of extender devices as they are attached to the network. The administrator allocates IP addresses, names and locations so that devices are easy to identify, configure and control. |
Hardware | Industrial spec server with solid state memory. |
Software | Closed system operating Linux. |

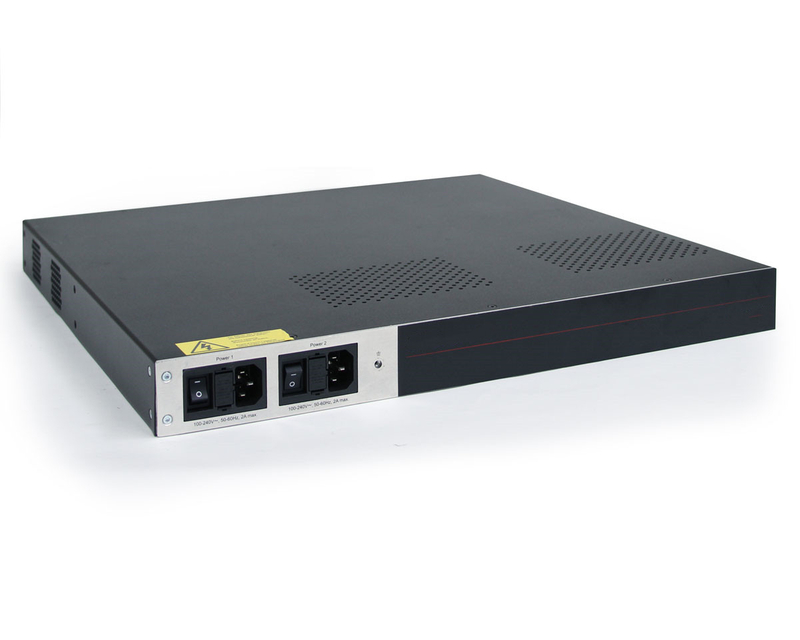

Physical design | 19 inch 1U rack mountable chassis in a robust metal construction. 432mm/17" (w), 44mm/1.73" (h), 230mm/9" (d), 2.75kg/6lbs. |
Power | External power IEC input unit, 100-240VAC 50/60Hz, 1.5A, input to power adapter. 12VDC, 60W output. |
Operating temperature | 0 to 40ºC / 32 to 104ºF. |
Approvals | CE, FCC. |
Introducing the KVM Matrix Switch, a cutting-edge solution designed to revolutionize your cross-border e-commerce experience. As industry experts in the field of electronic devices, we understand the importance of combining expertise with marketing finesse to create a successful product description. With a formal and professional tone, we aim to provide you with specific details about our product, ensuring it stands out amongst the competition.
The KVM Matrix Switch is a versatile and high-performance device that allows you to seamlessly control multiple computers or servers from a single console. With its advanced technology, this KVM switch enables you to effortlessly switch between different computers, eliminating the need for multiple keyboards, monitors, and mice. This not only saves valuable workspace but also enhances productivity by streamlining your operations.
Equipped with multi-port functionality, the KVM Matrix Switch offers an array of ports to connect various devices simultaneously. Whether you require a multi-port KVM switch for a small office or a network KVM switch for a large enterprise, our product caters to your specific needs. Its robust design ensures reliable and uninterrupted connectivity, guaranteeing a smooth and efficient workflow.
In addition to its exceptional features, our KVM Matrix Switch offers customization options to meet your unique requirements. We understand that every business has its own distinct needs, and therefore, we provide the flexibility to tailor the device according to your specifications. This ensures that you receive a product that perfectly aligns with your operational demands, enhancing your overall experience.
With our KVM Matrix Switch, you can expect nothing less than superior performance, reliability, and efficiency. It is the ideal solution for businesses seeking to optimize their cross-border e-commerce operations. So why settle for anything less when you can have the best? Choose our KVM Matrix Switch and elevate your business to new heights of success.
