PiiLCD-T043C01
PIISUN
| Quantity: | |
|---|---|
New Capacitive touch panel 7 inch 1024x (RGB) × 600 resolution TFT LCD display with TTL interface
Easy to Program - Includes complimentary GUI Software that makes programming fast and easy for engineers. This can reduce your project's time and expense. The LCD touch screen can easily create an intuitive touch interface by adding png/jpg/bmp/svg/gif image files as your background and defining functions by components. It's easy even for beginners.

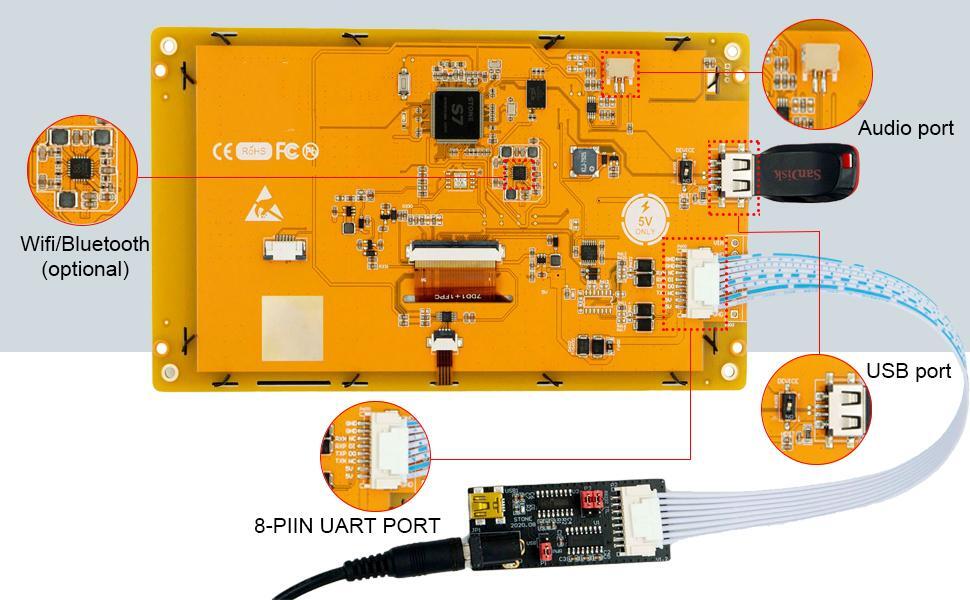

Lots of Powerful Upgrades - New Launch Civil Series 4.3" TFT LCD module can be controlled by any MCU. This offers 1 G Hz Cortex A8 CPU driving device and 128 Flash memory for HMI projects. You also get RS232/TTL UART Interface and USB port. This is an excellent choice for your Arduino and Raspberry Pi projects.
Clear, Detailed, Hi Res HD - Our Smart HMI TFT LCD display offers excellent 480x272 high resolution with 4-wire resistance touch screen. Rich 262K (18bit) color for high color restore. Rectangular ratio 16:9 display format conversion. 70°/70°/50°/70° wide viewing angle, adjustable brightness（300 cd/m²) , TTF Font and contrast (500:1) offers you the ultimate project experience to accomplish more with improved results.
Ultimate TFT LCD Display Module for Industry - PIISUN Technology Intelligent TFT-LCD Module Model is a customer favorite for a wide range of industrial and business applications. You get highest quality with the most usable functions. Often purchased for equipment in medical, beauty, engineering, industrial control, electric power, civil electronics, automation, traffic, new energy, and IOT applications.
Generous 3 Year Warranty - We make SCBRHMI products to last and work well on the job. If this breaks, return it and we will replace it at no cost. Our displays all pass CE/RoHS/FCC/ISO9001 International Certification and 24 hours Aging Testing. We offer professional technical support around the clock along with our popular user help group.
| Specification | ||
| Outline Dimension(mm) | 123.04(W) x 84.46(H) x 4.63(D) | |
| Active Area(mm) | 95.04(W) x 53.86 (H) | |
| Resolution(dots) | 480x (RGB) × 272 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 480RGB(H)xRGBx272(V) | |
| Touch panel | CTP | |
| Driver IC | ST7282 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,TN, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | ALL | |
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | UART | |
| Module lifetime(Hours) | 50,000-100,000 | |

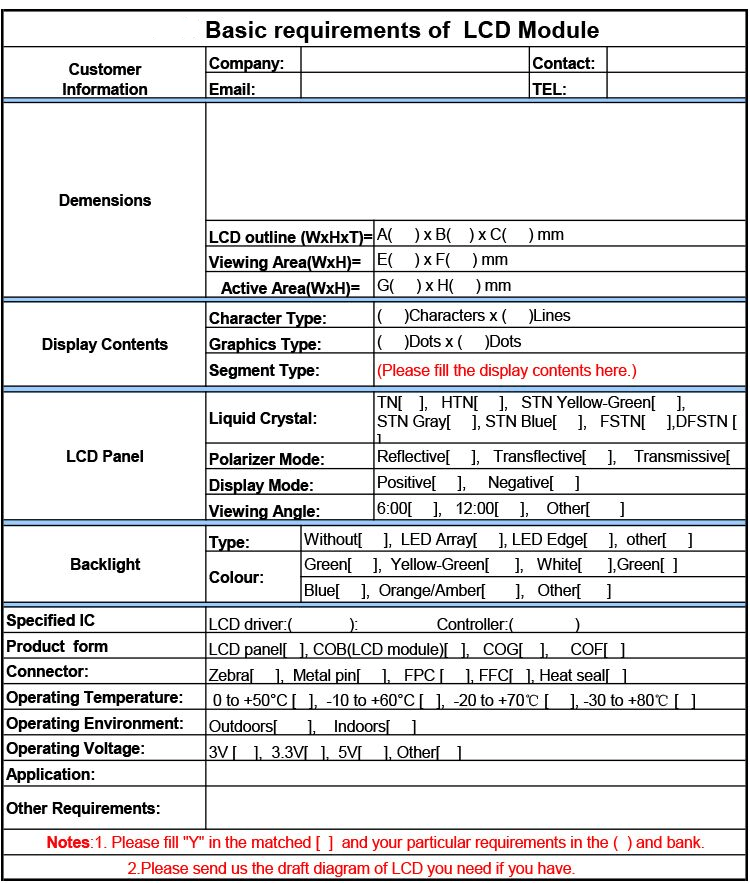

Customization:
We are focus on :
1. How can you guarantee quality for TFT LCD?
A: We have high quality glass suppliers. Such as, Tianma, Innolux, Hannstar and BOE. Our products must be 100% tested and 30 days charged aging.
2. What interfaces do you have for TFT LCD?
A: We have RGB, LVDS, MIPI and HDMI interfaces.
3. What size TFT LCD can you provide?
A: We can provide 1.3 inch to 32 inch TFT LCD.
4. Do you provide technical support?
A: Yes, we can provide free technical support. We have professional technical and R&D team.
5. What shipping ways do you support?
A: We support Fedex, DHL and UPS etc.
