INJECTOR and SPLITTER.
Complete set for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices such as D-Link, Ovislink, Senao, Wline, RouterBOARD, WRAP boards and other devices using passive POE injection.

Connector Barrel size is 2.1mm (5.5 x 2.1 mm)
Power Pins 4,5 + and 7,8 -

1. It is very simple to connect a passive PoE. On the lower part, we connect the Ethernet
RJ connector of passive PoE to the PC, Hub or Switch and connect the power adapter
to the power socket.
2. On the opposite end (RJ socket) we connect the Ethernet cable leading to the far end.

3. At the far end, we connect the end of the Ethernet cable to the RJ45 socket and connect
the power connectors and the Ethernet to the powered equipment. The equipment is now
connected by them.


Input / Output Specifications

DC Input Voltage:UP to 60VDC
DC Output Voltage:UP to 60VDC
Max Output Current 1.5A-2A Max.
Over Current Protection None
Work range:below 30 meters.

General Sepcifications:
Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F)
CASE OF MATERIAL PVC
Ethernet Date Rate 10/100Mbps
Ethernet Cable TIA/EIA 568 Cat.5
Humidity Up to 90%
Weight: 55g
DC Plugs 2.1mmx5.5mm
Length 170mm

PoE Splitter x1

PoE Injector x1

Power Over Ethernet Passive POE Injector 24V 48V

2 RJ45 connectors ( PoE and Lan port )
2.1*5.5mm & 2.5*5.5mm female DC plug

Ethernet Date Rate: 10/100/1000Mbps

Case of Material: ABS 94V-0/PC

CE/ROHS approval

Product Description:

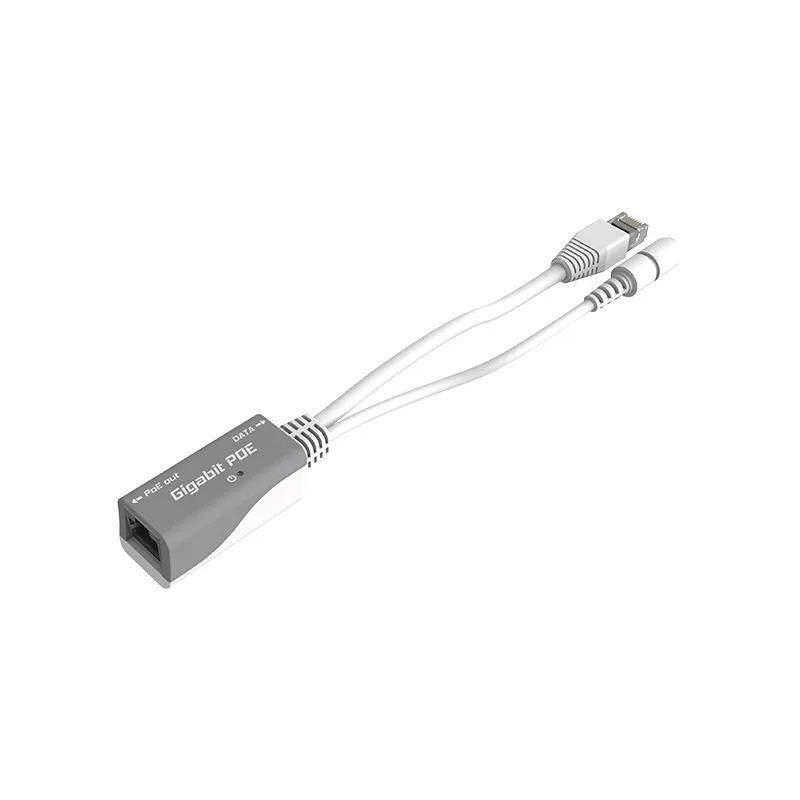

This Gigabit Power over Ethernet injector allows you to power Phones, Cameras, Access points and other devices remotely and eliminates the need for 110vac transformers at the far end.

This injector uses 802.3af mode b - pins 4/5 for plus power, and 7/8 for ground shared with data.

Many popular devices like Ubiquiti and Mikrotik use this method to centralize the power source - you can go for 328 ft with a 24v supply to a typical Access Point.

Connect the power supply you need (24v for Ubiquiti or Mikrotik, 48v for others) and reduce the mess of cables. Reboot devices from one central location. We use these in our own installations and are making them available for others.
