PIIHT234P8-2IR
PIISUN
| Quantity: | |
|---|---|
HDMI Splitter Extender Features：

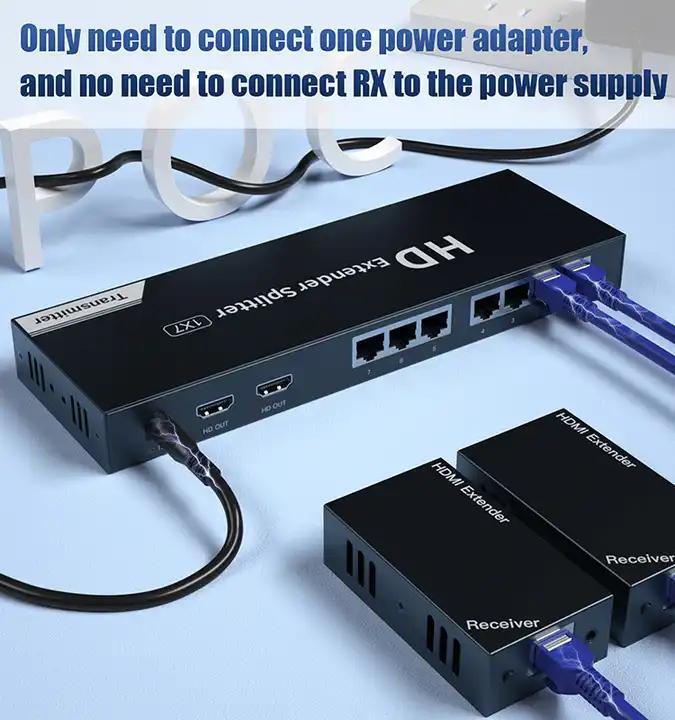

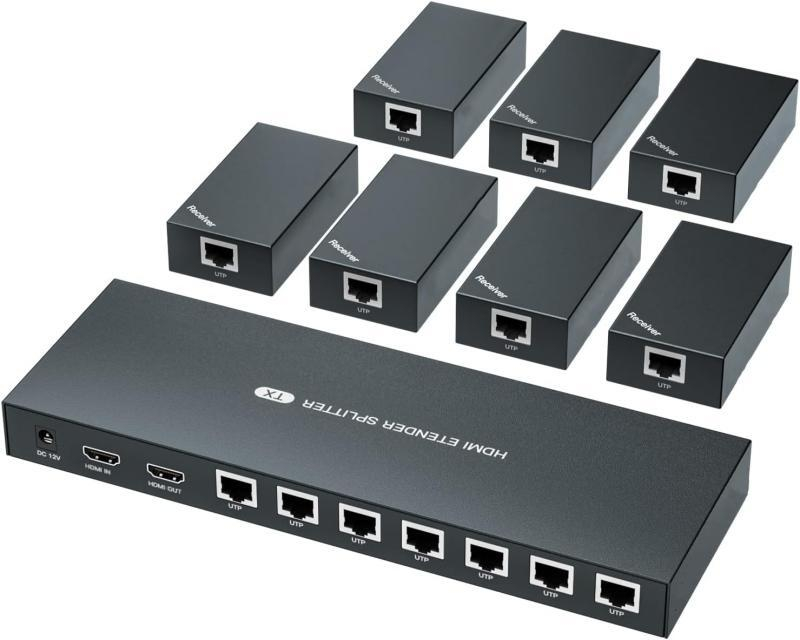

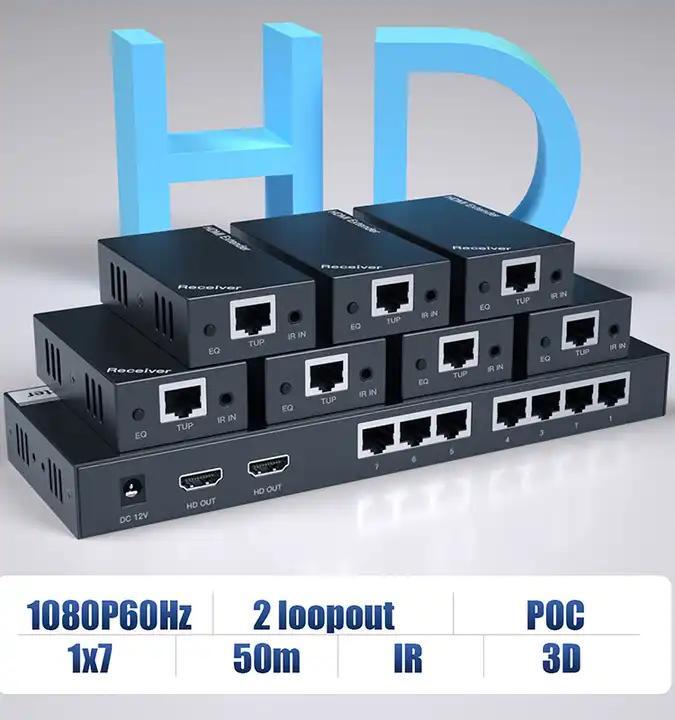

1.Transmits 1 HDMI video and audio signals up to 50M over a single CAT6 cable; 2.Support video resolution up to 1920*1080@60Hz, 3D signal; 3.Transform one channel HDMI input to 7 channels Cat6 signal output; 4.Support EDID copy function, can match many kinds of display device; 5.Support POC function; 6.Compliance with HDMI 1.3 and HDCP 1.2 standard; 7.High compatibility, can auto-match source and display device; 8.Built-in automatic adjustment system, make the image smooth, clear and stable; 9.Easy to install, plug and play;
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | 1920X1080@60Hz | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| Ethernet | Interface | RJ45 |
| Transmission distance | CAT6---50M | |
| Other | Power supply | The power adapter: DC 12V/1A |
| Power dissipation | MAX 8W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | TX:150*71*23mm/RX:81*45*23mm | |
| The warranty | 1 year free warranty | |
More customization , contact us directly please
HDMI Splitter Extender Features：
1.Transmits 1 HDMI video and audio signals up to 50M over a single CAT6 cable; 2.Support video resolution up to 1920*1080@60Hz, 3D signal; 3.Transform one channel HDMI input to 7 channels Cat6 signal output; 4.Support EDID copy function, can match many kinds of display device; 5.Support POC function; 6.Compliance with HDMI 1.3 and HDCP 1.2 standard; 7.High compatibility, can auto-match source and display device; 8.Built-in automatic adjustment system, make the image smooth, clear and stable; 9.Easy to install, plug and play;
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | 1920X1080@60Hz | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| Ethernet | Interface | RJ45 |
| Transmission distance | CAT6---50M | |
| Other | Power supply | The power adapter: DC 12V/1A |
| Power dissipation | MAX 8W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | TX:150*71*23mm/RX:81*45*23mm | |
| The warranty | 1 year free warranty | |
More customization , contact us directly please
