HDMI SPLITTER

User Manual

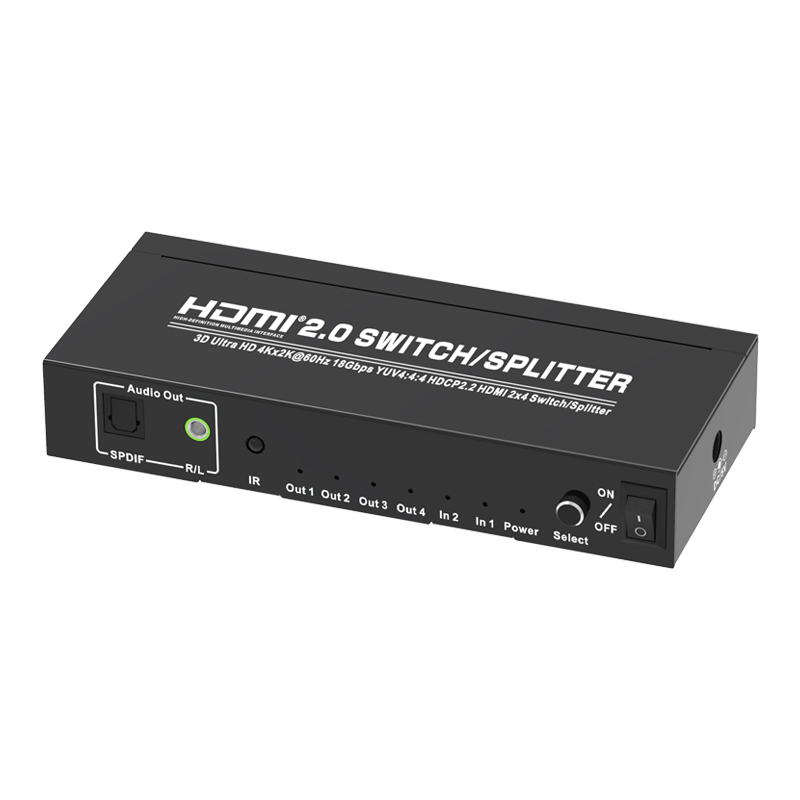

HDMI 2x4 Switch/Splitter

(3D Ultra HD 4Kx2K@60Hz HDCP2.2)

Bring High-Definition to your life!

Thank you for purchasing our product. To ensure safety and many years' trouble-free operation of the product, please read the manual carefully before using this product.

1.0 Introduction:

HDMI Switch/Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.

2.0 Features:

1.Fully HDMI 2.0 specification compliant. It is applicable to source device and high definition display device ,such as DVD and  HDTV which have HDMI Ports or digital ports and are compliant with HDCP1.1/1.2/1.4/2.2 protocol;

2.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,and up to

4k2k@60Hz with 12bit YCBCR 4:4:4;

3. Support 3D frame sequential video format up to 1080p@60;

4. Supports Output simultaneous display at different resolutions;

5. Support Audio Extrator;

6. Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC;

7. Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD;

8. Extend the transmission distance and improve transmission signal;

9. Compatible with DVI by using HDMI to DVI adapter;

10. Metal casing design and overall shielding without signal interference.

3.0 Packaging accessories:

1. HDMI 2×4 Switch/Splitter-------------------------------------1Pcs

2. Remote Control--------------------------------------------------1Pcs

3. 5V DC Power Adaptor------------------------------------------1Pcs

4. User Manual-------------------------------------------------------1Pcs

4.0 Technical parameters

HDMI Source Input Port-------------------------------------------------------------------2

Display Device Output Port---------------------------------------------------------------4

Source Port Connector----------------------------------------------------19 PIN HDMI

Display Device Port Connector------------------------------------------19 PIN HDMI

Output Audio Port---------------------------------------------------------SPDIFx1,R/Lx1

HDCP Compliant------------------------------------------------------------------------YES

Single Link Range--------------------------------------------------------------3840x2160

Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P

Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)

Deep Color------------------------------------------------------------------------------48 Bit

HDMI Version-----------------------------------------------------------------------HDMI2.0

Bandwidth---------------------------------------------------------------------Up to 600Mhz

Signal Speed-----------------------------------------------------------------Up to 18Gbps

The length of input cable------------------------------PS4≤10M；BLUE DVD≤10M

The length of output cable------------------------------------------------------------≤10M

The cable standard------------------------------------------------------28AWG HDMI2.0

Vertical Frequency Range-------------------------------------------------------------60Hz

Power Consumption(max.)--------------------------------------------------------4.5Watts

Operation Temperature-------------------------------------------------------------0℃-70℃

Working Voltage-------------------------------------------------------------------------DC 5V

Power Adaptor---------------------------------------------------------------------------5V 1A

Net Weight-------------------------------------------------------------------------------0.25kg

Dimension: L*W*H(mm)---------------------------------------------------------149x64x25

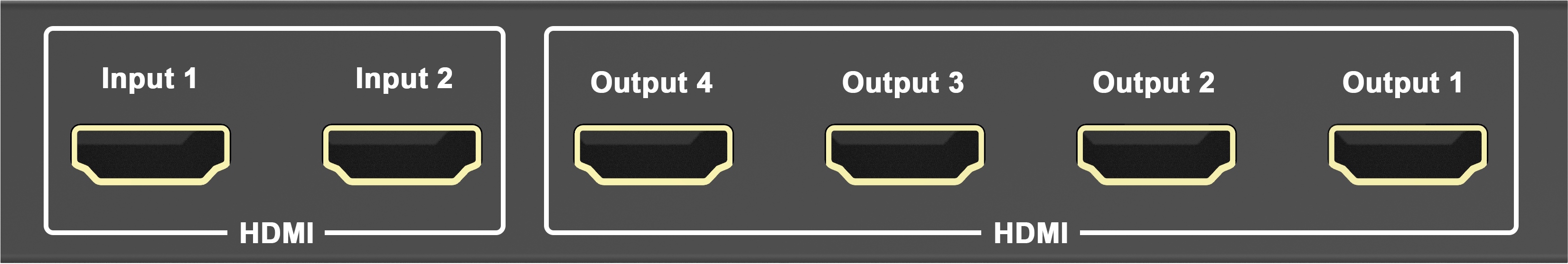

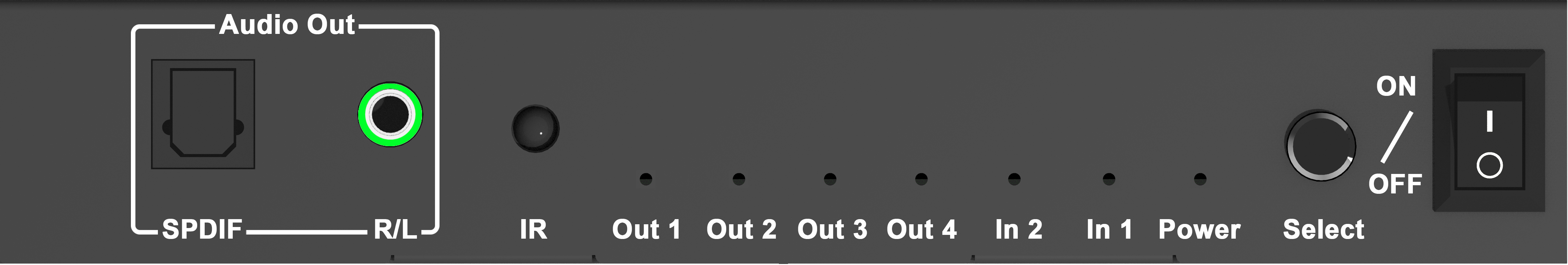

5.0 Panel Introduction

SPDIF ---------------------------------------Digital Audio Output Port

R/L ------------------------------------------Analog Audio Output Port

IR --------------------------------------------------------IR Receiver Port

Out1-4--------------------------------------------------Output1-4 Status

In1-2------------------------------------------------------Input1-2 Status

Power ------------------------------------------------------Power Status

Select ------------------------------------------------Input select button

ON/OFF ----------------------------------------------------Power button

HDMI Input1-2----------------------------------HDMI Input1-2 Ports

HDMI Output1-4-----------------------------HDMI Output1-4 Ports

DC5V---------------------------------------------DC Power Input Port

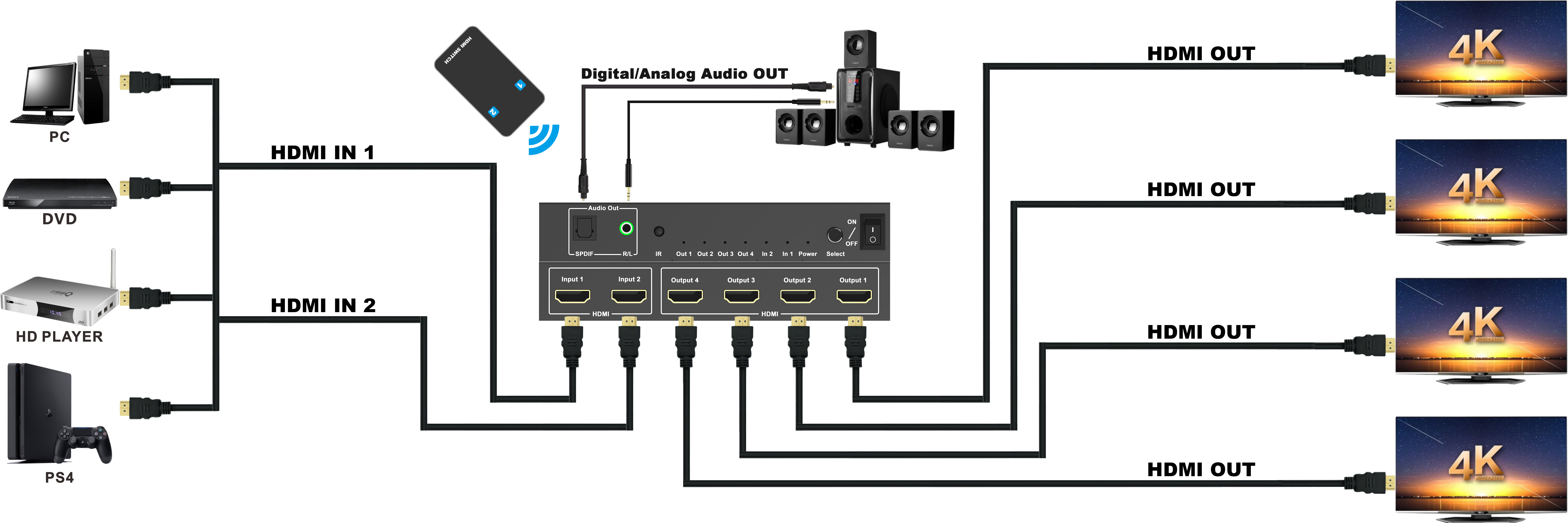

6.0 Connection diagram

6.01 Connect the HDMI cable between signal source and input port of Splitter.

6.02 Connect the HDMI cable between output port of Splitter and HDTV.

6.03 Connect splitter and power adapter.

6.04 Open the signal source and the power of HDTV, then it works.

6.05 Use the remote control or toggle button to select the source you want.

Explanation: With different brands of the input or output device, the length of the

connecting cables will differ too.

7.0 Installation and Precautions

To avoid electric shock , product damage and to protect your safety , please notice the following:

1.Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2.The equipment should not be placed under the sun , rain and damp or unventilated environment.

3.Liquid items should not be placed on the equipment.

4.Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5.Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6.Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
