HDMI SPLITTER
HDMI Splitter Over Network Cable
(3D Full HD 1080P)
Bring High-Definition to your life!
Thank you for purchasing our product. To ensure safety and many years' trouble-free operation of the product, please read the manual carefully before using this product.
1.0 Introduction:
HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.
HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
2.0 Features:
1.One HDMI input signal split to Multiple HDMI sink devices(outputs is the RJ45).
2.Fully HDMI 1.3 specification compliant. It is applicable to source device and high definition display device ,such as DVD and HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.
3.Support high resolutions up to 480i/p,576i/p,720i/p,1080i/p.
4.Support 30/36 dark, extended color space support, including:SYCC601,Adobe RGB,Adobe YCC601.
5.Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
6.Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.
7.Extend the transmission distance and improve transmission signal.
8.Support EDID Seting.
9.Support 20~60KHz IR working.
10.Support output up to 60metres CAT6 cable.
11.Metal casing design and overall shielding without signal interference.
12.Power supply (please refer to technical parameter).
3.0 Packaging accessories:
1. HDMI Splitter------------------------------------------------------1 PCS
2. HDMI Receiver--------------------------------------------(2/4/8) PCS
3. DC Power Adaptor ---------------------------------------(3/5/9) PCS
4. IR-TX Cable-------------------------------------------------------1 PCS
5. IR-RX Cable------------------------------------------------(2/4/8) PCS
6. User Manual-------------------------------------------------------1 PCS
HDMI Splitter 1 In 10 Out - 1x10 HDMI splitter distributes audio and video signal from a single source to 10 HDMI displays simultaneously. It works with all HDMI-integrated devices, such as PCs, laptops, fire sticks, game consoles (Xbox 360, Xbox One, PS3, PS4/5), projectors, TV receivers, televisions (including Apple TV / Samsung TV etc) , VR and others. Supports all common audio formats.
High Resolutions - Supports high resolutions up to 4K(3840*2160/30Hz), including 1080P/ 1080i/ 720p/ 576p/ 576i/ 480P/ 480i .Support 8-channel LPCM,24bit/192khz video.support 3D images
Digital Audio Format - Blu-ray DVD ,HD-DVD. It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Plug&Play - Connects Ten HDMI TVs at the same time to the same video source. It will output the same resolution to all displays.
HDMI Cable - the length of the signal source input cable can be 1-10M(16ft),output cable can be 1-15M(48ft).19+1AWG26 pin standard HDMI Cable is recommended.
Signal Speed & Power Adapter Format - HDMI Splitter provides 10.2 Gbps bandwidth for wide-ranging use. Allow you duplicate the screen to different rooms.Input:AC (50HZ, 60HZ) 100V-240V Output: DC12V/2A
Occasions and Events - Ideal for TV Market,group meetings, advertising, office, multimedia, learning, financial securities, presentations, video teaching, police surveillance, video broadcasting systems.

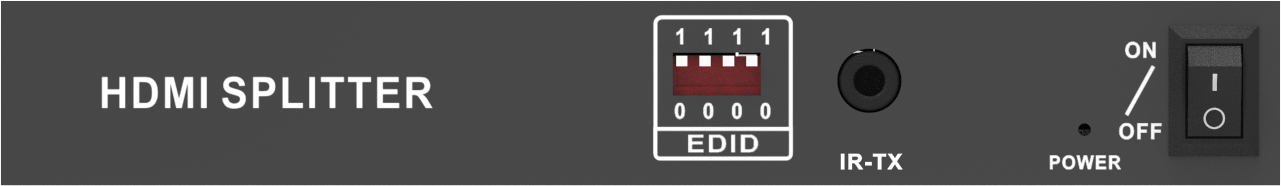

4.0 Panel Introduction

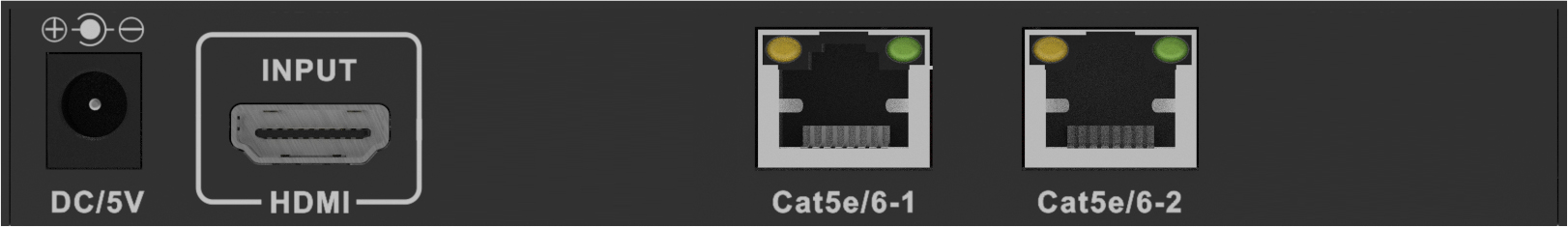

(4.1 HDMI 1x2 splitter over network cable)
EDID ---------------------------------------------------EDID seting switch
IR-TX ----------------------------------------------------IR transmitter port
Power --------------------------------------------Power status indication
ON/OFF--------------------------------------------------------Power button
DC/5V ----------------------------------------------------DC 5V Input Port
HDMI INPUT----------------------------------------------HDMI Input Port
Cat5e/6-1-2 -----------------------------Cat5e/1-2: RJ45 Output Ports

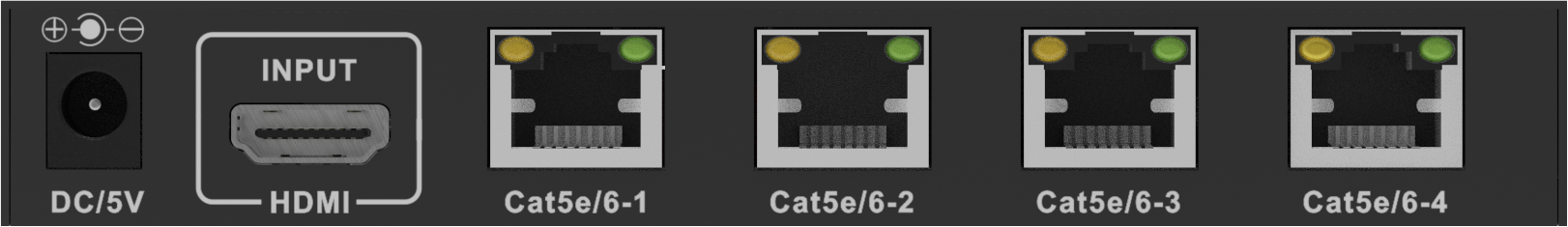

(4.2 HDMI 1x4 splitter over network cable)
EDID ---------------------------------------------------EDID seting switch
IR-TX ----------------------------------------------------IR transmitter port
Power --------------------------------------------Power status indication
ON/OFF--------------------------------------------------------Power button
DC/5V ----------------------------------------------------DC 5V Input Port
HDMI INPUT----------------------------------------------HDMI Input Port
Cat5e/6-1-4 -----------------------------Cat5e/1-4: RJ45 Output Ports

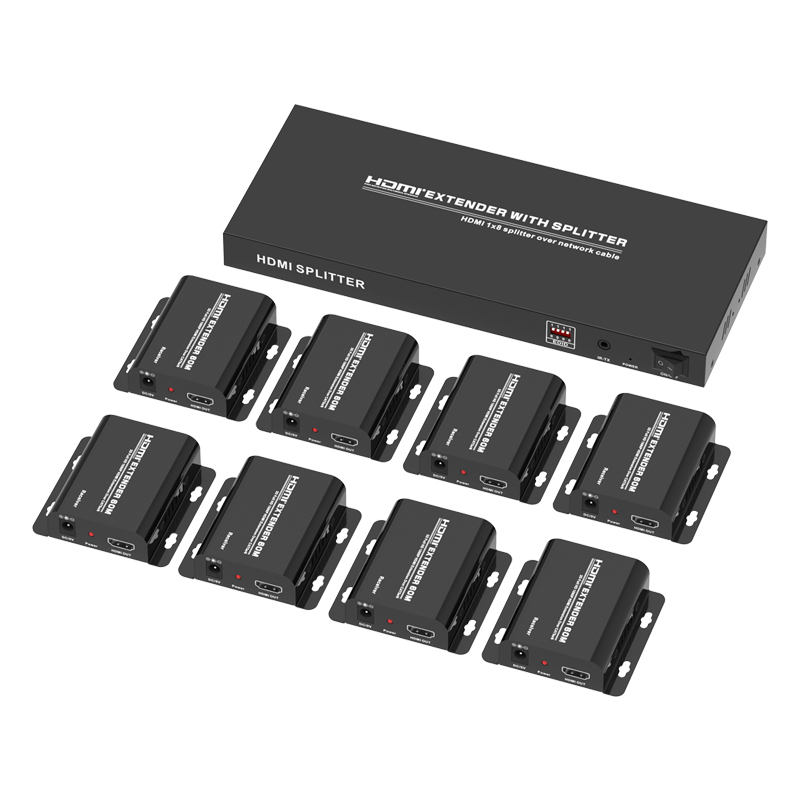

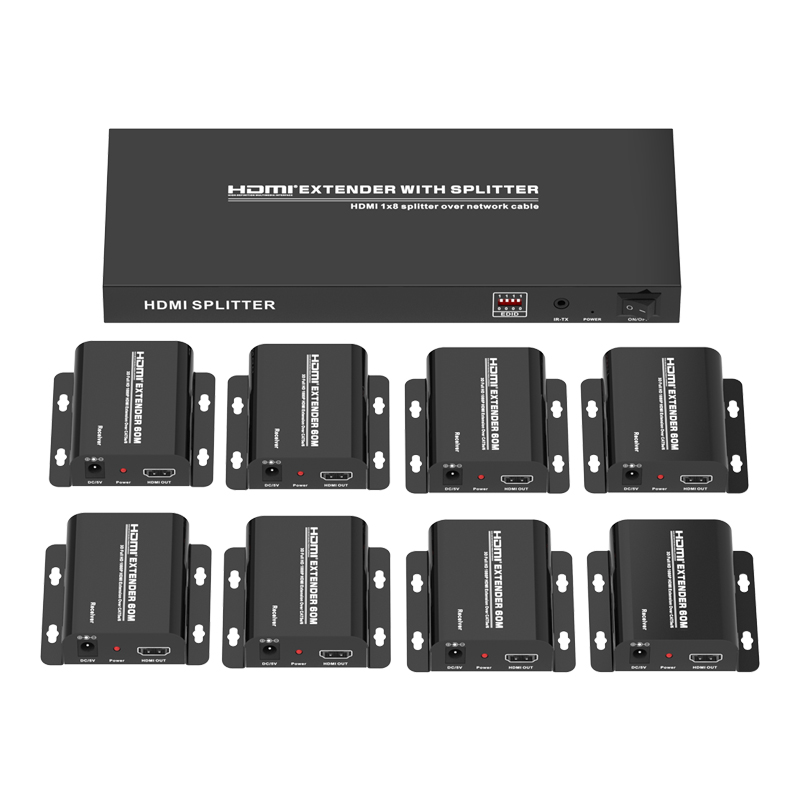

(4.3 HDMI 1x8 splitter over network cable)
EDID ---------------------------------------------------EDID seting switch
IR-TX ----------------------------------------------------IR transmitter port
Power --------------------------------------------Power status indication
ON/OFF--------------------------------------------------------Power button
DC/5V ----------------------------------------------------DC 5V Input Port
HDMI INPUT----------------------------------------------HDMI Input Port
Cat5e/6-1-8 -----------------------------Cat5e/1-8: RJ45 Output Ports

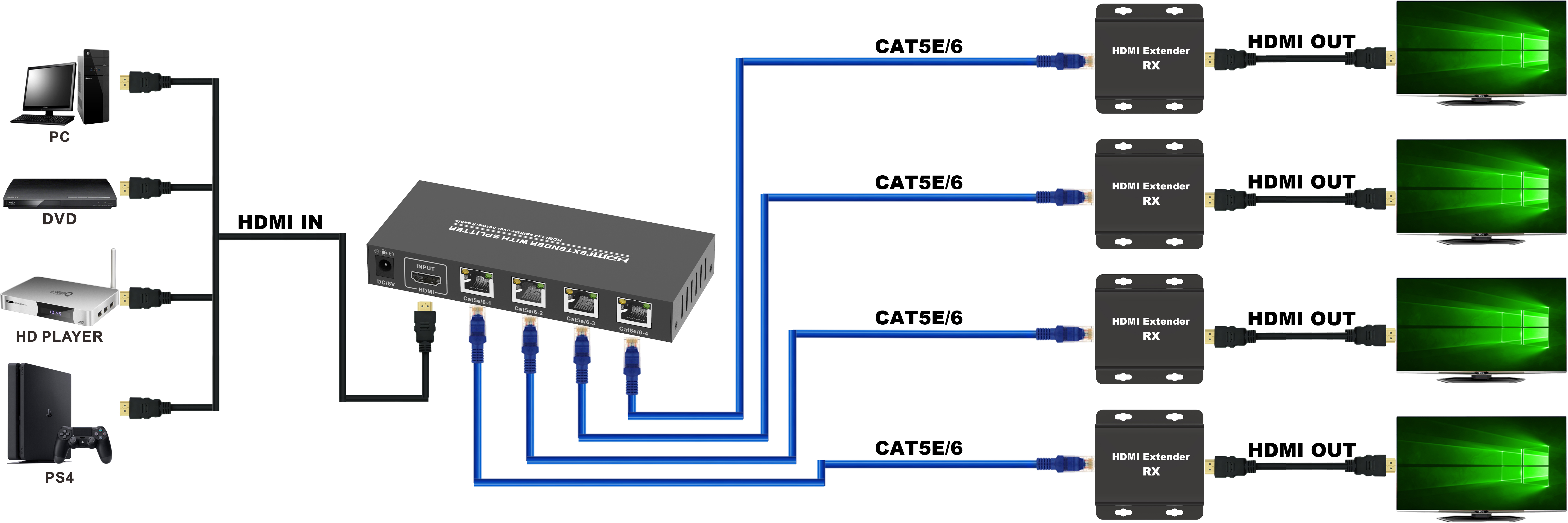

5.0 Connection diagram
Using splitter and receiver pairing, you can achieve the transmission of HDMI signals to 60 meters, through the Cat5e/6 Cable.
5.01 Connect the HDMI cable between signal source and input port of splitter.
5.02 Connect the Network cable between output port of splitter and receiver.
5.03 Connect the HDMI cable between output port of receiver and HDTV.
5.04 Connect splitter and Receiver power adapter.
5.05 Open the signal source and the power of HDTV, then it works.
Explanation: With different brands of the input or output device, the length of the
connecting cables will differ too.
6.0 Technical parameters
Product | HDMI 1x2 Splitter | HDMI 1x4 Splitter | HDMI 1x8 Splitter |
HDMI Source input port | 1 | 1 | 1 |
Display Device Outputs(RJ45) | 2 | 4 | 8 |
HDMI Resolution(Max 3D/1080P@60Hz) | √ | √ | √ |
Video color format | 24/30/36bit | 24/30/36bit | 24/30/36bit |
Audio format (DTS-HD/Dolby-trueHD/LPC7.1/DTS/Dolby-AC3/DSD) | √ | √ | √ |
Max band width | 250MHz | 250MHz | 250MHz |
Max baud rate | 6.25Gbps | 6.25Gbps | 6.25Gbps |
Input/Output TMDS Signal | 0.5-1.5Volts p-p(TTL) | 0.5-1.5Volts p-p(TTL) | 0.5-1.5Volts p-p(TTL) |
Input/Output DDC Signal | 5 Volts p-p(TTL) | 5 Volts p-p(TTL) | 5 Volts p-p(TTL) |
HDMI cable distance (＜5M 28AWG HDMI standard cable) | √ | √ | √ |
Network cable distance (＜60M 23AWG CAT5E/6 standard cable) | (8P8C) RJ45 Connector | (8P8C) RJ45 Connector | (8P8C) RJ45 Connector |
Max working current | 500mA | 800mA | 1500mA |
Splitter Power adapter Input/Output format | Input:AC(100-240V) Output:DC(5V 1A) | Input:AC(100-240V) Output:DC(5V 1A) | Input:AC(100-240V) Output:DC(5V 2A) |
Receiver Power adapter Input/Output format | Input:AC(100-240V) Output:DC(5V 1A) | Input:AC(100-240V) Output:DC(5V 1A) | Input:AC(100-240V) Output:DC(5V 1A) |
Operation Temperature | 0-70℃ | 0-70℃ | 0-70℃ |
Dimension(LxWxH)-Splitter | 149x64x21.5(mm) | 149x64x21.5(mm) | 277x110x25(mm) |
Dimension(LxWxH)-Receiver | 77x75x22(mm) | 77x75x22(mm) | 77x75x22(mm) |
Net Weight(Splitter+Receiver) | 450g | 650g | 1550g |
7.0 EDID Selector: Select HDMI output signal format via EDID Selector.
Number | EDID Selector | Description |
1 | 0000 | 2D,1080P,Stereo-Audio-2.0 |
2 | 0001 | 2D,1080P,Dolby-DTS-5.1 |
3 | 0010 | 2D,1080P,HD-Audio-7.1 |
4 | 0100 | 3D,1080P,Stereo-Audio-2.0 |
5 | 1000 | 3D,1080P,Dolby-DTS-5.1 |
6 | 1100 | 3D,1080P,HD-Audio-7.1 |
Other | HDMI EXTENDER | |
8.0 Installation and Precautions
To avoid electric shock , product damage and to protect your safety , please notice the following:
1.Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.
2.The equipment should not be placed under the sun , rain and damp or unventilated environment.
3.Liquid items should not be placed on the equipment.
4.Do not install the equipment near heat sources such as fire , power , or other amplifiers that
produce heat.
5.Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.
6.Do not demolish the equipment by yourself ; it should be maintained by professional
maintenance staff.
