HDMI SPLITTER
User Manual
HDMI 1x16 Splitter
(3D Ultra HD 4Kx2K)
Bring High-Definition to your life!
Thank you for purchasing our product. To ensure safety and many years' trouble-free operation of the product, please read the manual carefully before using this product.
1.0 Introduction:
HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.
HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
2.0 Features:
1.Fully HDMI 1.4 specification compliant. It is applicable to source device and high definition display device ,such as DVD and HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.
2.Support high resolutions up to including 480i/p,576i/p,720i/p,1080i/p and 4Kx2K@25/30Hz
3.Support 30/36 dark, extended color space support, including:SYCC601、Adobe RGB、AdobeYCC601
4.Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
5.Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.
6.Extend the transmission distance and improve transmission signal.
7.Compatible with DVI by using HDMI to DVI adapter.
8.Plug- and -play.
9.Metal casing design and overall shielding without signal interference.
10.Led indicates signal and power mode.
11.Power supply (please refer to technical parameter).
12.Support 3D

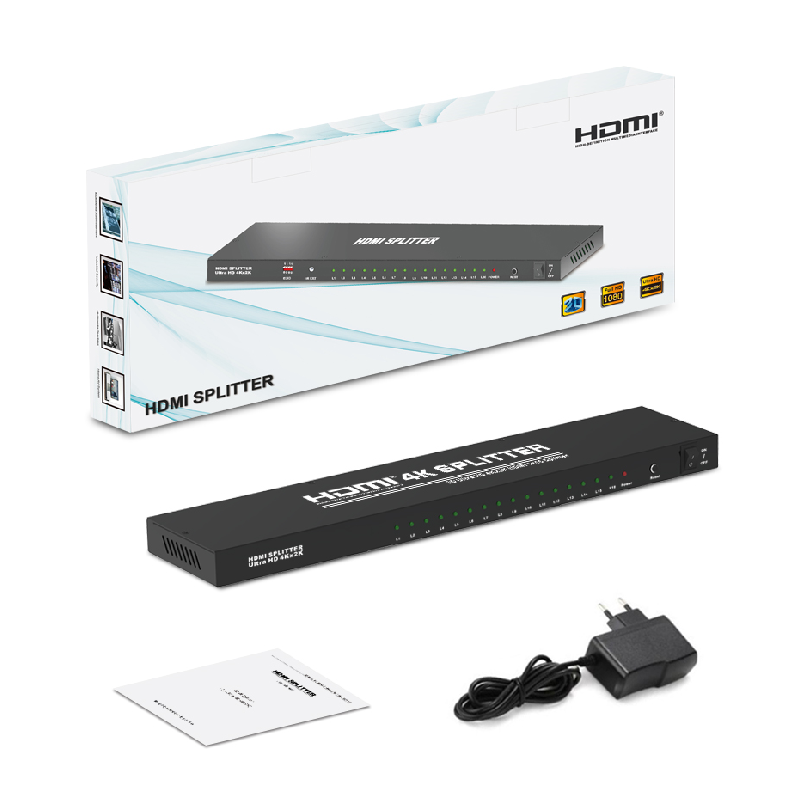

3.0 Packaging accessories:
1. HDMI 1×16 Splitter-----------------------------------------------1 Pcs
2. 5V DC Power Adaptor-------------------------------------------1 Pcs
3. User Manual-------------------------------------------------------1 Pcs
4.0 Technical parameters
HDMI Source Input Port-------------------------------------------------------------------1
Display Device Output Port-------------------------------------------------------------16
Source Port Connector----------------------------------------------------19 PIN HDMI
Display Device Port Connector------------------------------------------19 PIN HDMI
HDCP Compliant------------------------------------------------------------------------YES
Single Link Range--------------------------------------------------------------3840x2160
Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P
Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)
Deep Color------------------------------------------------------------------------------48 Bit
HDMI Version-----------------------------------------------------------------------HDMI1.4
Bandwidth---------------------------------------------------------------------Up to 340Mhz
Signal Speed---------------------------------------------------------------Up to 10.2Gbps
The length of input cable------------------------------PS4≤15M；BLUE DVD≤15M
The length of output cable------------------------------------------------------------≤25M
The cable standard------------------------------------------------------26AWG HDMI1.4
Vertical Frequency Range-------------------------------------------------------------60Hz
Power Consumption(max.)------------------------------------------------------17.5Watts
Operation Temperature-------------------------------------------------------------0℃-70℃
Working Voltage-------------------------------------------------------------------------DC 5V
Power Adaptor---------------------------------------------------------------------------5V 3A
Net Weight---------------------------------------------------------------------------------1.3Kg
Dimension: L*W*H(mm)----------------------------------------------------------418x90x25

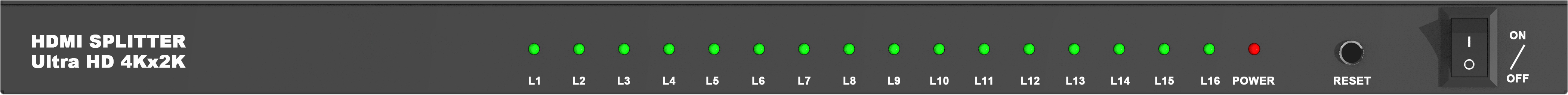

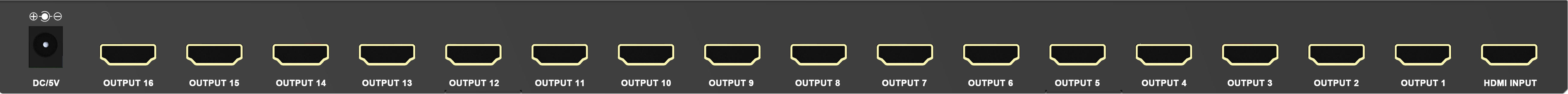

5.0 Panel Introduction
L1-L16------------------------------------------HDMI Input Indicator
Power-------------------------------------------------Power Indicator
Reset-----------------------------------------------------Reset button
ON/OFF-------------------------------------------------Power Switch
DC/5V------------------------------------------------Power Input port
HDMI Output16-1------------------------------HDMI 1-16 outputs
HDMI Input------------------------------------------HDMI Input port

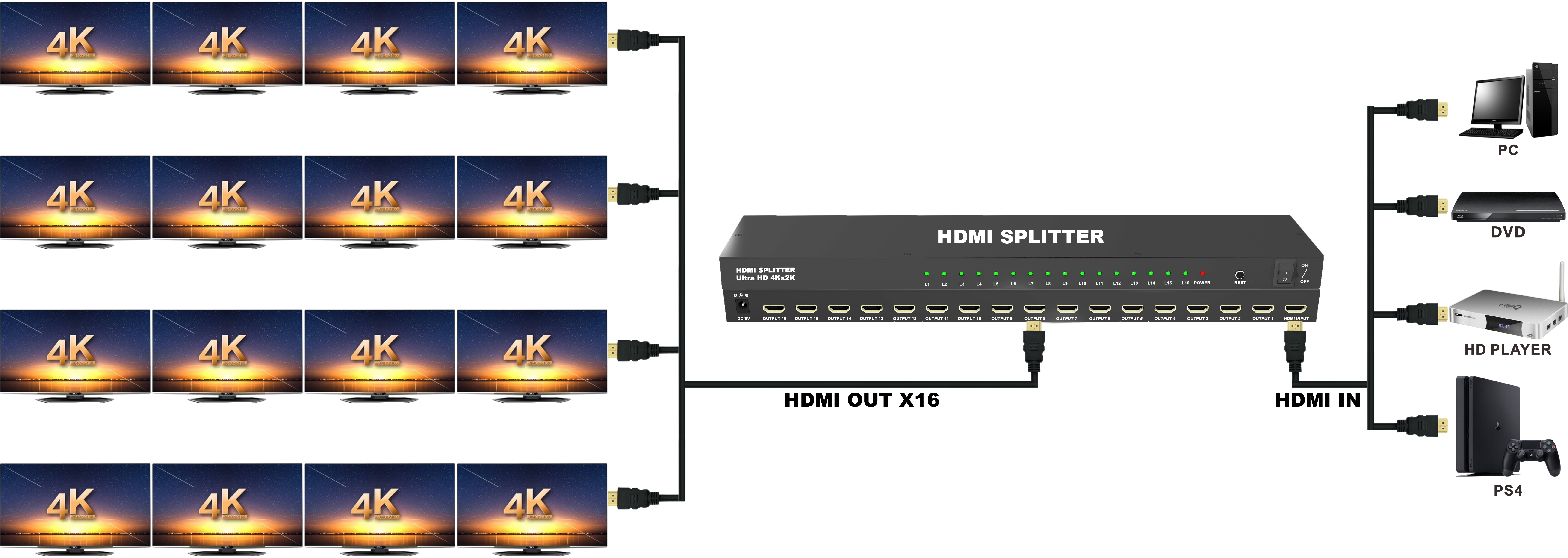

6.0 Connection diagram
Before installation, please make sure all devices you wish to connect have been turned off.
6.01 Connect the HDMI cable between signal source and input port of Splitter.
6.02 Connect the HDMI cable between output port of Splitter and HDTV.
6.03 Connect splitter and power adapter.
6.04 Open the signal source and the power of HDTV, then it works.
Explanation: With different brands of the input or output device, the length of the connecting cables will differ too.
7.0 Installation and Precautions
To avoid electric shock , product damage and to protect your safety , please notice the following:
1.Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.
2.The equipment should not be placed under the sun , rain and damp or unventilated environment.
3.Liquid items should not be placed on the equipment.
4.Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.
5.Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.
6.Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
Split one HDMI 2.0 input signal to sixteen HDMI output signals identical to the input signal
4K 18 Gbps Powered HDMI Splitter
Input: 1x HDMI & Outputs: 16x HDMI
Comes with EDID management
Supported resolution: up to 4K/60Hz, 1080p, 720p, VGA to WUXGA
Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, SACD, MPCM, Essentially all available audio options
Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation
Compact in size
Easy plug & play installation
HDMI 2.0, HDCP 2.2 Compliant
Includes 100-240 50/60 Hz auto switching power supply for use anywhere in the world
Lifetime PIISUN Tech Support & 12-Month Manufacturer's Warranty
The PIISUN is a reliable factory powered splitter that will take HDMI 2.0 signal up to 4K@60Hz and duplicate the signal to up to 16 HDMI displays simultaneously, creating an impressive lossless image or audio transmission via HDMI cable.
Compact, durable and easy to set up and operate. Ideal for trade show, conference room, lecture halls, bedroom, living room, kitchen room and backyard.
Please note that this HDMI 2.0 splitter will duplicate the source to the sixteen output displays. It can’t be used to extend a desktop for PC or a laptop. If the connected displays do not support the same resolution then the splitter will lower the output resolution to the next best resolution supported by both displays and same goes with the audio signal. We recommend using this HDMI 2.0 splitter with high quality HDMI cables 30 feet or less.
