3D HDMI SWITCHER

8K 60Hz HDMI ARC Switcher,5 in 1 Out 4k 2.1 HDMI Splitter, 5port 4K 120hz HDMI Selector Switch Box with IR Remote Support CEC, VRR, HDR10, Dolby Atmos, ARC for PS5, Xbox Series X, Fire Stick Etc

HDMI 5x1 Switcher

(3D Ultra HD 8K)

1.0 DESCRIPTION

HDMI Switch is a product that can switch multi-group HDMI signals to one high definition display device such as HDTV by using manual push button. Doing so can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.

2.0 FEATURES

1. To support the simultaneous transmission of five video streams, multiple

  video signals can be transmitted to the same screen;

2. Switching is done via itself automatically when signal present on the ports;

3. Compliant with HDMI2.1, HDCP2.3;

4. Support high resolutions up to 480i/p,576p,720i/p,1080i/p,4K@120Hz,8K@60Hz;

5. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio;

6. Supports IR and Panel button control;

7. Compatible with DVI by using HDMI TO DVI adapter;

8.Extend the transmission distance and improve transmission signal;

9.Metal casing design and overall shielding without signal interference;

10.Power supply(Please refer to technical parameter).

3.0 PACKAGING ACCESSORIES

When first unpacking your extender please check to see if the following items are included:

HDMI 5x1 switcher-------------------------------------------1PCS

USB Power Cable--------------------------------------------1PCS

Remote control------------------------------------------------1PCS

User Manual---------------------------------------------------1PCS

4.0 TECHNICAL PARAMETER IN DETAIL

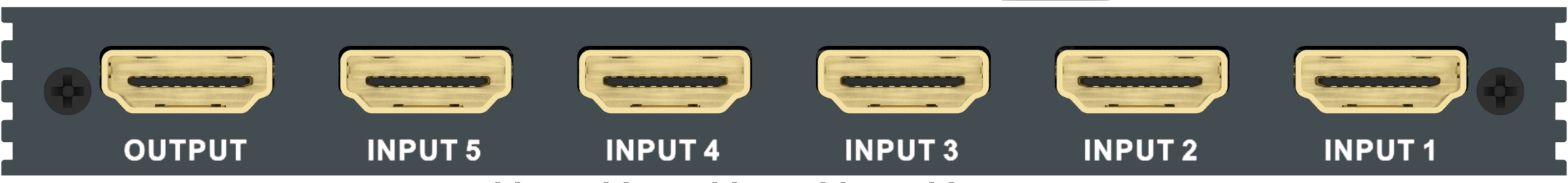

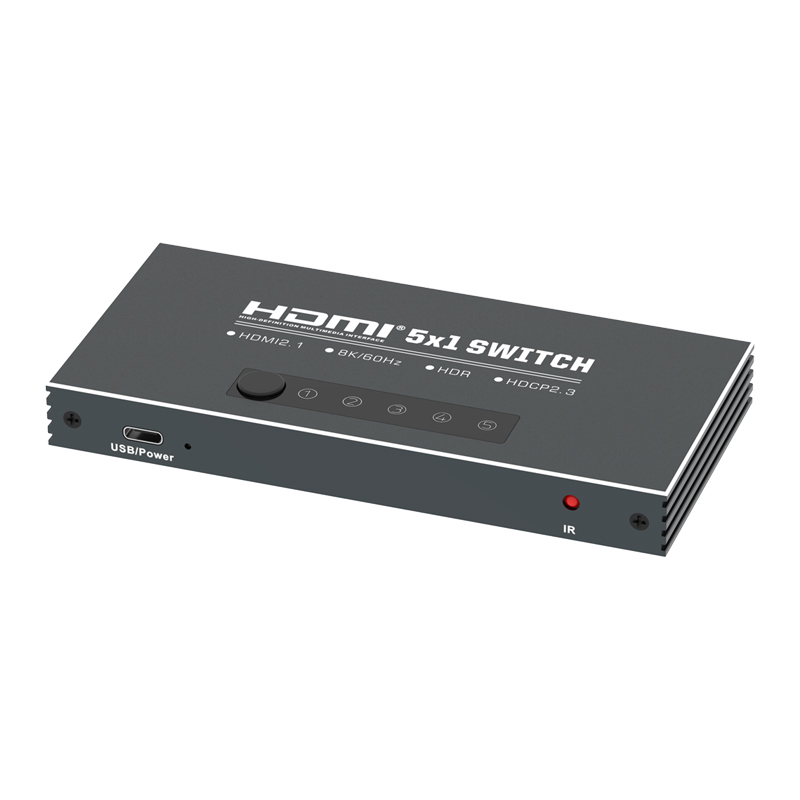

5.0 PANEL INTRODUCTION

USB/Power -------------------------------DC Power Input Port

IR -------------------------------------------------IR Receiver Port

HDMI OUTPUT ------------------------------HDMI Output Port

HDMI INPUT1-5 ------------------------------HDMI Input Ports

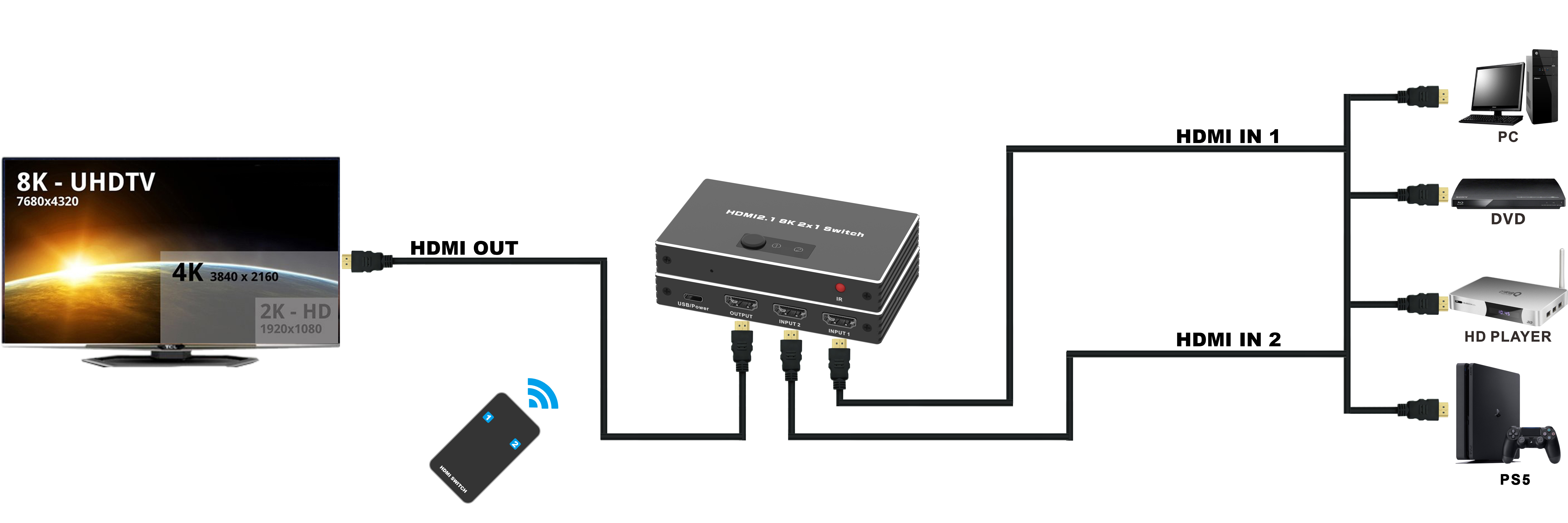

6.0 APPLICATION

It switches several routes HDMI signals from source device such as DVD, Satellite Receiver, Set-top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat Panel Display.

6.1 Connect high definition display device such as HDTV TO HDMI Switch's

   output port.

6.2 Connect source device such as DVD and ps3 TO HDMI Switch's input

   ports.

6.3 After all the connections have been successfully done and then power on,

   you can select the information you want to view or listen

Note: When HDMI Switch works, make sure the source device and display device are well connected with cables. In order to make the relevant ports work properly, firstly power on switch, the power on source device.

7.0 INSTALLATION AND PRECAUTIONS

To avoid electric shock , product damage and to protect your safety , please notice the following:

1.Please slowly plug or unplug signal cables and do not often plug , unplug , or

 shake them.

2.The equipment should not be placed under the sun , rain and damp or

 unventilated environment.

3.Liquid items should not be placed on the equipment.

4.Do not install the equipment near heat sources such as fire , power , or other

 amplifiers that produce heat.

5.Do not insert the metal or other objects to the equipment in addition to

 connecting cables to ports.

6.Do not demolish the equipment by yourself ; it should be maintained by

 professional maintenance staff.

About this item

• ✅【8K 60HZ hdmi ARC switch 】This is a well-made HDMI 2.1 switch with 5 HDMI inputs and 1 output.Just connect it to HDMI 2.1 port on your TV or monitor, you can use it to connect up to 5 independent HDMI devices, such as PS5, XBOX Series X. Support ARC, currently only Input1 port can use ARC to stream audio from TV to soundbar, plug and play, power on with 5V/1A

• ✅【Remote Control】The hdmi switcher with a suitable size remote control, which will not be easily lost. The button is sensitive, remote control distance is farther. It can also replace part of the TV remote control, such as adjusting the sound level, switching on/off. It is useful in case of emergency when you can't find the TV remote. Also included 8pcs sticky labels so that you can take a note of which device is plugged into each of the 5 ports. Note that it doesn’t include AAA batteries

• ✅【Iphone APP Control】The remote control that comes with the hdmi switcher can't be found for the time being, it's okay, the cell phone APP can also control it, currently only supports iphone phones. Each channel device icon on the phone at a glance, you do not have to switch one by one in turn. Directly click the icon of the device you want, it will quickly and accurately switch to this channel. You can also control the voume/ TV menu etc, and exactly the same functions as the remote control.

• ✅【AUTO Switch on/off】If you don't need the automatic switching function, you can easily disable it. Factory default this function is off, you can turn it on or off by pressing and holding the "SWITCH" button on the front panel of the Hdmi splitter for 3 seconds or by pressing the "AUTO" button on the remote control or through the Iphone mobile app, this new function will bring you great convenience.
