3D HDMI SWITCHER

User Manual

HDMI 8x1 Switcher

(3D Ultra HD 4Kx2K@60Hz HDCP2.2)

Bring High-Definition to your life!Thank you for purchasing our product. To ensure safety and many years' Trouble-free operation of the product, Please read the manual carefully before using this product.

1.0 DESCRIPTION

HDMI Switch is a product that can switch multi-group HDMI signals to one high definition display device such as HDTV by using manual push button. Doing so can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.

2.0 FEATURES

1. To support the simultaneous transmission of two video streams, multiple

  video signals can be transmitted to the same screen;

2. Switching is done via itself automatically when signal present on the ports;

3. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

4. Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR

  4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

5. Support 3D frame sequential video format up to 1080p@60;

6. Support high resolution VESA mode video format up to QSXGA@60Hz;

7. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio;

8. Supports IR and Panel button control;

9. Compatible with DVI by using HDMI TO DVI adapter;

10.Extend the transmission distance and improve transmission signal;

11.Metal casing design and overall shielding without signal interference;

12.Power supply(Please refer to technical parameter).

3.0 PACKAGING ACCESSORIES

When first unpacking your extender please check to see if the following items are included:

HDMI 8x1 switcher-------------------------------------------1PCS

5V DC Power Adaptor---------------------------------------1PCS

Remote control------------------------------------------------1PCS

IR Receiver Extension Cable -----------------------------1PCS

User Manual---------------------------------------------------1PCS

4.0 TECHNICAL PARAMETER IN DETAIL

Product 8X1 HDMI SWITCH

HDMI Source Input Port 8

Display Device Output Port 1

Source Port Connector 19 PIN HDMI(A TYPE)

Display Device Port Connector 19 PIN HDMI(A TYPE)

HDCP Compliant YES

Source Device Selection Push Button IR Remote Control

Input Video Signal 0.5-1.0 Volts P-P

Input DDC signal 5 Volts P-P(TTL)

Deep Color 48 bit

Single Link Range 3840x2160@60

HDMI Version HDMI2.0

Bandwidth Up to 600Mhz

Signal Speed Up to 18Gbps

The length of input cable ≤10M

The length of output cable ≤10M

The cable standard 28AWG HDMI2.0

Vertical Frequency Range 60Hz

Power Consumption(max) 6.5 Watts

Operation Temperature 0℃ TO 70℃

Working Voltage DC 5V

Power Adaptor 5V 2A

Net Weight(Kg) 0.8

Dimension: L×W×H(mm) 276×110×25

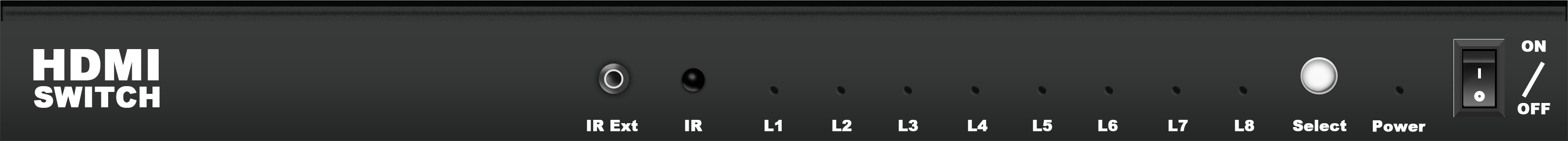

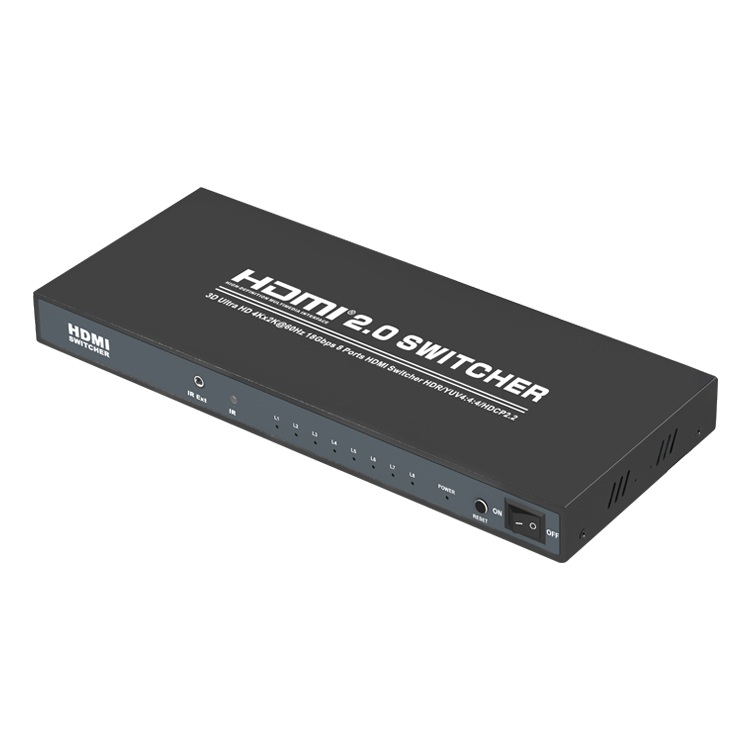

5.0 PANEL INTRODUCTION

IR Ext ------------------------------IR Receiver Extension Port

IR -------------------------------------------------IR Receiver Port

L1-L8 -----------------------------------HDMI Input1-8 Indicator

SELECT -----------------------------------Input Selector button

POWER ------------------------------------------Power Indicator

ON/OFF ---------------------------------------------Power switch

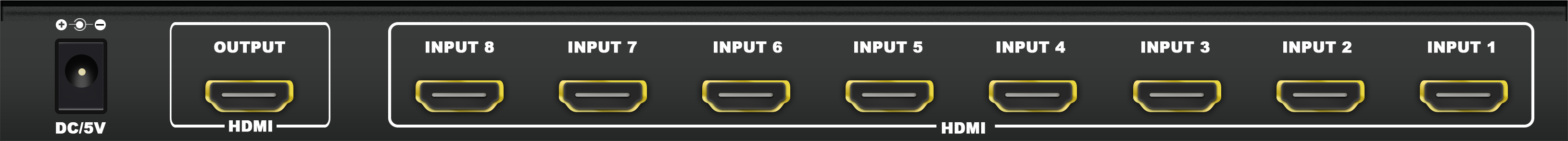

DC/5V --------------------------------------DC Power Input Port

HDMI OUTPUT ------------------------------HDMI Output Port

HDMI INPUT1-8 ------------------------------HDMI Input Ports

6.0 APPLICATION

It switches several routes HDMI signals from source device such as DVD, Satellite Receiver, Set-top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat Panel Display.

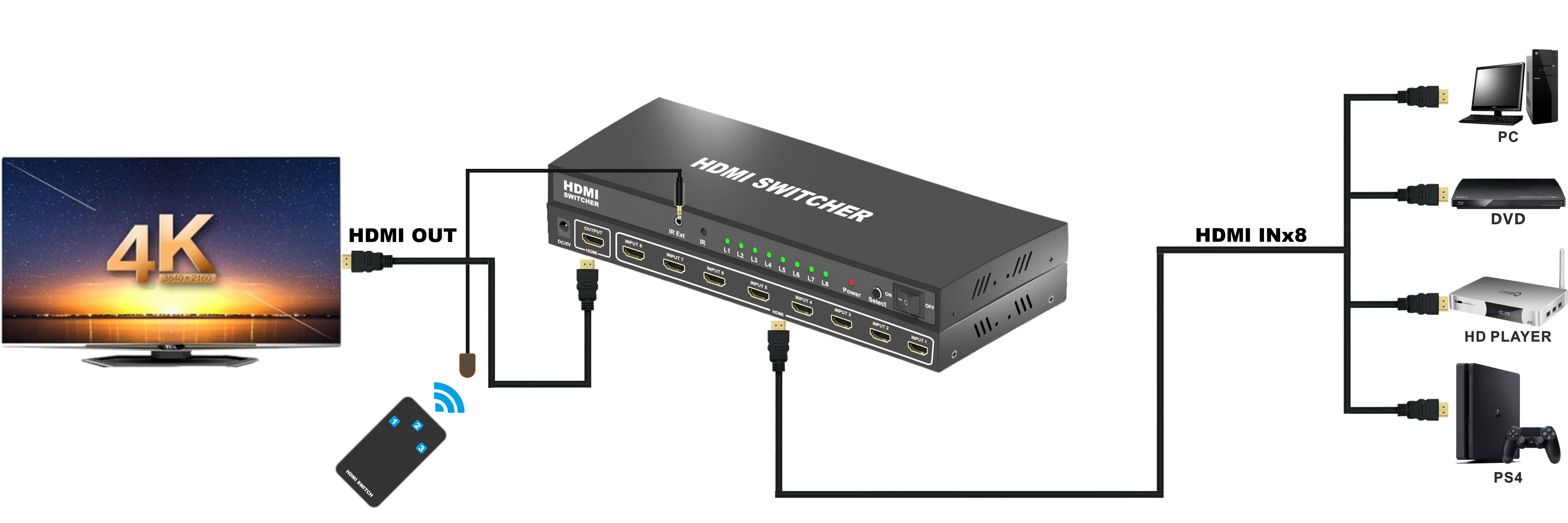

6.1 Connect high definition display device such as HDTV TO HDMI Switch's

   output port.

6.2 Connect source device such as DVD and ps4 TO HDMI Switch's input

   ports.

6.3 After all the connections have been successfully done and then power on,

   you can select the information you want to view or listen

Note: When HDMI Switch works, make sure the source device and display device are well connected with cables. In order to make the relevant ports work properly, firstly power on switch, the power on source device.

7.0 INSTALLATION AND PRECAUTIONS

To avoid electric shock , product damage and to protect your safety , please notice the following:

1.Please slowly plug or unplug signal cables and do not often plug , unplug , or

 shake them.

2.The equipment should not be placed under the sun , rain and damp or

 unventilated environment.

3.Liquid items should not be placed on the equipment.

4.Do not install the equipment near heat sources such as fire , power , or other

 amplifiers that produce heat.

5.Do not insert the metal or other objects to the equipment in addition to

 connecting cables to ports.

6.Do not demolish the equipment by yourself ; it should be maintained by

 professional maintenance staff.
