HDMI EXTENDER

• . - HDMI Over Ethernet Extender Support HDMI 1.4 & 1.3 signal /deep color 36bit/xv-YCC/1080p 24fs/DTS-HD.v-YCC/1080p 24fs/DTS-HD.

• -  For 200ft transmit distance via CAT6/CAT7 LAN cable. For 165ft transmit distance via CAT5e cable.  Zero Video Latency. NOTE: We recommend using direct HDMI to HDMI connections, avoid using signal converters or adapters at all costs.

• - HDCP 1.2/1.4 ; 1080P/1080i/720P/576P/576i/480P/480i; 3D video supported

• & - 36bit(CAT7); 24bit(CAT6); Supports 2-channel PCM audio only. Supports Dolby Digital / DTS pass through if copied EDID from right display devices.

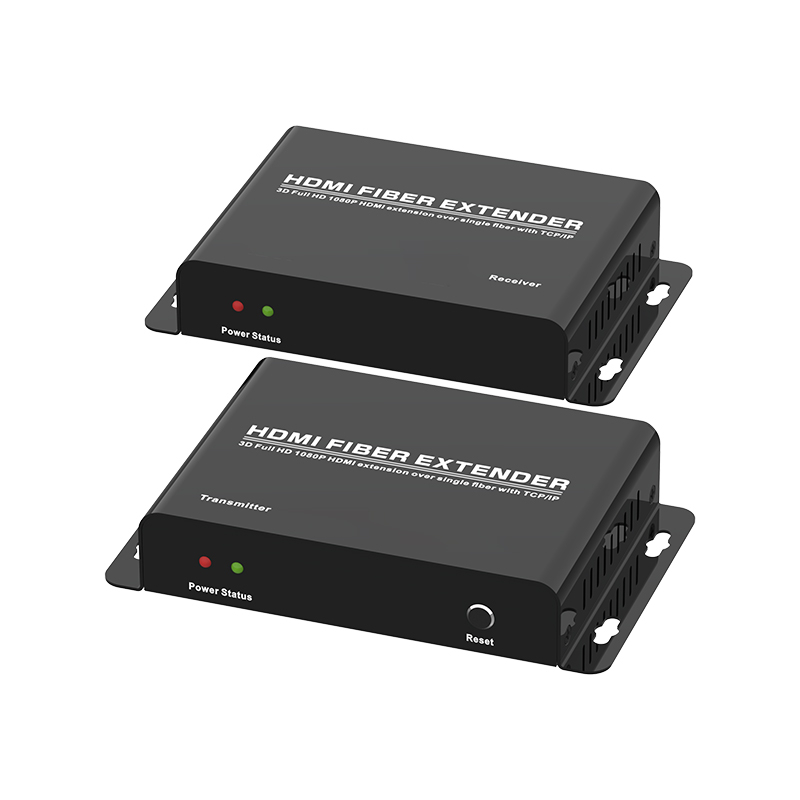

HDMI Extender Over Single Fiber（20KM）

(Full HD 1080P TCP/IP)

Bring High-Definition to your life!

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Overview:

The  HDMI over single ethernet extender is able to extend a 1080P 60Hz audio/video signal up to 200ft., which is four time the transmission distance of a typical HDMI cable. Enjoy deep color video and lossless compressed audio, and utilize the EDID copy function to eliminate any incompatibility issues that may occur within the setup. The item is a great addition to an A/V distribution room, and it's easy installation make it perfect for any residential or commercial installation.

Specifications:

• Transmission distance up to 200ft. over single ethernet cable. (For max distance, use Cat6/7 cable)

• Supports Deep Color up to 36bits

• Lossless compressed digital audio

• Data transfer speed: 6.75Gbps

• EDID copy function to avoid incompatibility issues

2.0 FEATURES

1.Signal transmission :SC fiber(recommended) cables up to 20000 meters instead of HDMI cables are connected between TX and RX Extender.

2.Support HDMI1.3,HDCP 1.2 protocol compliant.

3.Support input/output resolution:480p,576p,720p,1080p.

4.Support point-to-point mode, one point-to-many mode.

5.Protocol compliant TCP/IP one transmitter and multiple receivers,with a maximum of 253 receivers.

6.Support IR control, you can control STB or Blue-Ray DVD at receiving site by remote control.

7.Support IR remote control 20~60KHz,NEC.

8.Installs in minutes,No loss of quality.

SPECIFICATION

HDMI Version-----------------------------------------------------------------HDMI1.3a

Transmitter Input Port --------------------------------------------------HDMIx1(AF)

Transmitter Output Ports -------------------HDMIx1(AF),SC Fiberx1,IR TXx1

Receiver Input Ports------------------------------------------SC Fiberx1,IR RXx1

Receiver Output Port----------------------------------------------------HDMIx1(AF)

Frequency Bandwidth--------------------------------------2.25Gbps (single link)

Input/Output Resolutions---------------------------------480p,576p,720p,1080p

Audio-------------------------------------------Sample rate:32kHz,44.1kHz,48kHz

IR remote control-----------------------------------------------------20~60KHz;NEC

ESD Protection Human Body Model ---------------± 8kV (air-gap discharge)

                                         ± 4kV (contact discharge)

Operating Temperature--------------------------------0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature ---------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity---------------------------------20~90% RH (non-condensing)

Dimensions (mm)-----------------------------------------------------------120x73x22

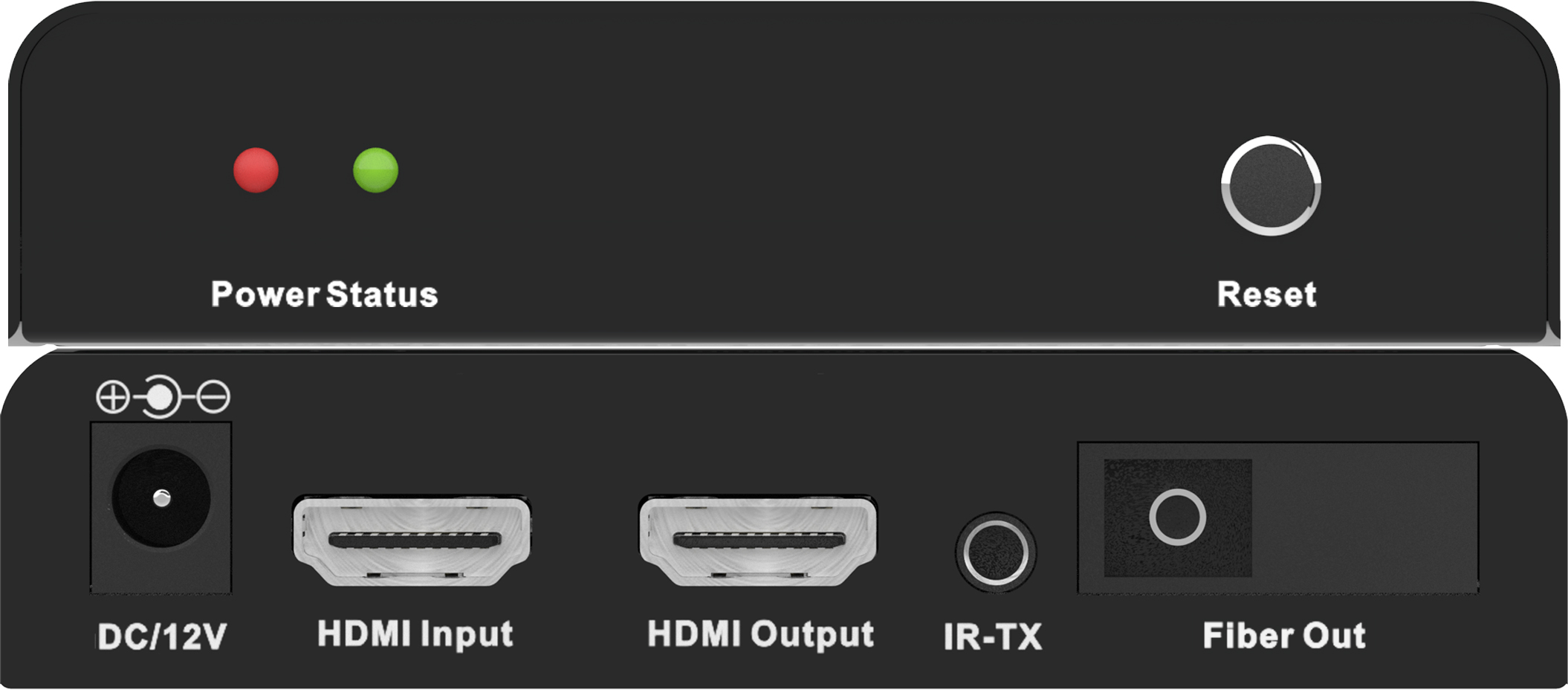

Transmitter Panel

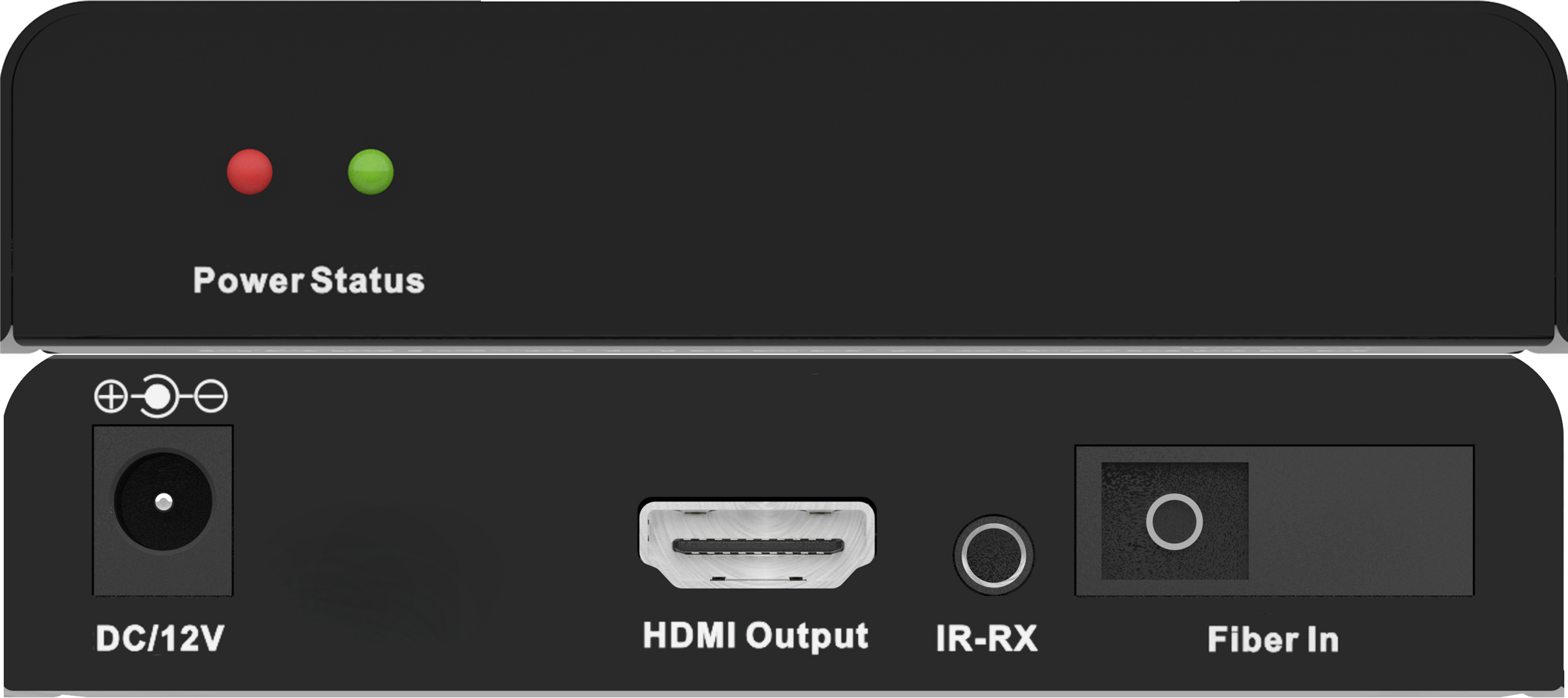

Receiver Panel

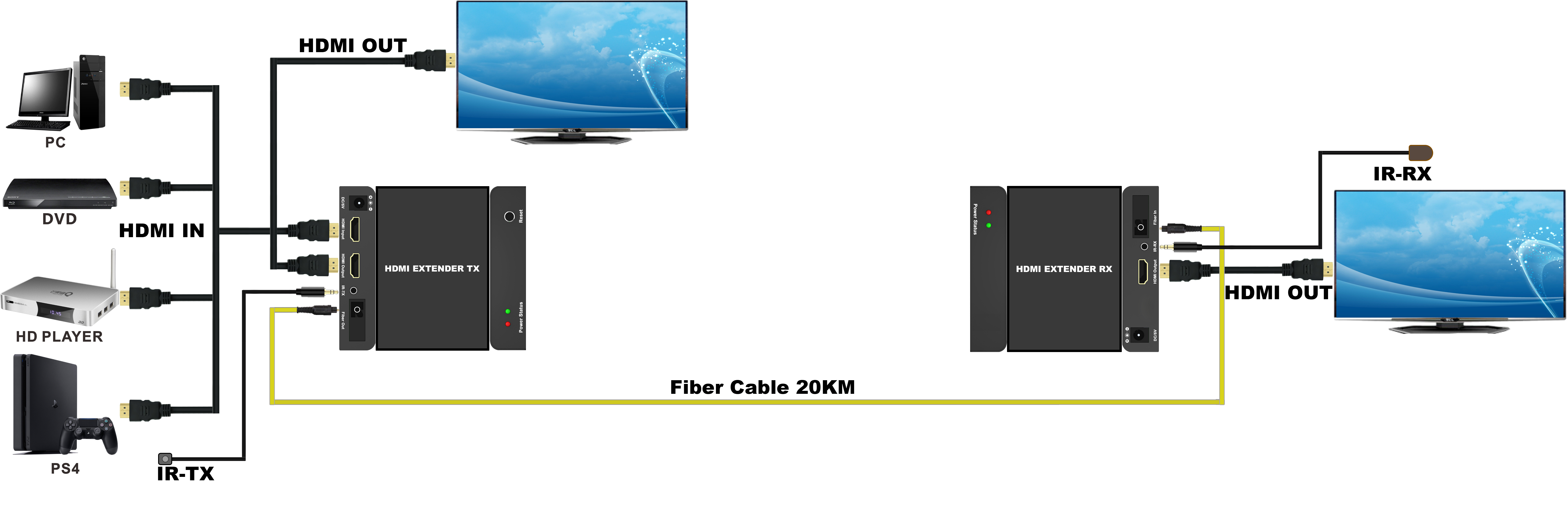

  CONNECT AND OPERATE

Before installation, please make sure all devices you wish to connect have been turned off.

6.01.Connect HDMI signal source to the transmitter of HDMI extender.

6.02.Use fiber cable(Recommend:SC) to connect transmitter and receiver

of HDMI Extender.

6.03.Connect the display equipment with HDMI connector to the receiver of

HDMI extender.

6.04.Power on all connected devices, Choose the input of the display device

to its HDMI channel.

Transmitter and Receiver one by N application, N can up to 253.

7.0 INSTALLATION AND PRECAUTIONS

To avoid electric shock , product damage and to protect your safety , please notice the following:

1.Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2.2.The equipment should not be placed under the sun , rain and damp or  unventilated environment.

3.Liquid items should not be placed on the equipment.

4.Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5.Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6.Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
