HDBaseT HDMI Extender Over Single Cat5e/6/6a/7 Ethernet Cable 4K<HDBaseT HDMI Extender Over Single Cat5e/6/6a/7 Ethernet Cable 4K@60Hz>130ft 1080P<130ft 1080P@60Hz>
【@ :: 】HDMI Extender supports 4K@60Hz up to 40m/130ft, 1080P@60Hz up to 70m/ 230ft over Cat5e/6a/7 cable. Audio Supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master, LPCM 2.1/ 5.1/ 7.1CH, providing great picture and fantastic audio.
【 】 Bi-directional PoE, IR and RS232; EDID pass through; High compliance HDMI extender with HDCP 2.2 and HDR (1080P@10/12bit，4K@8bit) Ultra-slim with Fix Mounting Ear.
【 】Perfectly work with PC,PS5, XBOX, DVD Player, Apple TV, Satellite Box, Cable Box and most sources; Ideal for Digital Signage, Home Theater, Boardrooms, Workshop, Seminar, Classrooms, Conference, Gaming, Video Production.
【 】HDBaseT Extender certificated by FCC, CE. Preventing thunder strikes, built-in Surge/ Lightning Protection, Superior ESD Protection. One transmitter supports one receiver only. Mounting ear for easy installation.
PIISUN Technology has been evolved to a leading brand in the online market of Pro A.V. industry.
Since established in 2014, PIISUN Technology has been dedicated to providing professional and reliable audio and video products, including extenders, splitters, switchers and matrixes.
We provide localized product sales and one-to-one assistance to all customers in Europe, North America, and Asia Pacific regions.

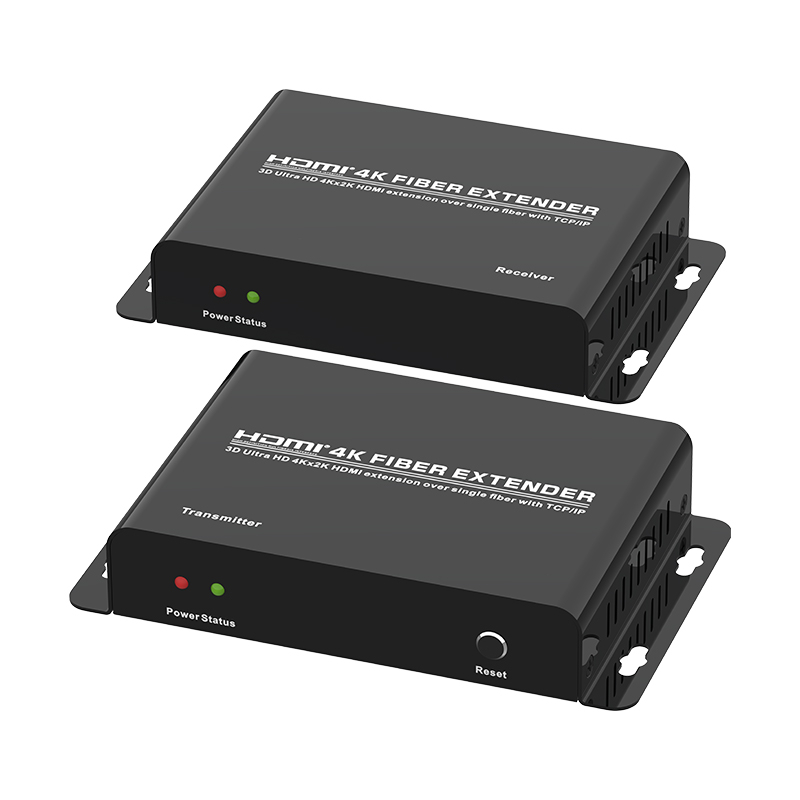

1.Signal transmission :SC fiber(recommended) cables up to 20000 meters instead of HDMI cables are connected between TX and RX Extender.
2.Support HDMI1.4,HDCP 1.4 protocol compliant.
3.Support input/output resolution:480p,576p,720p,1080p,4K@30Hz.
4.Support point-to-point mode, one point-to-many mode.
5.Protocol compliant TCP/IP one transmitter and multiple receivers,with a maximum of 253 receivers.
6.Support IR control, you can control STB or Blue-Ray DVD at receiving site by remote control.
7.Support IR remote control 20~60KHz,NEC.
8.Installs in minutes,No loss of quality.
4.0 SPECIFICATION
HDMI Version------------------------------------------------------------------HDMI1.4
Transmitter Input Port --------------------------------------------------HDMIx1(AF)
Transmitter Output Ports -------------------HDMIx1(AF),SC Fiberx1,IR TXx1
Receiver Input Ports------------------------------------------SC Fiberx1,IR RXx1
Receiver Output Port----------------------------------------------------HDMIx1(AF)
Frequency Bandwidth--------------------------------------2.25Gbps (single link)
Input/Output Resolutions------------------480p,576p,720p,1080p,4K@30Hz
Audio-------------------------------------------Sample rate:32kHz,44.1kHz,48kHz
IR remote control-----------------------------------------------------20~60KHz;NEC
ESD Protection Human Body Model ---------------± 8kV (air-gap discharge)
± 4kV (contact discharge)
Operating Temperature--------------------------------0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature ---------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity---------------------------------20~90% RH (non-condensing)
Dimensions (mm)-----------------------------------------------------------120x73x22
5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal
input(S),output(S)and power requirements.

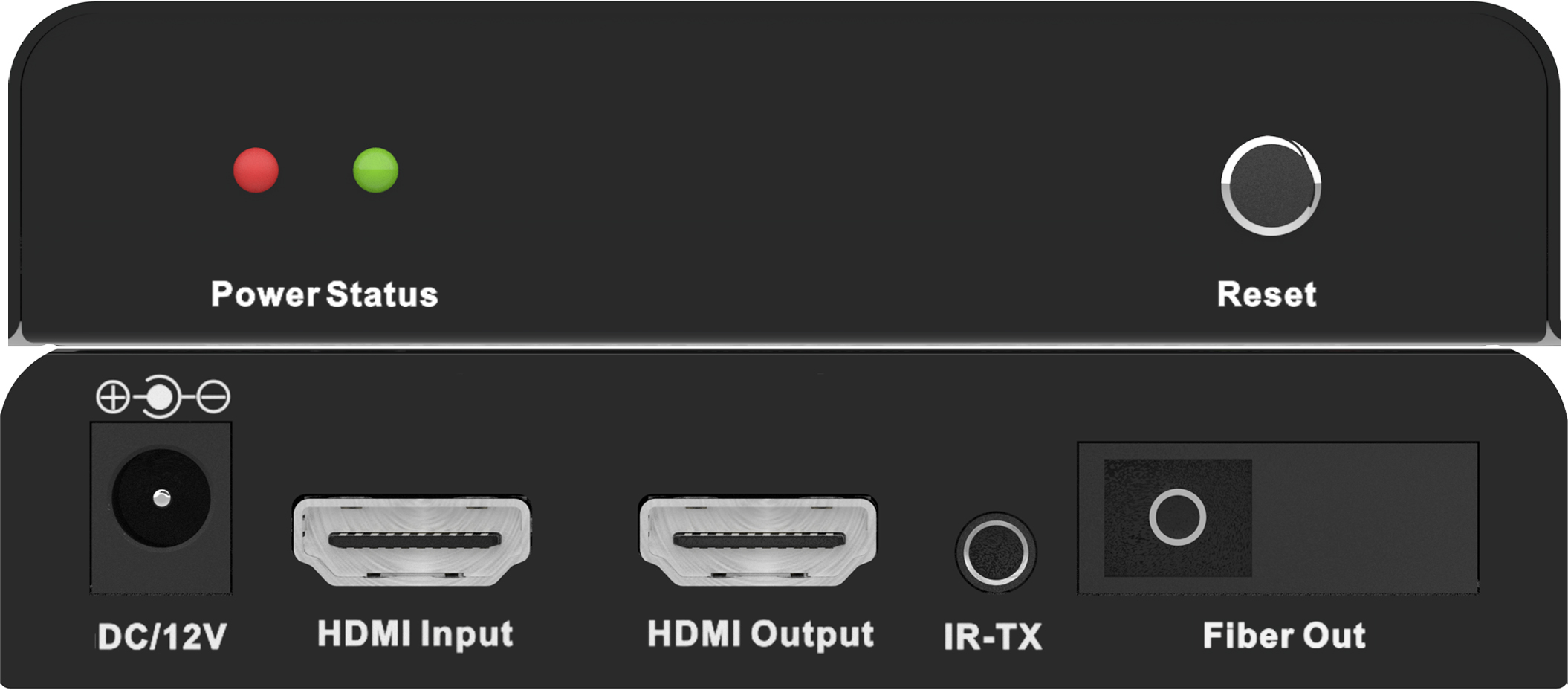

Transmitter Panel

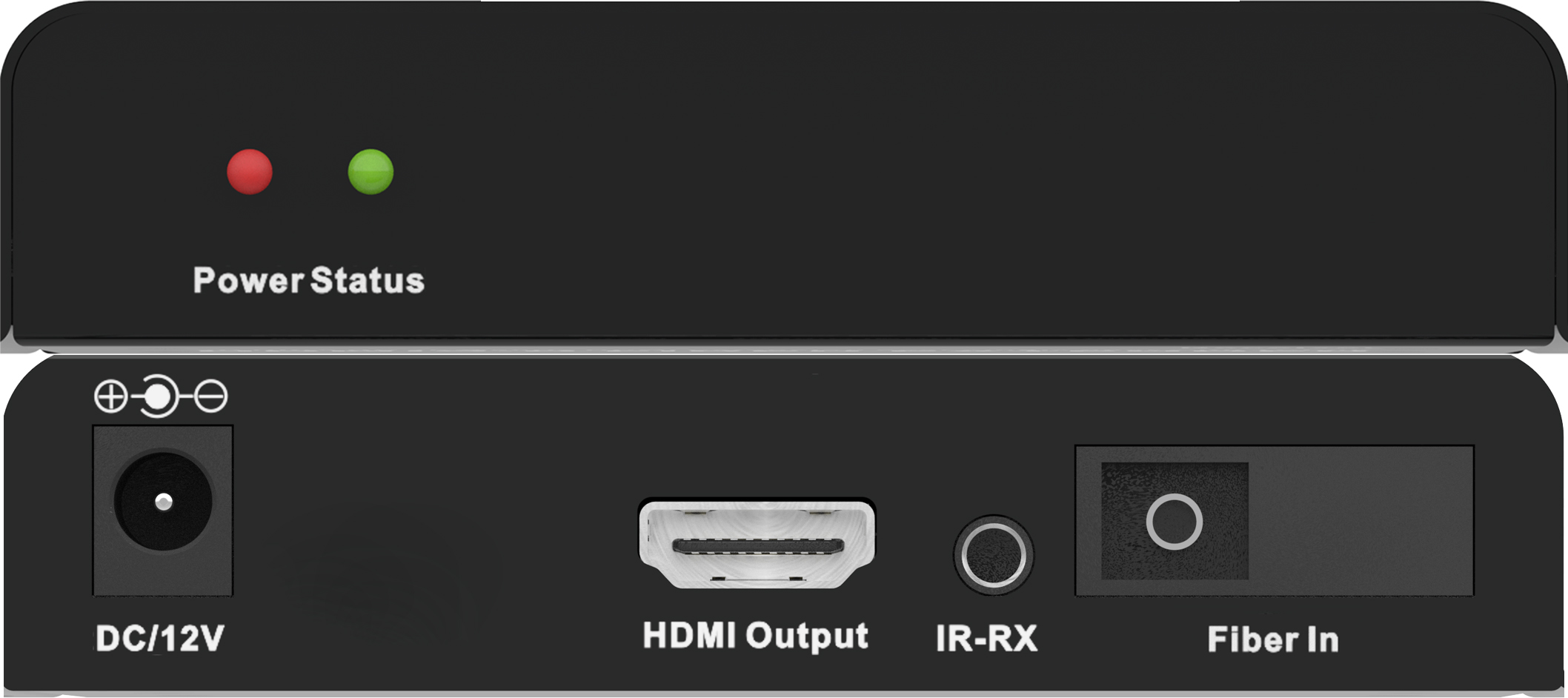

Receiver Panel
6.0 CONNECT AND OPERATE
Before installation, please make sure all devices you wish to connect have been turned off.
6.01.Connect HDMI signal source to the transmitter of HDMI extender.
6.02.Use fiber cable(Recommend:SC) to connect transmitter and receiver
of HDMI Extender.
6.03.Connect the display equipment with HDMI connector to the receiver of
HDMI extender.
6.04.Power on all connected devices, Choose the input of the display device
to its HDMI channel.

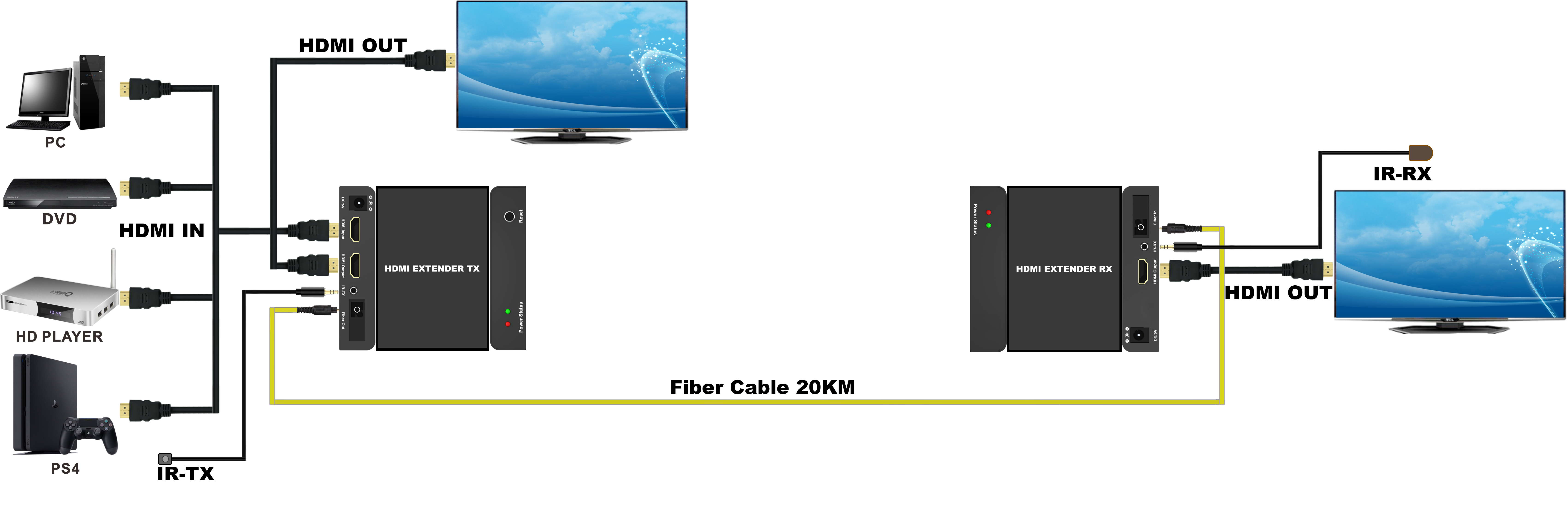

Transmitter and Receiver one by N application, N can up to 253.
7.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock , product damage and to protect your safety , please notice the following:
1. Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.
2. 2.The equipment should not be placed under the sun , rain and damp or unventilated environment.
3. Liquid items should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.
5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.
6. Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
