HDMI EXTENDER

HDMI Extender Over Single CAT5e/6（60M）

(Ultra HD 4Kx2K@60Hz HDCP2.2)

Thank you for purchasing our product. To ensure safety and many years' trouble-free operation of the product, please read the manual carefully before using this product.

1.0 Introduction

The HDMI2.0 60M HDMI extender uses one single Cat5e/6(recommended)

cable instead of HDMI cable,you can extend the 4K signal to 60 Meters.The purpose of the extender is to achieve long-distance signale transmission with low- cost wires.

2.0 Features

1.Signal transmission :cat5e or cat-6(recommended) cables up to 60

  meters instead of HDMI cables are connected between TX and RX

  Extender;

2.Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

3.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR

  4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

4.Support 3D frame sequential video format up to 1080p@60;

5.Support Multi-receiver cascade transmission;

6.Support 20~60KHz IR dual re-transmitting;

7.Audio format support :

  DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

8.Extend the transmission distance and improve transmission signal;

3.0 Packaging Accessories

When first unpacking your extender please check to see if the following items are included:

1.HDMI Transmitter ------------------1PCS

2.HDMI Receiver ---------------------1PCS

3.IR Receiver --------------------------2PCS

4.IR Transmitter -----------------------2PCS

5.Power supply-------------------------2PCS

6.User manual--------------------------1PCS

4.0 Specification

Length of CAT-6 cable between Transmitter and Receiver --------------------------------------Up to 60 meters

HDMI Input/Output----------------------------------------4Kx2K@60Hz/1080p/1080i/720p/576p/576i/480p/480i

Support audio format -----------------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth----------------------------------------------------------------------------------------------------------600MHz

Max baud rate-----------------------------------------------------------------------------------------------------------18Gbps

Input Video signal ------------------------------------------------------------------------------------------0.5~1.5Volts p-p

Output DDC signal----------------------------------------------------------------------------------------5Volts p-p (TT1L)

Input/Output HDMI cable distance-------------------------------------------≤10m AWG26 HDMI standard cable

Max working current----------------------------------------------------------------------------------------------------800mA

Power adapter format ------------------------------------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range------------------------------------------------------------------------------ (-15 to +55℃)

Operating Humidity range------------------------------------------------------------5 to 90%RH (No Condensation)

Dimension(L x W x H)---------------------------------------------------------------------------------------100x73x25mm

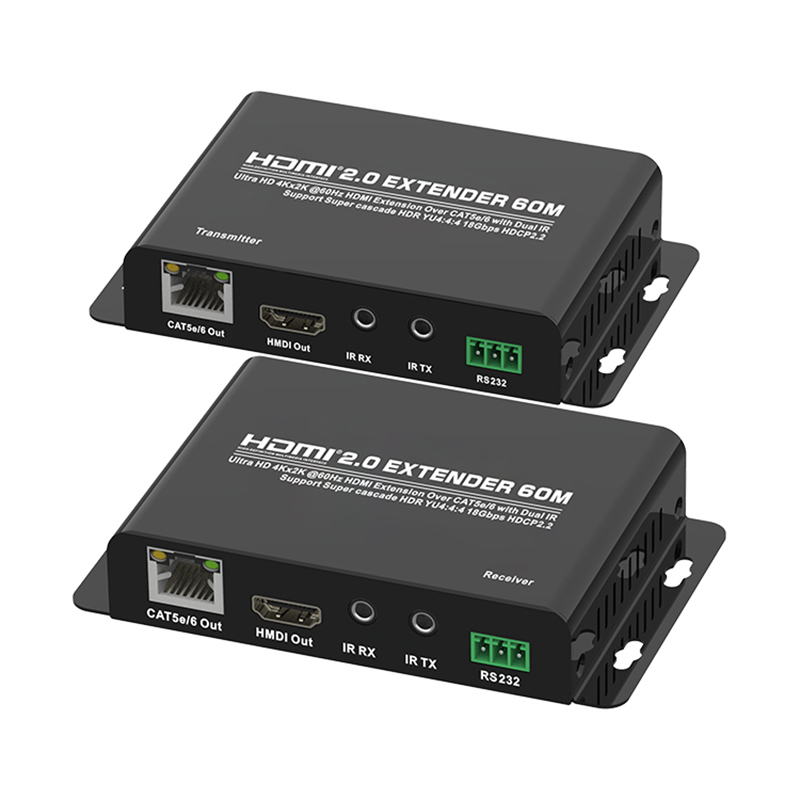

5.0 Panel Descriptions

Please study the panel drawings below and become familiar with the signal

input(S),output(S)and power requirements.

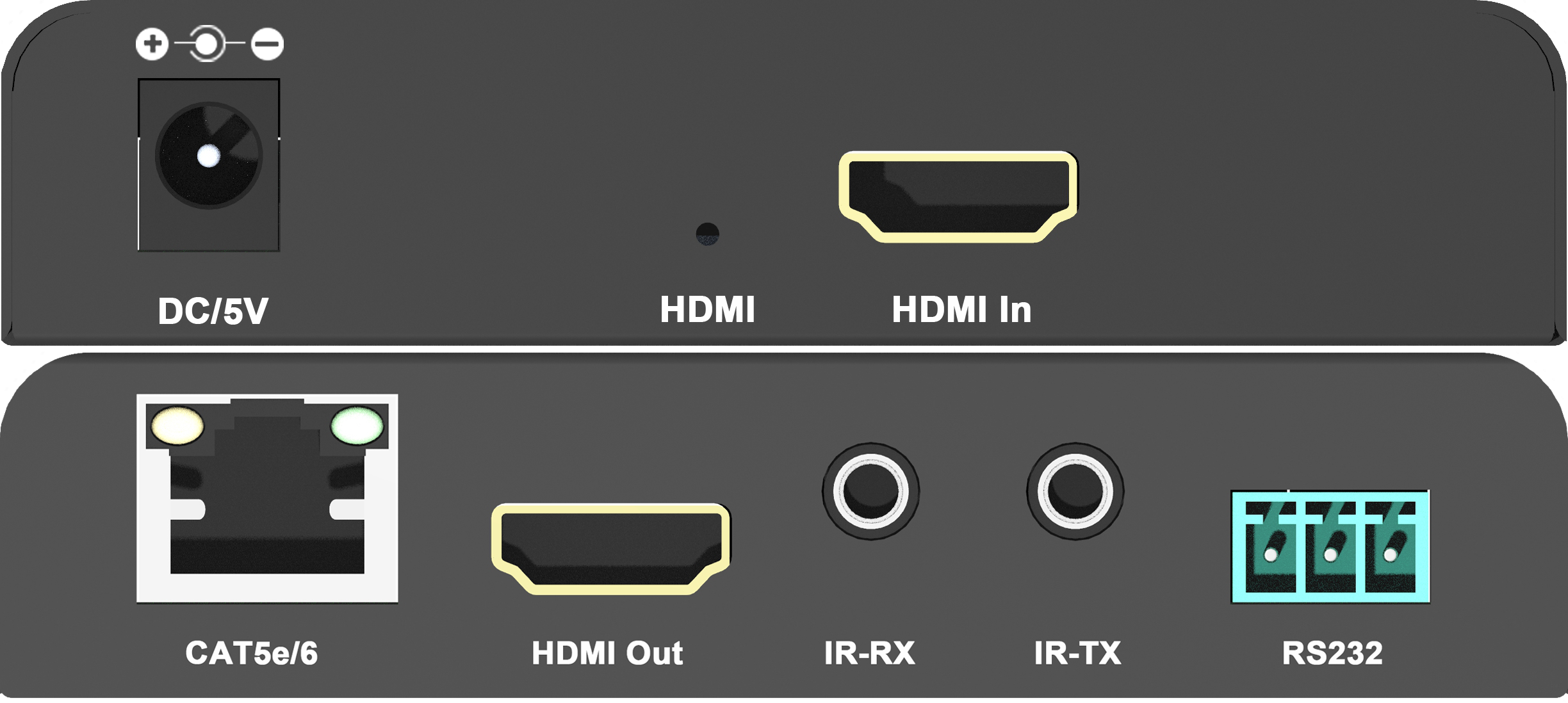

HDMI EXTENDER TX PANEL

DC 5V------------------------------------DC Power Input Port

HDMI -------------------------------------HDMI Input indicator

HDMI Input -----------------------------------HDMI Input port

Cat5e/6 -------------------------------LAN cable Output port

HDMI Output ------------------------------HDMI Output port

IR-RX ------------------------------------------IR receiver port

IR-TX --------------------------------------IR Transmitter port

RS232 ----------------------------------------------RS232 port

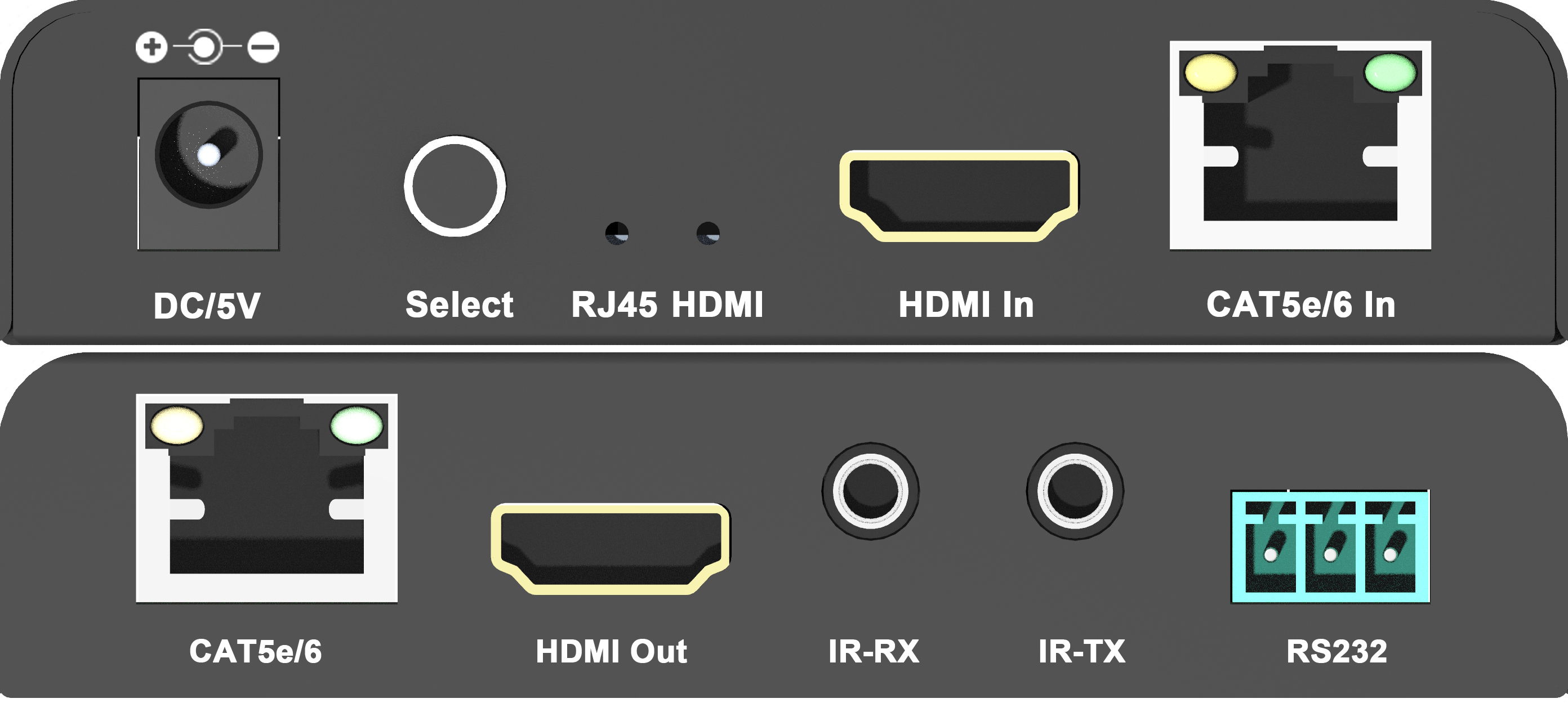

HDMI EXTENDER RX PANEL

DC 5V------------------------------------DC Power Input Port

Select -----------------------------switch input signal Button

RJ45 --------------------------------------RJ45 Input indicator

HDMI ------------------------------------HDMI Input indicator

HDMI Input ----------------------------------HDMI Input port

Cat5e/6 In ---------------------------------Cat5e/6 Input port

Cat5e/6 -------------------------------LAN cable Output port

HDMI Out ----------------------------------HDMI Output port

IR-RX ------------------------------------------IR receiver port

IR-TX --------------------------------------IR Transmitter port

RS232 ----------------------------------------------RS232 port

6.0 Connect and Operate

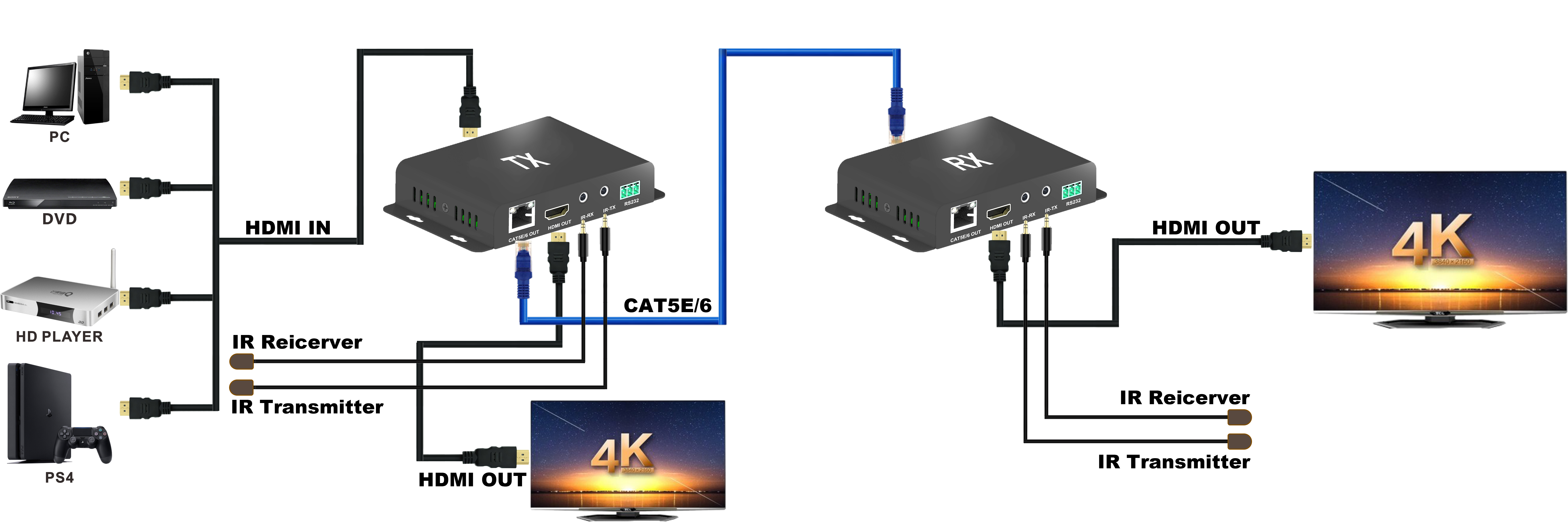

ApplicationⅠ

(Point to point application)

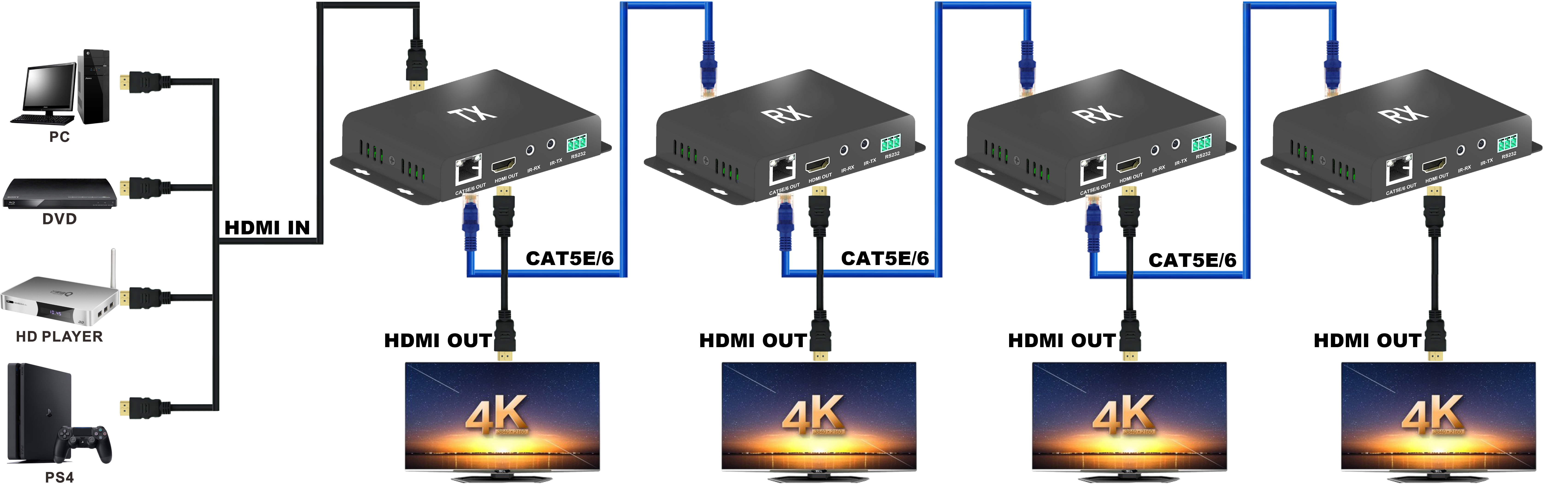

ApplicationⅡ

(Multi-receiver cascade transmission)

6.01 Connect source device with transmitter by one HDMI cable(Max=10M).

6.02 Connect display device with receiver by one HDMI cable(Max=10M).

6.03 Connect TX with RX by one cat5e/6(Max=60M).

6.04 One pair of IR-RX and IR-TX cable,connected to the 3.5mm IR-RX and

IR-TX ports of the transmitter and receiver respectively.

6.05 Connect the power supply to the TX and RX.

6.06 LED indicator:When a signal is input to work,steady blue light.

6.07 Select the input source via the select button on the RX.

7.0 Installation and precautions

To avoid electric shock , product damage and to protect your safety , please notice the following:

1. Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2. The equipment should not be placed under the sun , rain and damp or  unventilated environment.

3. Liquid items should not be placed on the equipment.

4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6. Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
