PII-51200
PIISUN
| Quantity: | |
|---|---|
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
HDMI extender is an ultra-slim transmitter receiver pair which is designed to extend UNCOMPRESSED 4K@60Hz HDMI signals via a single Cat5e/6/6a/7 cable.
1080P HDMI KVM Fiber Extender Multifunction HDMI Video Optical Transceiver Full HD SM 20km HDMI to Fiber Converter Single-Mode Support USB Mouse Keyboard RS232 GPIO 3.5mm Bidirectional Stereo Audio
Support USB Mouse and Keyboard – The HDMI KVM Fiber Converter with KVM Function, you can control the PC or other devices with USB Mouse and Keyboard from remote end. Not Support Other USB device.
Support Bi-Di Stereo Audio – The HDMI Optic Extender with Bidirectional 3.5mm socket on both Transmitter and Receiver. You can do Real-time intercom with others on the other side far away.
Support Full HD 1080P Resolution – The HDMI Fiber Extender support up to 1920*1200@60Hz ; Special support 1600*1200@60HZ. Compatible backwards with lower resolution.
Support Backward RS232 – The HDMI Converter support Serial RS232 Signal, you can control the rs232 serial device from remote side.
Transmit over Fiber –HDMI Fiber Optical Converter transmit over signle core signle mode fiber. Uncompressed transmission Up to 12.5 Miles with no Latency.
| Video Signal Type | HDCP2.2 |
| Audio Format | PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:X |
| Input/Output Resolution-VESA | 800×600@60Hz , 1024×768@60Hz, 1280×768@60Hz, 1280×800@60Hz, 1280×960@60Hz, 1280×1024@60Hz, 1360×768@60Hz, 1366×768@60Hz, 1400×1050@60Hz, 1440×900@60Hz, 1600×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1200@60Hz |
| Input/Output Resolution-SMPTE | 1280x720@60Hz 1920x1080I@60Hz 1920x1080P@60Hz , 3840×2160@60Hz , 4096×2160@60Hz [NOTE: 4096×2160/3840×2160@50Hz/60Hz is based on chroma sub-sampling 4:2:0 8-bit only] |
| Maximum Data Rate | 10.2Gbps |
| Operating Temperature | 0°c to 45°C (32°F to 11 3°F) |
| Storage Temperature | -20°(to 70°((-4°F to 158°F} |
| ESD Protection | 士8kV(Air-gap discharge)/ 士4kV(Contact discharge) |
| Surge Protection | Voltage: 士1 kV |
| Power Consumption (Maximum) | ≤8.88 W (Pair) |
| Device Dimensions(WxHxD) | 108.8 mm x 15 mm x64.2 mm 4.29" X 0.59" X 2.52" |
| Product Weight | Transmitter: 0.18kg/0.401b Receiver: 0.18kg/0.401 b |
| HDMI Cable | 4K@60 Hz 4:2:0 HDMI In: Up to 10m/HDMI Out: Up to 15m |
| CAT5e/CAT6 | 35m:1080P, 60 Hz 48 bpp /1080P, 60Hz 3D/3840 x 2160@60 Hz 4:2:0 |
| CAT6a/CAT7 | 70m:1080P, 60 Hz 36 bpp |
| CAT6a/CAT7 | 40m: 1080P, 60Hz 48 bpp/1080P, 60Hz 3D/3840 x 2160@60 Hz 4:2:0 |

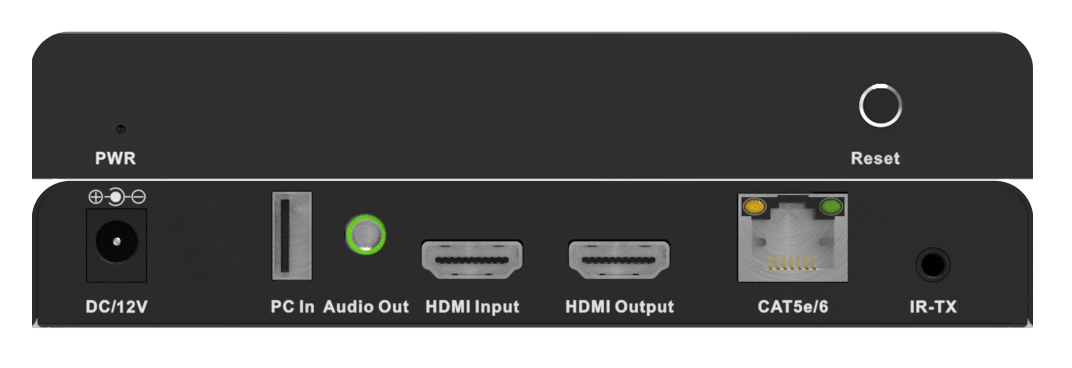

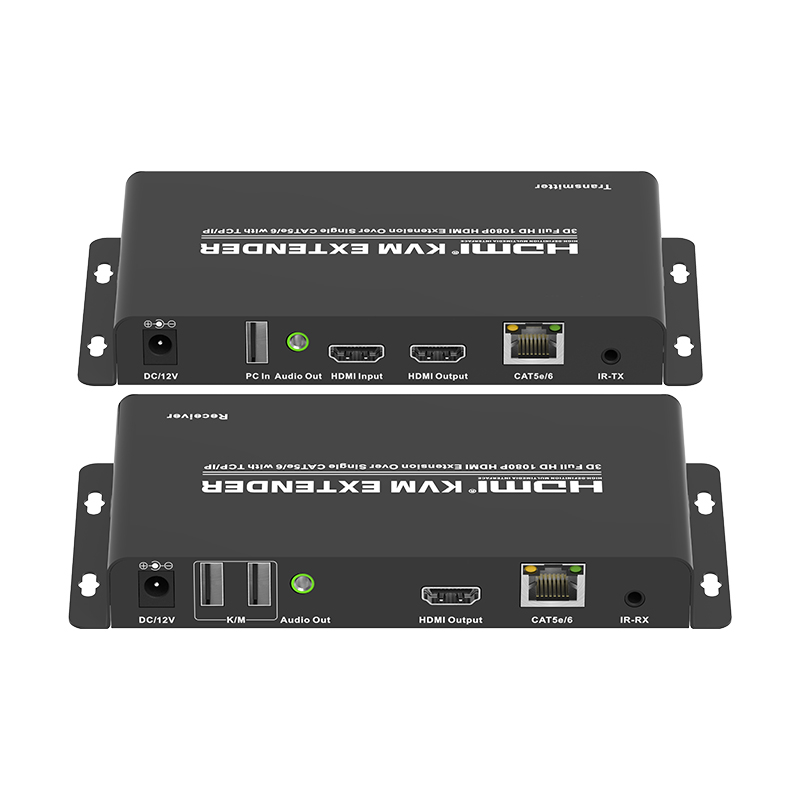

HDMI KVM Extender Transmitter
PWR ------------------------------------------------Power indication
Reset---------------------------------------------------- Reset button
DC/12V----------------------------------DC Power input interface
PC Input ---------------------------------------USB input interface
Audio Out ---------------------------------Stereo output interface
HDMI Input --------------------------------- HDMI input interface
HDMI Output -------------------------- HDMI Loopout interface
Cat5e/6 Output ------------------------Cat5e/6 output interface
IR-TX ------------------------------------------------IR TX interface

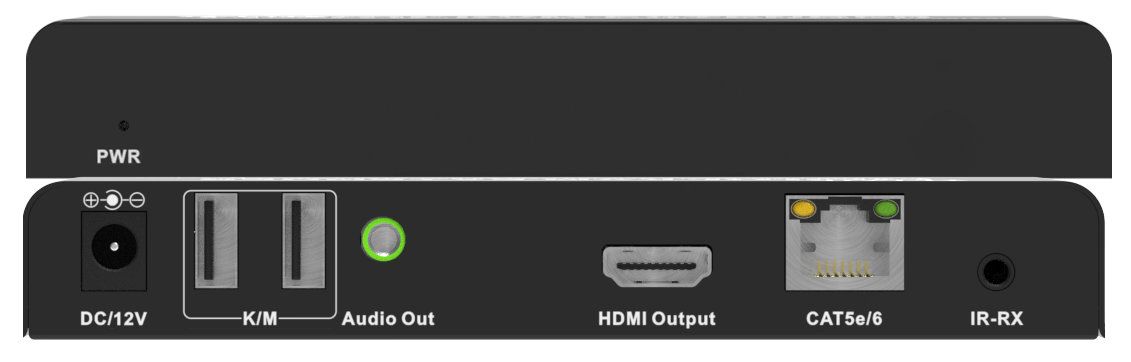

HDMI KVM Extender Receiver
PWR ------------------------------------------------Power indication
DC/12V----------------------------------DC Power input interface
Keyboard/Mouse -------------------Keyboard/Mouse interface
Audio Out ---------------------------------Stereo output interface
HDMI Output ----------------------------- HDMI output interface
Cat5e/6 Input ----------------------------Cat5e/6 input interface
IR-RX ------------------------------------------------IR RX interface
6.0 CONNECTION AND OPERATION

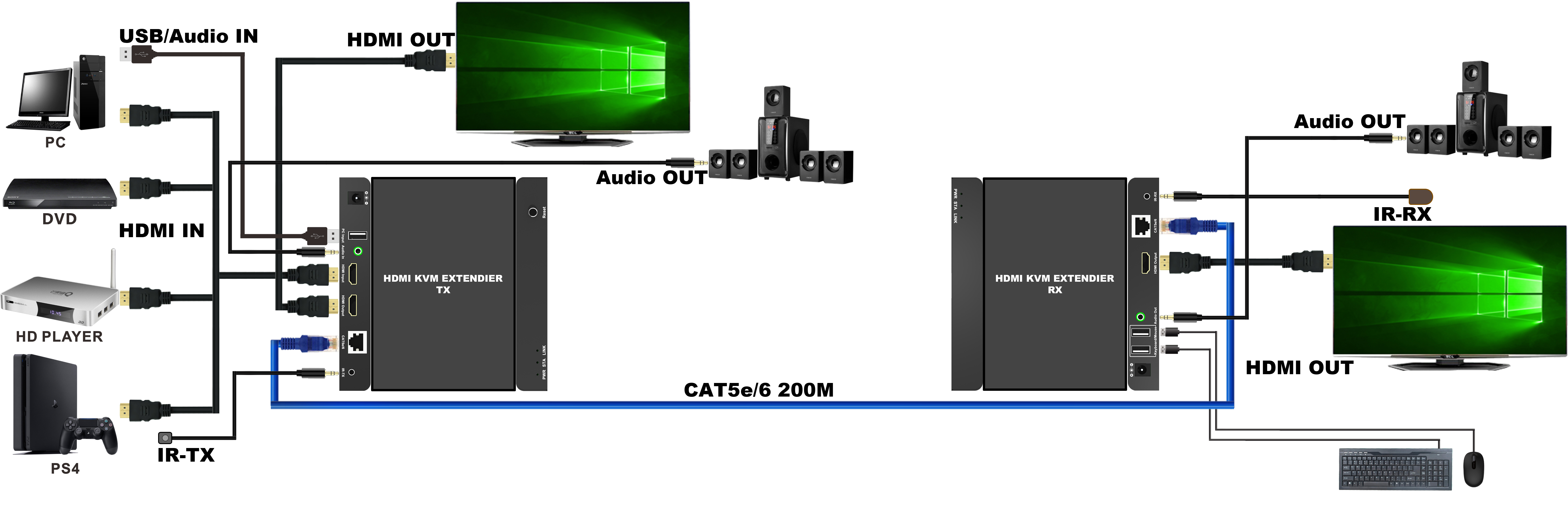

6.01 Transmitter and Receiver one by one application.
1.Connect HDMI signal source to the transmitter of HDMI KVM extender;
2.Connect USB signal source to the transmitter of HDMI KVM extender;
3.Use LAN cable(Recommend:CAT5e/6) to connect transmitter and receiver
of HDMI KVM Extender;
4.Connect the display equipment with HDMI connector to the receiver of
HDMI KVM extender;
5.Connect keyboard and mouse to the receiver of HDMI KVM extender;
6.Turn on the power of all devices and the product starts to work.
6.02 Transmitter and Receiver one by N application, N can up to 253.
7.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock , product damage and to protect your safety , please notice the following:
1.Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.
2.The equipment should not be placed under the sun , rain and damp or unventilated environment.
3.Liquid items should not be placed on the equipment.
4.Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.
5.Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.
6.Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
