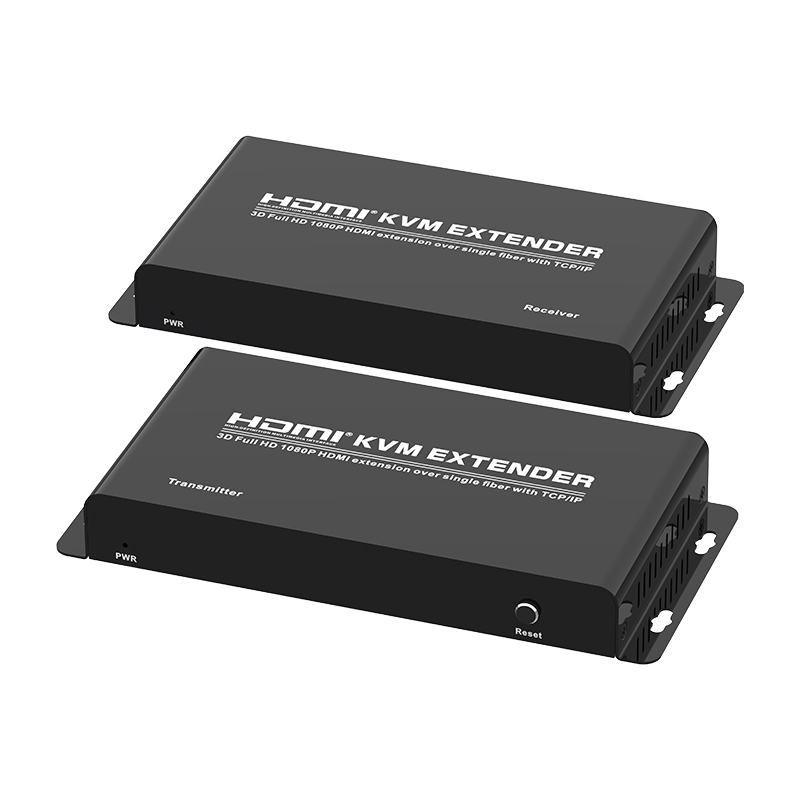

HDMI Extenders with KVM USB2.0 HDMI Over Single Fiber Optic up 20Km(12.4miles) Uncompressed Transmitter and Receiver Kit

• This HDMI over Fiber system is used to send High definition HDMI signals to remote audio/video transmission device through one Fiber Optic cable with SC/SC connector, with KVM and one local loop out on TX.

• The device can achieve HDMI signal distribution distances of up to 12.4miles (20Km) over a single SC/SC single-mode Fiber optic cable. it also can be compatible with multimode fiber cable, working distance can be up to 500m (1640ft.) over a single SC/SC multi-mode fiber cable. Suitable for both universal fiber type (S/M and M/M).

• Uncompressed signal transmission. Durable Metal. Bilateral heat dissipation. Widely used in extending Ultra-HD sources such as Blu-Ray players, game consoles, PCs and other HDMI sources to distant monitors, displays, TVs, and more

• Support Video Resolution up to 1920x1080P@60Hz, Support USB Keyboard and mouse for remote control.

• Plug and Play, Simple to Install, No need drive.

Optical index:
1.Fiber port : SC
2.Suitable for single-mode fiber 9/125 and multi-mode 50/125 or 62.5/125μm
2. Transmission distance: single-mode fiber 0-20KM(12.4miles). Multimode fiber 0~500Meters(1640ft.)
3. Wavelength: Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm)

HDMI Extender Over Cat5e/Cat6/Cat7 Network Cable up to 492Ft HDMI to RJ45 Cable KVM Loop Out Included

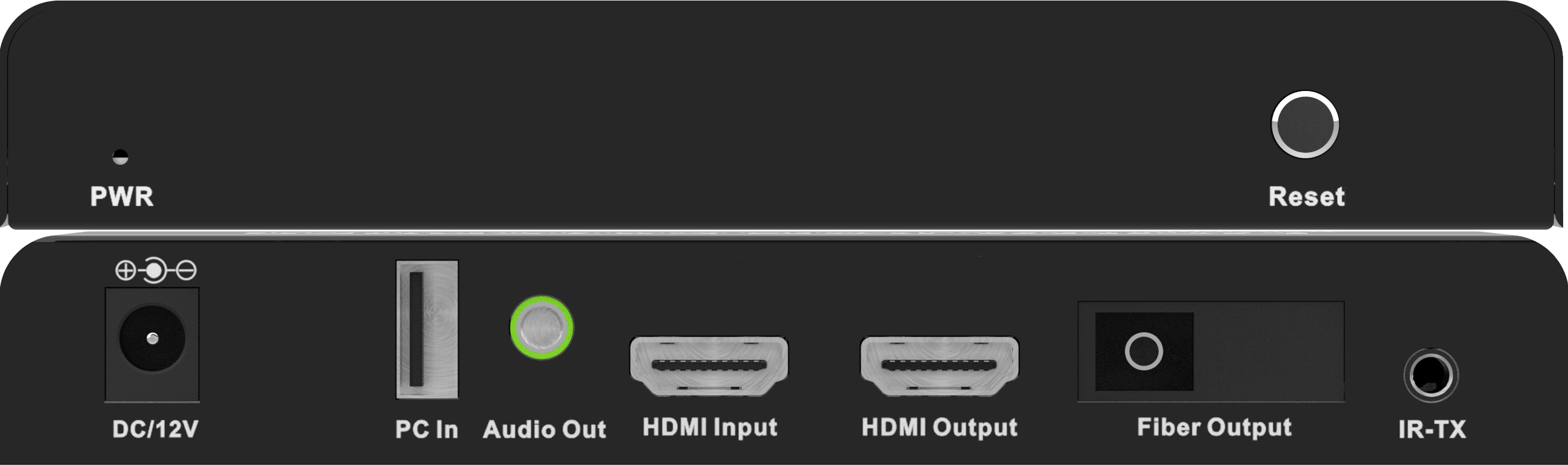

HDMI KVM Extender Transmitter

PWR -----------------------------------------------Power indication

Reset--------------------------------------------------- Reset button

DC/12V----------------------------------DC Power input interface

PC Input ---------------------------------------USB Input interface

Audio In -----------------------------------Stereo output interface

HDMI Input --------------------------------- HDMI input interface

HDMI Output -------------------------- HDMI Loopout interface

Fiber Output ------------------------------Fiber Output interface

IR-TX ------------------------------------------------IR TX interface

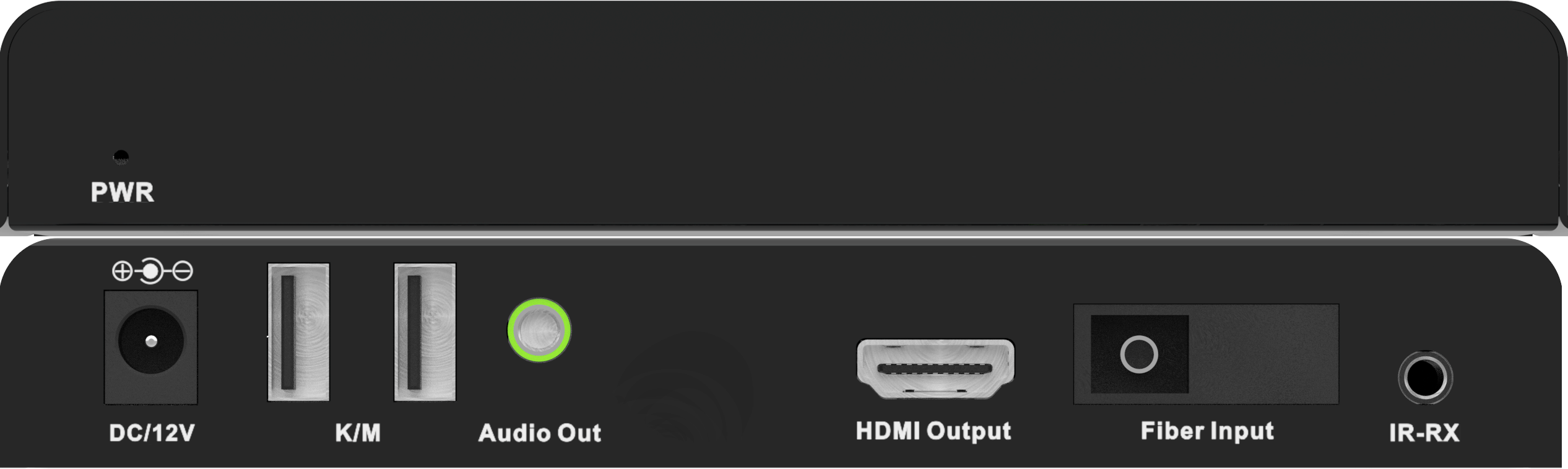

HDMI KVM Extender Receiver

PWR -----------------------------------------------Power indication

DC/12V---------------------------------DC Power input interface

Keyboard/Mouse --------------------Keyboard/Mouse interface

Audio Out ---------------------------------Stereo output interface

HDMI Output ----------------------------- HDMI output interface

Fiber Input ------------------------------------Fiber Input interface

IR-RX ------------------------------------------------IR RX interface

6.0 CONNECTION AND OPERATION

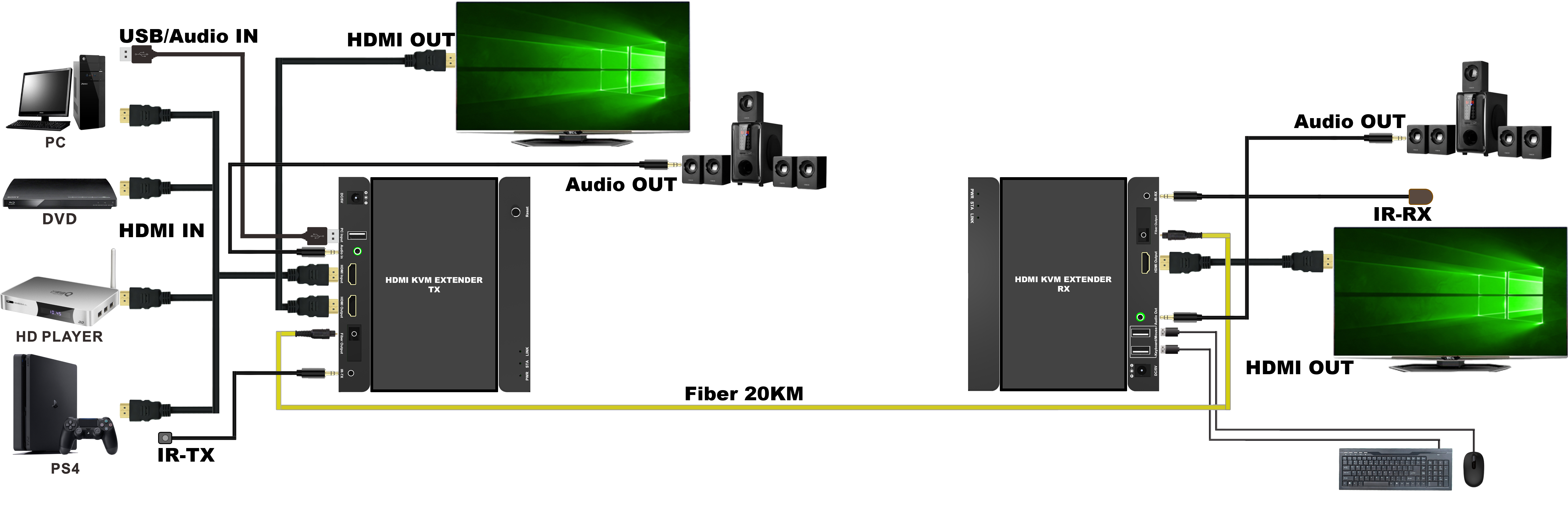

6.01 Transmitter and Receiver one by one application.

1.Connect HDMI signal source to the transmitter of HDMI KVM extender;

2.Connect USB signal source to the transmitter of HDMI KVM extender;

3.Use Fiber cable(Recommend:SC Fiber) to connect transmitter and receiver

of HDMI KVM Extender;

4.Connect the display equipment with HDMI connector to the receiver of

HDMI KVM extender;

5.Connect keyboard and mouse to the receiver of HDMI KVM extender;

6.Turn on the power of all devices and the product starts to work.

6.02 Transmitter and Receiver one by N application, N can up to 253.

7.0 INSTALLATION AND PRECAUTIONS

To avoid electric shock , product damage and to protect your safety , please notice the following:

1. Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2. The equipment should not be placed under the sun , rain and damp or unventilated environment.

3. Liquid items should not be placed on the equipment.

4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6. Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
