3D DP SWITCHER

User Manual

DP Bi-Direction Switch

(3D Ultra HD 8K60Hz)

Bring High-Definition to your life!

Thank you for purchasing our product. To ensure safety and many years' Trouble-free operation of the product, Please read the manual carefully before using this product.

1.0 Introduction:

DP Switch is a product that can switch multi-group DP signals to one high definition display device such as HDTV by using manual push button. Doing so can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.

2.0 Features:

1.Compliant with DP1.4

2.Support video format up to 8K@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4, and up to 8K@60Hz with 12bit YCBCR 4:4:4.

3.Support 3D frame sequential video format up to 1080p@60.

4.Support high resolution VESA mode video format up to QSXGA@60Hz. 5.Support HDR and 18Gbps Signal Speed.

5.Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio. 7.Extend the transmission distance and improve transmission signal. 8.Metal casing design and overall shielding without signal interference.

3.0 Packaging accessories:

1. DP Switch----------------------------------------------------------1 Pcs

2. USB Power Cable------------------------------------------------1 Pcs

4.0 Technical parameters

Single Link Range--------------------------------------------------------------7680x4320

Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P

Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)

Deep Color------------------------------------------------------------------------------48 bit

DP Version------------------------------------------------------------------------------DP1.4

Bandwidth--------------------------------------------------------------------Up to 600MHz

Signal Speed-----------------------------------------------------------------Up to 18Gbps

The length of input cable-------------------------------------------------------------≤10M

The length of output cable-----------------------------------------------------------≤10M

The cable standard------------------------------------------------------------------28AWG

Vertical Frequency Range------------------------------------------------------------60Hz

Power Consumption(max.)-------------------------------------------------------0.5Watts

Operation Temperature-----------------------------------------------------------0℃-70℃

Net Weight------------------------------------------------------------------------------0.03Kg

Dimension: L*W*H(mm)-----------------------------------------------------53.9x52x15.4

5.0 Panel Introduction

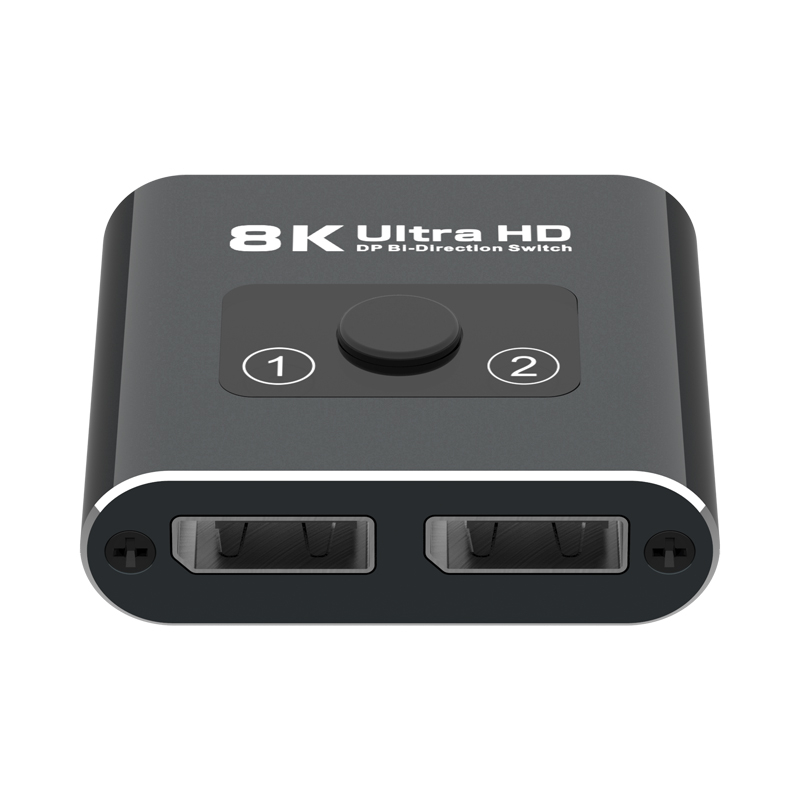

When DP 1x2 splitter is using, 1 is input When DP 2x1 switcher is using, 1 is output 2.USB Power Input

3.Switch Button

When DP 1x2 splitter is using, 4/5 is output When DP 2x1 switcher is using, 4/5 is input

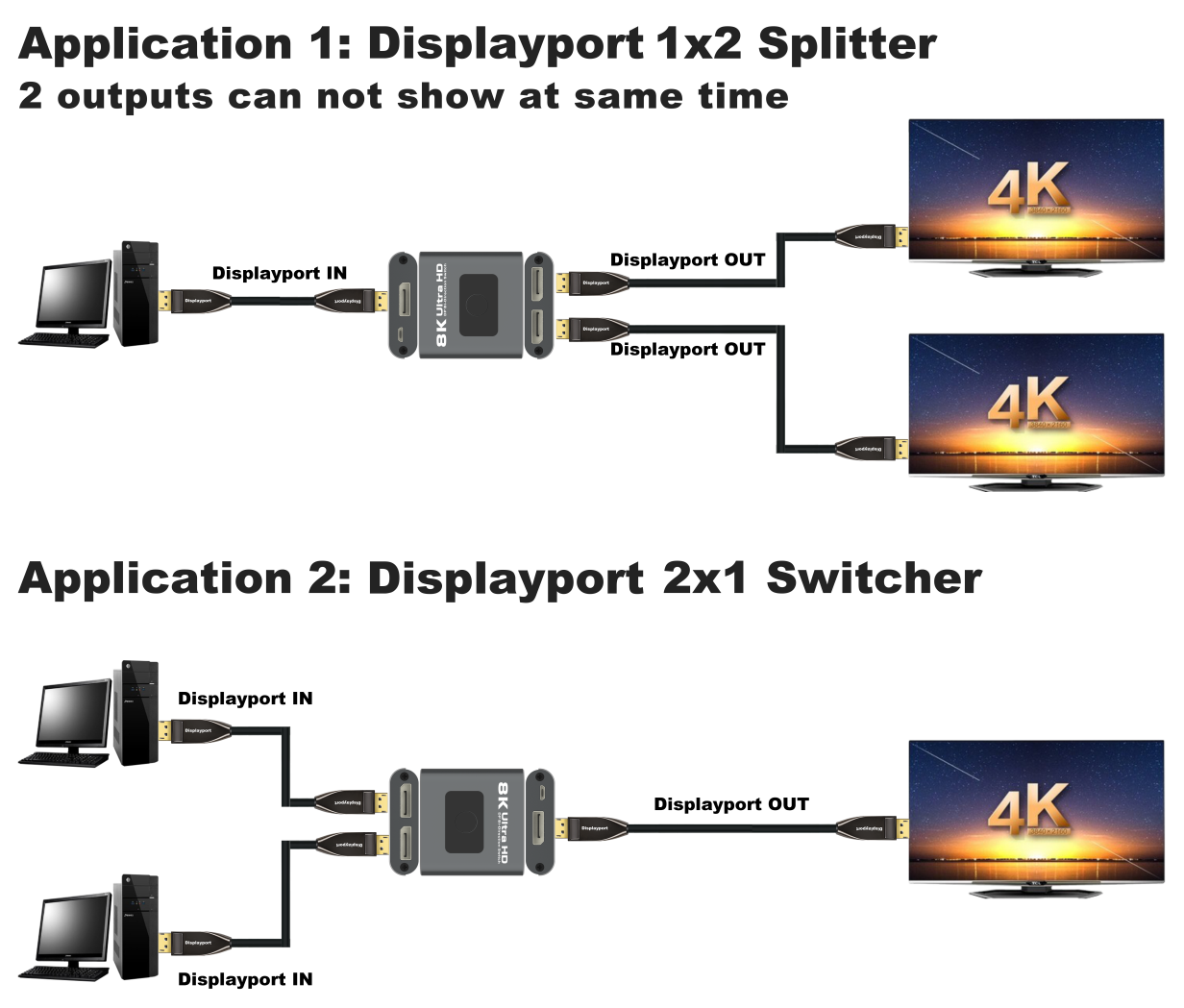

6.0 Connection diagram

Before installation, please make sure all devices you wish to connect have been turned off.

6.1Connect the DP cable between signal source and input port of product.

6.2Connect the DP cable between output port of product and HDTV.

6.3Open the signal source and the power of HDTV, then it works.

Note: When DP Switch works, make sure the source device and display device are well connected with cables. In order to make the relevant ports work properly, firstly power on switch, the power on source device.

7.0 INSTALLATION AND PRECAUTIONS

To avoid electric shock , product damage and to protect your safety , please notice the following:

1.Please slowly plug or unplug signal cables and do not often plug , unplug , or

 shake them.

2.The equipment should not be placed under the sun , rain and damp or

 unventilated environment.

3.Liquid items should not be placed on the equipment.

4.Do not install the equipment near heat sources such as fire , power , or other

 amplifiers that produce heat.

5.Do not insert the metal or other objects to the equipment in addition to

 connecting cables to ports.

6.Do not demolish the equipment by yourself ; it should be maintained by

 professional maintenance staff.
