If you're planning power delivery for IP cameras, wireless access points, or industrial sensors, you've probably faced this classic dilemma: Should I use a PoE splitter or a PoE injector?
Choose the wrong one, and your device may not power up at all. Worse, you could fry expensive end equipment. And let's be honest—project delays caused by a wrong component choice cost far more than the component itself.
This guide breaks down the technical differences, real-world application scenarios, and a clear decision framework. Written for engineers and procurement professionals alike, it helps you get it right the first time.

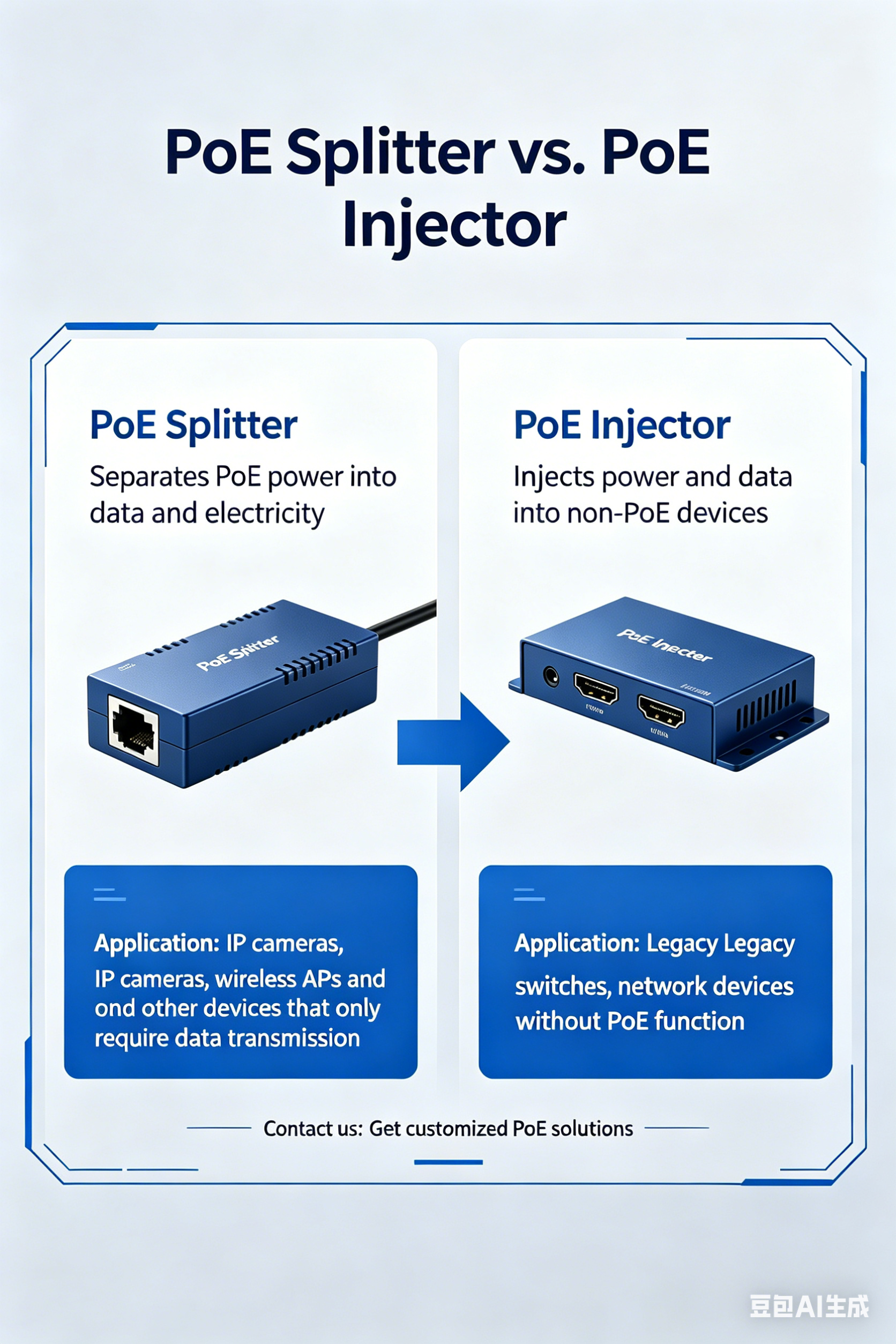

The most common mistake is thinking these two devices are interchangeable. They are not. Their functions sit at completely opposite ends of the PoE power delivery chain.
What it does: Injects DC power into a standard Ethernet cable, combining data and electricity onto a single line.
When you need it: You have a non-PoE switch, but your end device (camera, AP, sensor) requires PoE power.
How it connects:
Non-PoE Switch → Ethernet Cable → PoE Injector (Data + Power In) → Single PoE-Enabled Cable → PoE End Device
Real-world example:
You have a 24-port office switch that doesn't support PoE. You want to install two IP cameras in the parking lot. Instead of replacing the entire switch, you install two PoE injectors right before the cable runs go outdoors. Cost: 30.Alternativecost(anewPoEswitch):500.
Key takeaway: A PoE injector turns a non-PoE network segment into a PoE-enabled one.
What it does: Splits the combined PoE signal (data + power) back into two separate outputs—a standard Ethernet port for data and a DC barrel jack for power.
When you need it: You have a non-PoE end device that needs to be powered, but you want to leverage your existing PoE network infrastructure.
How it connects:
PoE Switch → Single PoE Cable (up to 100m) → PoE Splitter (Data + Power Out) → Separate Ethernet + DC Power to Non-PoE Device
Real-world example:
A factory has 50 legacy 12V sensors scattered across the floor. The company upgrades its network to a PoE switch. Instead of replacing all sensors (which would cost tens of thousands), they connect each sensor through a PoE Splitter. The splitter extracts the 12V power from the PoE cable and delivers it to the old sensor. Result: existing equipment stays in place, and the network upgrade proceeds without disruption.
Key takeaway: A PoE splitter allows you to keep using non-PoE equipment on a PoE-powered network.
Criterion | PoE Injector | PoE Splitter |
|---|---|---|
Position in network | Near the switch (source side) | Near the end device (load side) |
Input | Ethernet data + separate DC power adapter | Single PoE cable (data + power combined) |
Output | Single PoE-enabled Ethernet cable | Separate Ethernet port + DC power jack |
Primary use case | Adding PoE capability to a non-PoE switch | Powering a non-PoE device from a PoE network |
Powered device requirement | Must be PoE-compatible | Does NOT need to be PoE-compatible |
Typical end devices | PoE cameras, PoE APs, PoE phones | Legacy cameras, old sensors, non-PoE small controllers, some LED lighting |
Rather than wading through specifications, use this simple decision tree. It narrows the choice down to three questions.
YES → Continue to Question 2.
NO → You need a PoE Splitter. A splitter is the only way to power a non-PoE device from a PoE network.
YES, my switch is PoE-enabled → You don't need either of these accessories. Connect directly.
NO, my switch is NOT PoE-enabled → You need a PoE Injector. Place it between the switch and the end device.
Both splitters and injectors must match the power requirements precisely. This is where many projects go wrong.
802.3af (PoE): Up to 15.4W at source, 12.95W guaranteed at device. Suitable for basic IP cameras, VoIP phones.
802.3at (PoE+): Up to 30W at source, 25.5W at device. Required for PTZ cameras, dual-band APs, video intercoms.
802.3bt (PoE++): Up to 60W/90W at source. Necessary for high-power devices like building access controllers, LED lighting arrays, thin clients.
Critical rule: Your splitter or injector must support the standard your end device requires. A 60W PoE++ device will not work with an 802.3af injector rated for 15.4W.
Situation: A small business has 4 old analog cameras and wants to move to IP. They buy a non-PoE NVR (Network Video Recorder) and 4 PoE IP cameras.
Problem: The NVR has no PoE ports. The cameras need PoE power.
Solution: Install a 4-port PoE Injector (or four single-port injectors) between the NVR and each camera. The injectors add power to the Ethernet lines. The PoE cameras receive both data and power through a single cable.
Product needed: PoE Injector (802.3af/at, depending on camera wattage).
Situation: A factory floor has a network of 20 legacy 24V sensors. Management decides to upgrade the backbone to a managed PoE switch for centralized control.
Problem: The new PoE switch outputs standard PoE voltages (48V). The old sensors run on 24V DC and have no PoE chips built in.
Solution: Connect each sensor through a PoE Splitter with adjustable voltage output (5V/9V/12V/24V selectable). The splitter extracts the PoE power, converts it to the exact voltage the sensor expects, and passes the data through a standard RJ45 port.
Product needed: PoE Splitter with selectable DC output, supporting 802.3at input.
Situation: A retail chain installs digital menu boards outside each store. The displays are non-PoE, but the only cable pulled to the outdoor locations is Cat6 Ethernet.
Problem: Running separate AC power outdoors requires a licensed electrician and weatherproof outlets, tripling installation costs.
Solution: Use a PoE Injector at the indoor switch and a PoE Splitter at the outdoor display. The splitter separates the PoE signal into Ethernet (for content updates) and DC power (12V, for the display). The entire outdoor unit runs safely on low-voltage DC, eliminating the need for high-voltage outdoor wiring.
Product needed: PoE Splitter (12V output, IP67-rated for outdoor use).
Whether purchasing a PoE splitter or injector, confirm these points with your supplier. Overlooking even one can cause field failures.
PoE Standard: Does it support 802.3af, 802.3at, or 802.3bt? Match this precisely to your end device.
Gigabit Support: Does it pass 10/100/1000Mbps? Many low-cost splitters only support 100Mbps, bottlenecking high-bandwidth cameras.
Output Voltage Options: For splitters: is the voltage fixed (5V, 12V) or adjustable? Does the barrel jack polarity match your device?
Isolation Protection: Is there galvanic isolation between input and output? This is non-negotiable for industrial environments to prevent ground loops and surges.
Environmental Rating: Indoor (IP40) or outdoor (IP65/IP67)? Outdoor deployments require sealed connectors and UV-resistant housing.
Certifications: CE, FCC, RoHS are mandatory for most markets. UL listing adds significant trust for North American clients.
Cable Length: For injectors, ensure the total Ethernet run (switch to device) stays within the 100-meter limit of the Ethernet standard.
Q1: Can I use a PoE injector and a splitter at the same time on one cable run?
Yes—and this configuration is actually common. For example: Non-PoE switch → PoE Injector (adds power) → Long Ethernet run → PoE Splitter (extracts power) → Non-PoE device. This setup uses the injector at the source end and the splitter at the load end.
Q2: Will a PoE injector damage a non-PoE device if I plug it in by mistake?
A properly designed 802.3af/at/bt injector performs a "handshake" before sending power. It only delivers power if it detects a compatible PoE receiver chip. Passive injectors (non-802.3-compliant) do not perform this check and can damage equipment. Always specify active, standards-compliant injectors.
Q3: Does a PoE splitter introduce network latency?
No. A gigabit PoE splitter simply separates the electrical power from the data signal. It does not process, modify, or buffer the data stream, so it adds zero measurable latency to network traffic.
Q4: What is the maximum distance for PoE with injectors and splitters?
The Ethernet standard limits the copper cable segment to 100 meters. This limit applies whether or not PoE injectors or splitters are in the circuit. If you need longer reach, consider PoE extenders.
Boiled down to its simplest form:
PoE Injector = "My switch doesn't do PoE, but my device needs it." Place near the switch.
PoE Splitter = "My device isn't PoE-compatible, but my network delivers PoE." Place near the device.
Choosing correctly comes down to knowing which end of the cable has the problem. Just answer the three-step decision tree above, verify your wattage requirements, and check the specifications checklist. You will select the right component every time.
