USB-RS485-WE-1800-BT
PIISUN
| Quantity: | |
|---|---|
The USB-RS485-WE-1800-BT is a high-performance USB to RS485 serial cable equipped with an FTDI chip, designed for seamless data transfer in industrial environments. Offering excellent stability and compatibility across various operating systems, this cable is perfect for applications that require long-distance communication with RS485 devices. Whether you're working with automation systems, industrial control systems, or data acquisition, this adapter provides a reliable solution for your connectivity needs.
| Parameter | Value |
|---|---|
| USB Interface Type | USB 2.0 |
| Material | PVC |
| Sheath | PVC |
| Conductor | Pure Copper |
| Shielding | No Shielding |
| Cable Type | RS485 Serial Cable |
| Chipset | FT232RL + SP485 |
| Cable Length | 1.8m (or customizable) |
| Certification | CE and RoHS compliant |
| Function | 5A Fast Charging |
| Cable Specification | 26AWG * 3C |

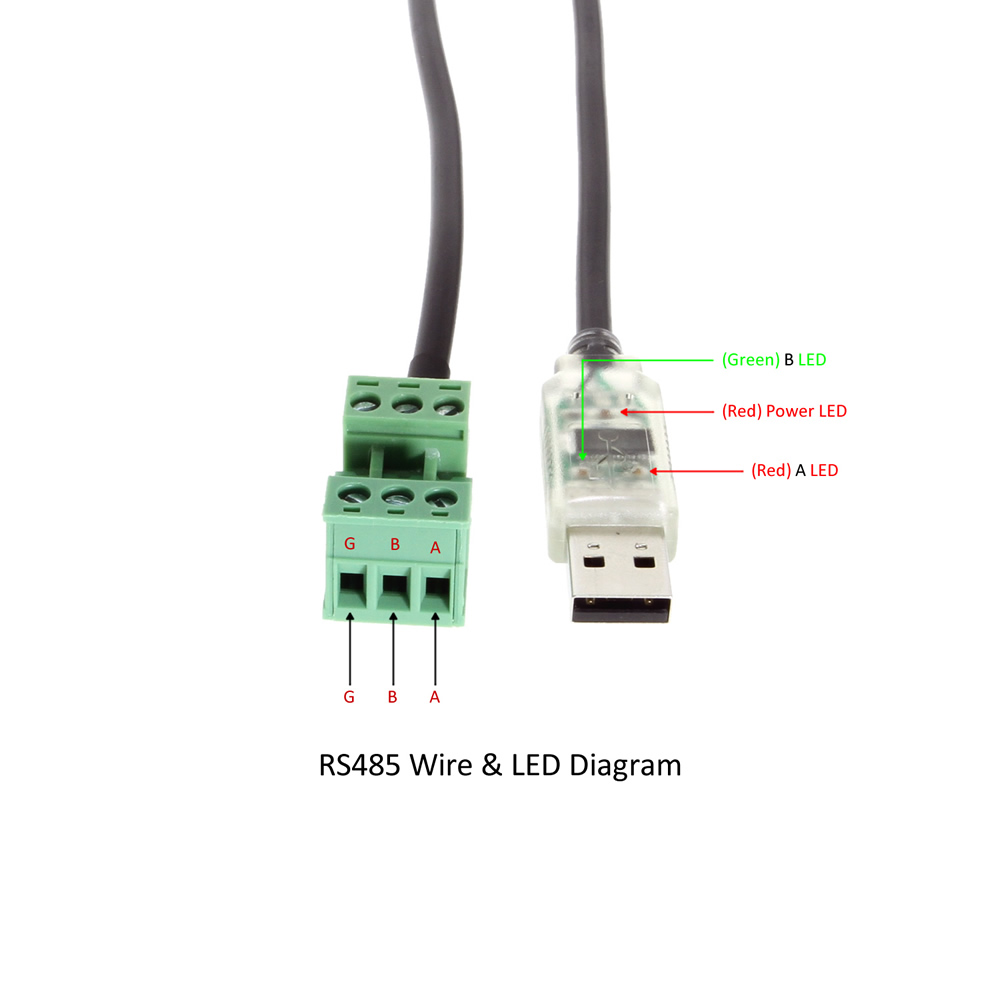

| Signal Outputs | GND (Black), Data- (Yellow), 5V Power (Red), Terminator1 (Brown), Data+ (Orange), Terminator 2 (Green) |
| Compatibility | Windows 8.1, 8.1 x64, 8, 8 x64, 7, 7 x64, Server 2012, Server 2008, Server 2008 x64, Server 2003, Server 2003 x64, Windows Vista, Vista x64, Windows XP, XP x64, Windows 98, Windows ME, Linux, Mac OS X, Mac OS 8, Mac OS 9, Android |
| Part Number | Description | End Connector* | Cable details |
| USB-RS485-WE-1800-BT | USB to UART cable with RS485 level UART signals. Black cable, Transparent USB connector | Wire Ended (no connector) | 1.8m cable,6 core, 26 AWG, diam=5mm |
| USB-RS485-WE-5000-BT | 5m cable,6 core, 26 AWG, diam=5mm | ||
| USB-RS485-CC-LLL-CU-X | USB to UART cable with RS485 level UART signals. C = cable colour (B black or T transparent), U = USB connector colour (T transparent or B black) X = voltage (P is 5V, G is 0V) | CC = Connector description. | LLLL = Length of cable. |
Utilizing the high-performance FTDI chip ensures better data transfer stability and superior compatibility with all major operating systems. This results in a more reliable communication experience for industrial and commercial applications.
The RS485 protocol is well-known for its ability to handle long-distance transmission and harsh environments. Ideal for industries requiring robust data communication in challenging conditions.
With support for fast data transfer speeds, this USB to RS485 adapter allows seamless communication between your computer and connected RS485 devices, enhancing the efficiency of operations.
Supports a range of operating systems, including Windows, Linux, Mac OS X, and Android, making it a versatile solution that fits into any environment without compatibility issues.
The adapter’s high-quality build and flexible wire ends provide long-lasting performance even in tough working conditions. It is designed for quick installation and easy maintenance.
Industrial Automation
Widely used in factories and manufacturing plants for connecting control systems with RS485 devices, ensuring smooth operations and real-time data exchange.
Building Management Systems
Ideal for smart buildings where data transfer between sensors and control systems is crucial for maintaining efficiency and safety.
Data Acquisition Systems
Perfect for environments requiring reliable long-distance communication for data collection and monitoring in applications such as energy monitoring and environmental sensors.
Remote Monitoring
Enables long-distance communication for remote monitoring of various devices, ideal for harsh or remote locations where reliable connectivity is a must.
A: Yes, the adapter is compatible with Windows, Mac OS X, Linux, and Android, making it suitable for a wide variety of systems.
A: The adapter supports up to 5 meters (16.4 feet) for optimal performance, but the 1.8-meter version is also available for shorter distances.
A: While designed for industrial use, it is versatile enough to be used in various residential or commercial setups, as long as RS485 communication is required.
A: No, the FTDI chip allows for plug-and-play installation with no additional software required, making it user-friendly.
A: The adapter outputs GND, Data-, Data+, and power signals (5V), with terminators to ensure smooth RS485 communication.
