TC2030-FTDI-TTL-232R-5V
PIISUN
| Quantity: | |
|---|---|

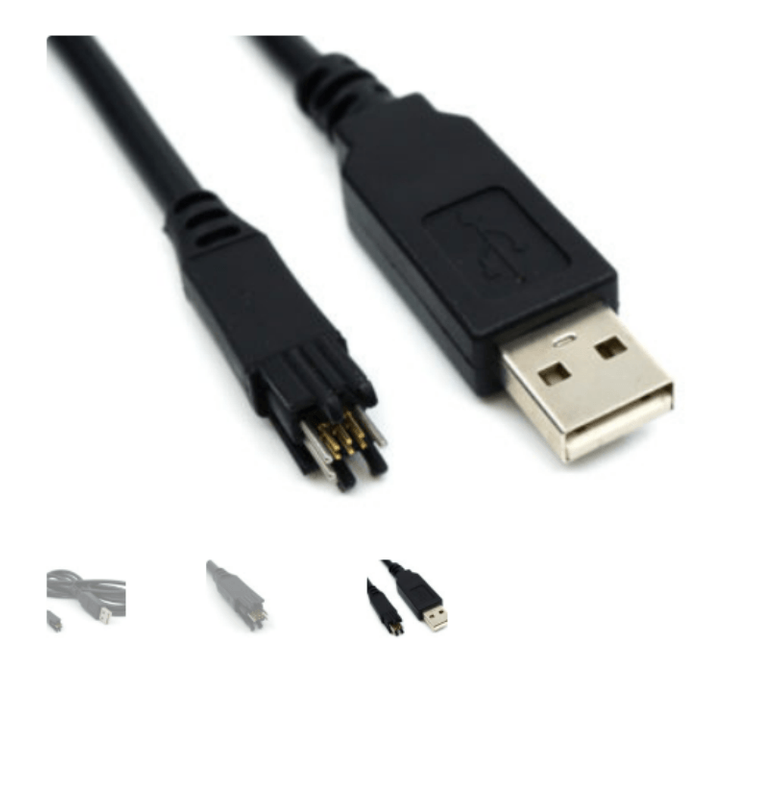

This product is FTDI’s TTL-232R-5V to USB Serial Converter cable fitted with a TC2030 “Legged” Tag-Connector. This tiny footprint TC2030 debug connector requires no mating-half connector on the PCB saving target board cost and space.
FTDI-TTL-232R-5V Specification
VCC: 5V
VCC Max current: 75mA
UART TTL level signals: 5V
Data rates: 3Mbps
Nominal cable length: 5.9ft/1.8m.
See also the no-legs version TC2030-NL-FTDI-TTL-232R-5V. For details of the full range of Tag-Connect FTDI test cables , see the FTDI test cables range summary and full list of available FTDI family cables.
| TC2030 pin | FTDI Signal | Type | Description |
|---|---|---|---|
| 1 | VCC (RED) | Output | Power supply output |
| 2 | CTS / TMS (BROWN) | Input | Clear to Send Control input / Handshake signal |
| 3 | RXD / TDI (YELLOW) | Input | Receive Asynchronous Data input |
| 4 | TXD / TCLK (ORANGE) | Output | Transmit Asynchronous Data output |
| 5 | GND (BLACK) | GND | Device ground supply pin |
| 6 | RTS / TDO (GREEN) | Output | Request To Send Control Output / Handshake signal |
ZERO Cost per Board!
No mating connector required on PCB!
High Reliability Pogo Spring Pins for Secure Connection!
Tiny footprint!
Rugged Design for Highly Repetitive Use!
Designed so it can only be inserted the correct way round!
Read more about how caratar Saves you Money on Every PCB!
Please see below for a list of caratar small footprint debugging/programming cable solutions for FTDI/UART/USB/Serial devices. Solutions may be available for different sized target board connectors, different debugging/programming protocols or different debuggers. Solutions are also available for either "legged" or "no legs" versions of the plug-of-nails™ target board connectors. Use the debugger links to see further information on these options as applicable to particular debuggers.
The following table lists the characteristics of all our available FTDI cables.
Use the links in the table to go direct to your required product.
The tiny footprint Caratar target board connectors require no mating half, saving cost and space on every board!
Custom versions of FTDI cables are possible.
For FTDI datasheets please Contact Online Sales
| FTDI Family - USB to Serial The following table lists the characteristics of all our available FTDI cables. Use the links in the table to go direct to your required product. The tiny footprint Caratar target board connectors require no mating half, saving cost and space on every board! Custom versions of FTDI cables are possible. For FTDI datasheets please contact on line sales | |||||||
| Summary of FTDI Family Cables | |||||||
| Cable | VCC | VCC Max current | UART TTL level signals | Data rates | Notes | "Legged" Version | "No Legs" Version |
| TTL-232R | |||||||
| TC2030-FTDI-TTL-232R-3V3 | 5V | 75mA | 3.3V | 3Mbps | Watch out! VCC really is 5V! | ||
| TC2030-FTDI-TTL-232R-5V | 5V | 75mA | 5V | 3Mbps | |||
| TTL-232RG | |||||||
| TC2030-FTDI-TTL-232RG-VIP | 1.8 – 5.25V | VCC | 3Mbps | VCC is a required Input, UART signal output levels match VCC and won’t be present if VCC is not connected | |||
| TC2030-FTDI-TTL-232RG-VREG1V8 | 1.8V | 100mA | 1.8V | 3Mbps | |||
| TC2030-FTDI-TTL-232RG-VREG3V3 | 3.3V | 250mA | 3.3V | 3Mbps | |||
| TC2030-FTDI-TTL-232RG-VSW3V3 | 3.3V | 50mA | 3.3V | 3Mbps | |||
| TC2030-FTDI-TTL-232RG-VSW5V | 5V | 450mA | 5V | 3Mbps | |||
| TTL-234X | |||||||
| TC2030-FTDI-TTL-234X-3V3 | 5V | 450mA | 3.3V | 3Mbps | Watch out! VCC really is 5V! | ||
| TC2030-FTDI-TTL-234X-5V | 5V | 450mA | 5V | 3Mbps | |||
| C232HD | |||||||
| TC2030-FTDI-C232HD-DDHSP-0 | 3.3V | 250mA | 3.3V | 12Mbps | FT232H based Hi-Speed 480Mbps | ||
| TC2030-FTDI-C232HD-EDHSP-0 | 5V | 450mA | 3.3V | 12Mbps | FT232H based Hi-Speed 480Mbps | ||
| TC2030-FTDI-C232HD-DDHSP-0-DTR | 3.3V | 250mA | 3.3V | 12Mbps | FT232H based Hi-Speed 480Mbps | ||
| Buy “Legged” version | Same as TC2030-FTDI-C232HD-DDHSP-0 but DTR replaces CTS | ||||||
| Buy “No Legs” version | |||||||
| TC2030-FTDI-C232HD-EDHSP-0-DTR | 5V | 450mA | 3.3V | 12Mbps | FT232H based Hi-Speed 480Mbps | ||
| Buy “Legged” version | Same as TC2030-FTDI-C232HD-EDHSP-0 but DTR replaces CTS | ||||||
| Buy “No Legs” version | |||||||
| TC2050-FTDI-C232HD-DDHSP-0 | 3.3V | 250mA | 3.3V | 12Mbps | FT232H based Hi-Speed 480Mbps | ||
| Contact us to order | Connects all 10 signals to target board | ||||||
| TC2050-FTDI-C232HD-EDHSP-0 | 5V | 450mA | 3.3V | 12Mbps | FT232H based Hi-Speed 480Mbps | ||
| Contact us to order | Connects all 10 signals to target board | ||||||
| More Customization cable, contact us back , strong RD team is wait your feedback | |||||||
Introducing the Tc2030-Nl-Ftdi-C232HD-Ddhsp-0 USB to Tc2030 No Legs Serial Cable, a cutting-edge solution designed to revolutionize your connectivity experience. This USB Serial Converter Cable is specifically engineered to seamlessly connect your devices, ensuring efficient data transfer and enhanced productivity. With its unrivaled performance and reliability, this cable is a must-have for professionals seeking seamless connectivity solutions.
Crafted with utmost precision, the Tc2030-Nl-Ftdi-C232HD-Ddhsp-0 USB to Tc2030 No Legs Serial Cable boasts a sleek and durable design, guaranteeing long-lasting performance. Its robust construction ensures resistance against wear and tear, making it an ideal choice for both indoor and outdoor usage. Whether you are connecting your computer to a printer, scanner, or any other serial device, this cable ensures a seamless and uninterrupted connection.
Equipped with advanced technology, this USB Serial Converter Cable offers lightning-fast data transfer speeds, allowing you to transfer large files in a matter of seconds. Say goodbye to slow and unreliable connections, as this cable ensures a stable and secure connection every time. With its high-speed capabilities, you can now complete your tasks efficiently and effortlessly.
The Tc2030-Nl-Ftdi-C232HD-Ddhsp-0 USB to Tc2030 No Legs Serial Cable is designed to be user-friendly, making it suitable for both beginners and experienced professionals. Its plug-and-play functionality eliminates the need for complex installations or driver downloads, ensuring a hassle-free experience. Simply connect the cable to your device, and you are ready to go.
Furthermore, this USB Serial Converter Cable is compatible with a wide range of devices, including computers, laptops, printers, scanners, and more. Its versatility allows you to connect multiple devices simultaneously, providing you with the flexibility you need to accomplish your tasks efficiently.
In conclusion, the Tc2030-Nl-Ftdi-C232HD-Ddhsp-0 USB to Tc2030 No Legs Serial Cable is the ultimate solution for professionals seeking reliable and efficient connectivity. With its exceptional performance, durability, and user-friendly design, this cable is a game-changer in the world of connectivity. Upgrade your connectivity experience today and unlock a world of possibilities with the Tc2030-Nl-Ftdi-C232HD-Ddhsp-0 USB to Tc2030 No Legs Serial Cable.
