TTL-232R-PCB
PIISUN
| Quantity: | |
|---|---|

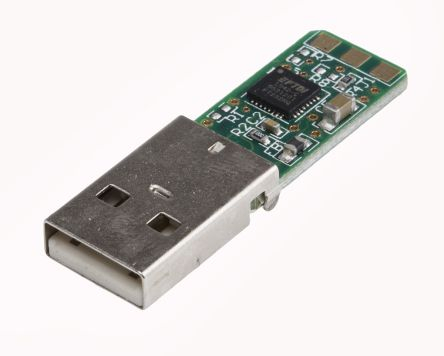

The TTL-232R-PCB is a USB to TTL serial UART converter PCB incorporating FTDI’s FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The PCB provides a fast, simple way to connect devices with a TTL level serial interface to USB. Each TTL-232R_PCB contains a small internal electronic circuit board, utilising the FT232R plus a USB type-A connector. The FT232R datasheet, DS_FT232R, is available at http://www.ftdichip.com. The PCB is RoHS compliant at TTL levels of + 5V or + 3.3V. The PCB is USB powered and USB 2.0 full speed compatible. Each PCB supports a data transfer rate up to 3 Mbaud and supports the FTDIChip-ID, with a unique USB serial number programmed into the FT232R. This feature can be used to create a security or password protected file transfer access using the PCB.
Part Number The following Table 1.1 gives details of the available TTL-232R-PCB.
Part Number | Description |
TTL-232R-5V-PCB | USB to UART PCB with selectable +5V TTL level UART |
TTL-232R-3V3-PCB | USB to UART PCB with selectable +3.3V TTL level UART signals |
TTL-232RG- | USB to UART cable with +3.3V |
The USB TTL Serial cables are a range of USB to serial converter cables which provide connectivity between USB and serial UART interfaces.
All cables feature an FTDI FT232R device integrated within the cable USB type ‘A’ connector, which provide access to UART Transmit (Tx), Receive (Rx), RTS#, CTS#, VCC (5V) and GND connections. All cables are fully RoHS compliant and are FCC, CE and UKCA approved.

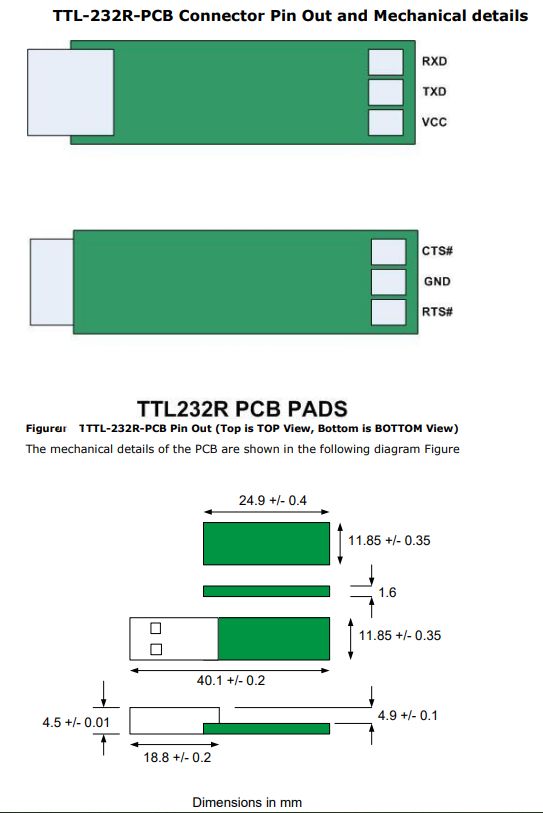

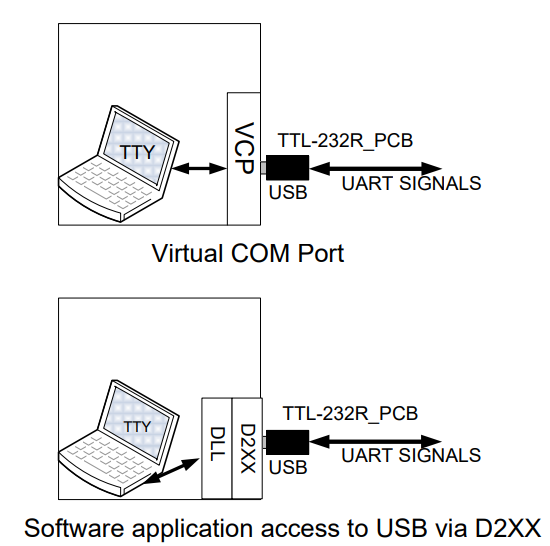

TTL-232R-3V3-PCB/ TTL-232R-5V-PCB is a USB to TTL serial UART converter PCB incorporating FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The PCB provides a fast, simple way to connect devices with a TTL level serial interface to USB. It contains a small internal electronic circuit board, utilising FT232R plus a USB type A connector. The PCB is USB powered and USB 2.0 full speed compatible. The PCB supports a data transfer rate up to 3Mbaud and supports FTDIChip-ID, with a unique USB serial number programmed into the FT232R. This feature can be used to create a security or password protected file transfer access using the PCB. Requires USB drivers, which are used to make the FT232R on the PCB appear as a VCP. This then allows the user to communicate with the USB interface via a standard PC serial emulation port. Another FTDI USB driver, the D2XX driver, can also be used with application software to directly access the FT232R on the PCB though a DLL.
· On board FT232RQ provides single chip USB to asynchronous serial data transfer interface
· Entire USB protocol handled by the electronics on the PCB
· Connect directly to a microcontroller UART or I/O pins
· Fully assisted hardware or X-On / X-Off software handshaking
· Internal EEPROM with user writeable area
· Support for FT232R FTDIChip-ID feature for improved security
· PCB is USB powered, no external supply required
· 3.3V output allows external logic to be powered from the USB port
· Low USB bandwidth consumption
· UHCI / OHCI / EHCI host controller compatible
Typical Applications
USB to Serial TTL Level Converter
Upgrading Legacy Peripherals to USB
Interface Microcontroller UART or I/O to USB
Interface FPGA / PLD to USB
Replace MAX232 type level shifters allowing for direct connection of products to PC via USB
USB Instrumentation PC interface
USB Industrial Control
USB Software / Hardware Encryption Dongles
Supported different customiation , contact us for more detail
