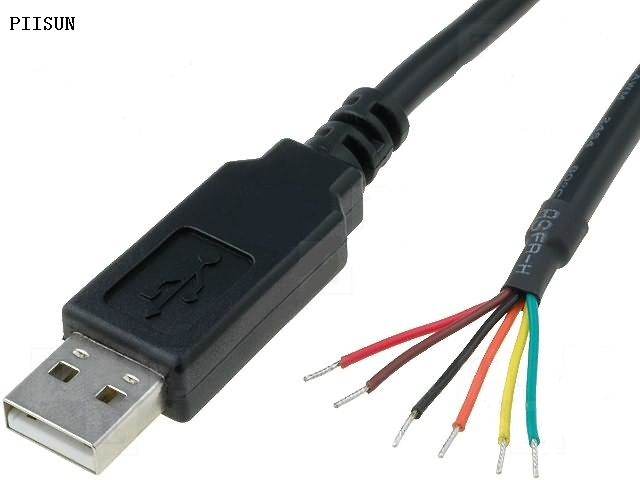

TTL-232R-3V3-WE/TTL-232R-5V-WE  USB to TTL Serial Adapter Cable w/ Embedded Controller, 3.3V, Wire EndedUSB to UART cable Supports +3.3V UART signals

• 6 ft FT232 USB to TTL serial adapter (with 6 pin 0.1” pitch female socket header) connects devices with 5V logic level UART signals interface to a laptop via USB port

• A genuine FT232RL chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates

• 6 feet FTDI USB to TTL serial cable (6 way outputs, Single-In-Line ) provides access to Tx, Rx, RTS#, CTS#, VCC (5v) and GND

• FTDI chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM

• 6 pin header 5V TTL to USB converter cord is compatible with Windows 11,10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE, Mac OS, Linux 2.4 and greater; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.

The TTL-232R-3V3 is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of FTDI’s USB to TTL serial adapter cables has it’s I/O pins configured to operate at 3.3V levels.

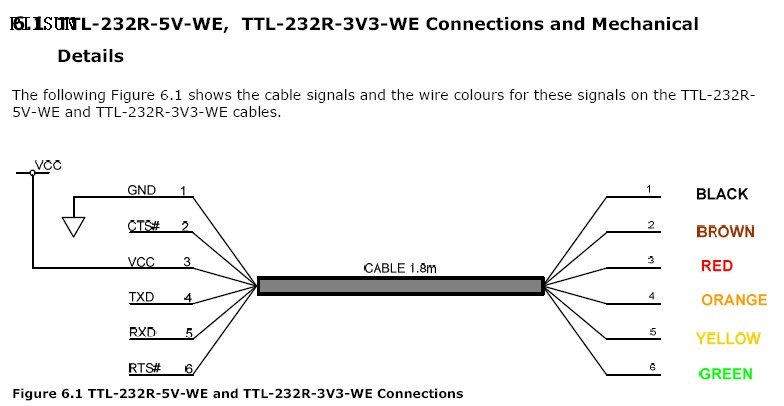

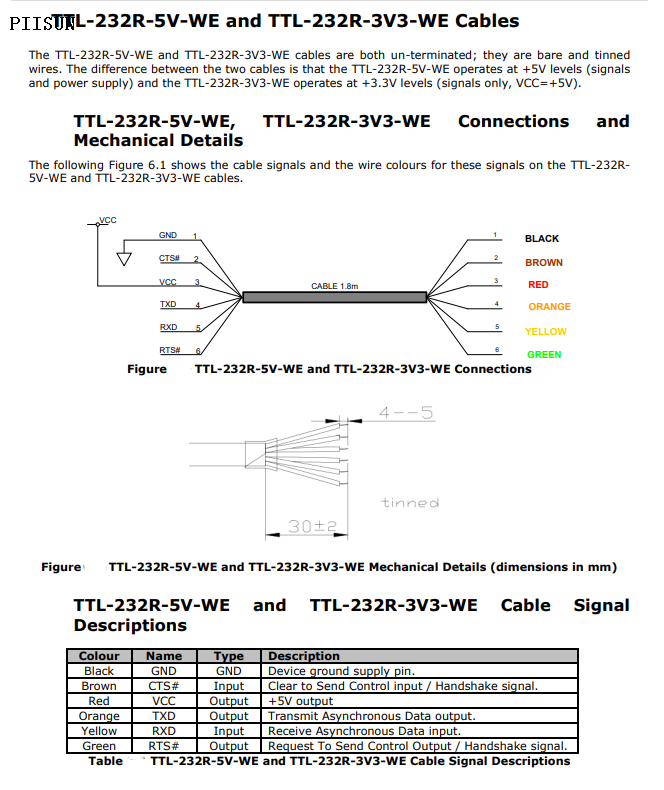

The TTL-232R-3V3 uses a FT232R  IC which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1.8 meter cable with a 0.1″” pitch header socket which provided access to transmit (Tx), receive (Rx), RTS#, and CTS#. These lines all operate at 3.3V levels. Also brought out on the header are Vcc (5V), and GND.

The TTL-232R-3V3 is fully RoHS compliant and is supplied loose – packed in an anti-static bag. It is FCC, CE and UKCA approved.

The following Table 1.1 gives details of the available TTL-232R cables

supports customised end connector designs. For more information, please contact  Sales Team

6-Foot FT232RL FTDI USB TTL serial adapter cable for 5V logic level serial communication

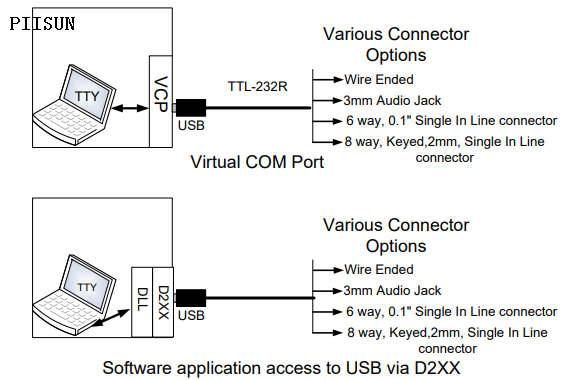

It is built with FTDI FT232 chip, FTDI’s royalty-free VCP allow for communication as a standard COM port and D2XX ‘direct’ drivers provide DLL application programming interface; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc.

NOTE: If any installation or usage issues, please email us or you may download a driver and usage guide on FTDI official website

The original FTDI chip is embedded in the USB-A end; 6 way 0.1” header connector with VCC (5V power) and GND (ground), as well as RXD, TXD, RTS and CTS at 5 V logic level.

Applications:
Upgrading Legacy Peripherals to USB
Interface Microcontroller UART or I/O, FPGA / PLD to USB
Replace MAX232 type level shifters allowing for direct connection of products to PC
Industrial Control / USB Software / Hardware Encryption Dongles

Features
- The I/O pins of the FTDI wire are configured to operate at 5.0V logic level - Entire USB protocol handled by the electronics in the cable;
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity;
- Data transfer rates from 300 to 3M baud rate at TTL levels;
- Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking;
- Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required;
- UHCI / OHCI / EHCI host controller compatible

Specific
Interfaces: USB 2.0 type A Male Port ; 6 pin Female Socket Header
Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10,11 (32 and 64-bit); Mac OS 8/9 , OS-X; Linux 2.4 and greater
