TTL-232R-5V
PIISUN
| Quantity: | |
|---|---|
0.1" Pitch
26AWG Conductor
Entire USB Protocol Handled by the Electronics in the Cable USB
Connect Directly to a Microcontroller UART or I/O Pins
6-way Output provides Tx, Rx, RTS#, CTS#, VCC and GND (Audio Jack which provides only Tx, Rx, GND)
Support for FT232R FTDIChip-ID™ Feature for Improved Security
Low USB Bandwidth Consumption
-40 to +85°C Operating Temperature Range
Computers & Computer Peripherals

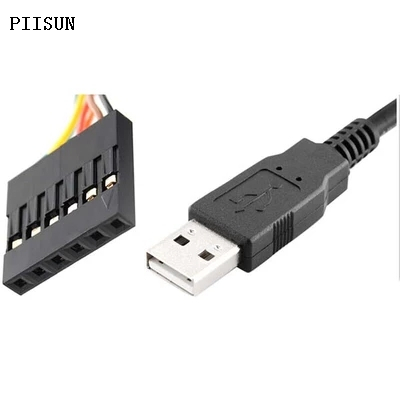

The TTL-232R-5V/TTL-232R-3V3 is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of FTDI’s USB to TTL serial adapter cable has it’s I/O pins configured to operate at 5V levels.

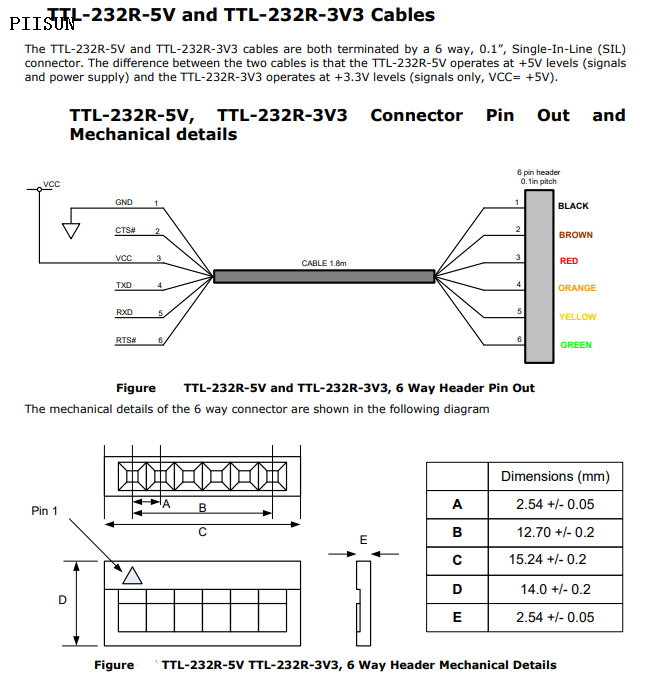

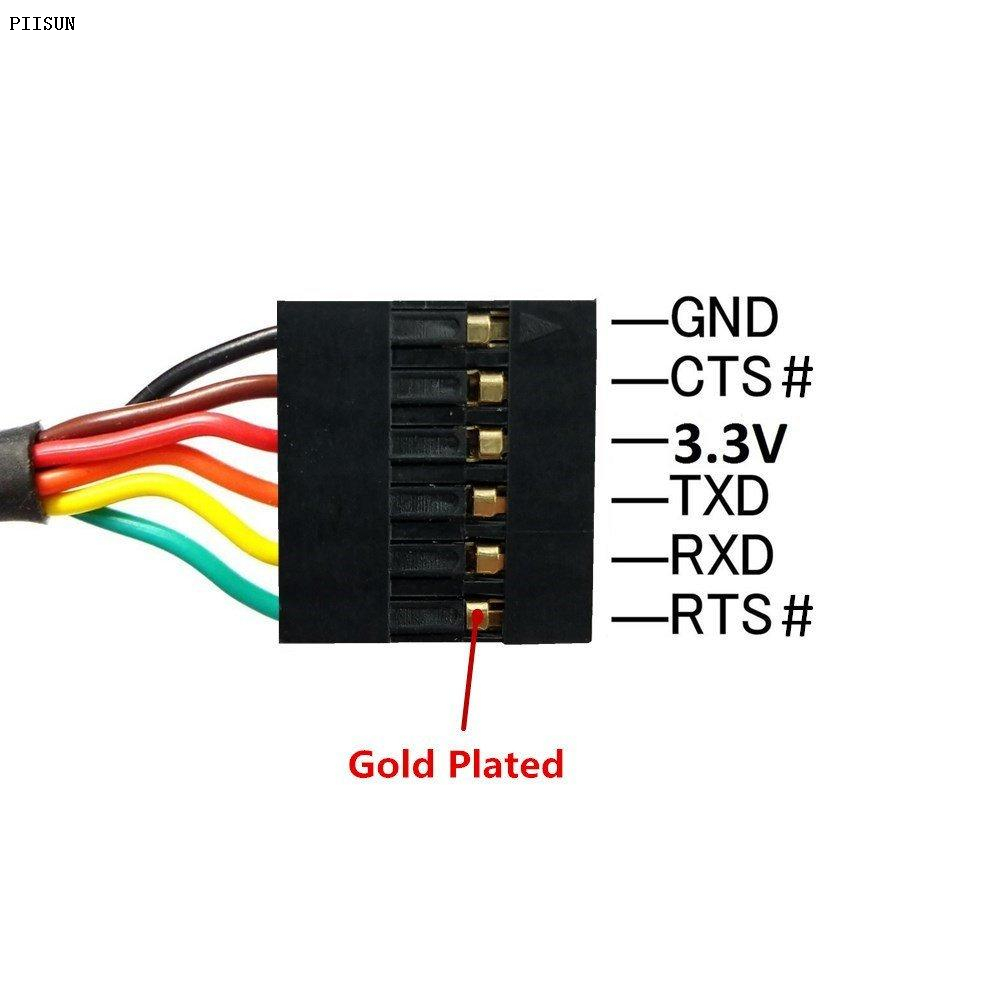

The TTL-232R uses a FT232RQ IC which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1.8 meter cable with a 0.1″” pitch header socket which provided access to transmit (Tx), receive (Rx), RTS#, CTS#, Vcc (5V), and GND.
The TTL-232R-5V/TTL-232R-3V3 is fully RoHS compliant and is supplied loose – packed in an anti-static bag. It is FCC, CE and UKCA approved.
The TTL-232R-5V/TTL-232R-3V3 is an USB to UART serial Converter Cable with +5V TTL level UART signal. The USB side of the cable is USB powered and USB 2.0 full speed compatible. The cable is both terminated by a 6-way, 0.1", single-in-line (SIL) connector. The cable contains a small internal electronic circuit board, utilizing the FT232R, which is encapsulated into the USB connector end of the cable.
· 0.1" Pitch
· 26AWG Conductor
· Entire USB Protocol Handled by the Electronics in the Cable USB
· Connect Directly to a Microcontroller UART or I/O Pins
· 6-way Output provides Tx, Rx, RTS#, CTS#, VCC and GND (Audio Jack which provides only Tx, Rx, GND)
· Support for FT232R FTDIChip-ID™ Feature for Improved Security
· Low USB Bandwidth Consumption
· -40 to +85°C Operating Temperature Range
Available Cables and Part Numbers The following Table 1.1 gives details of the available TTL-232R cables
Part Number | Description | End Connector* | Cable details |
TTL-232R-5V | USB to UART cable with +5V TTL level UART signals. | 6 pin SIL, 0.1” pitch | 6 core, 26AWG, |
TTL-232R-3V3 | USB to UART cable with +3.3V TTL level UART signals | 6 pin SIL, 0.1” pitch | 6 core, 26AWG, |
TTL-232R-5V-WE | USB to UART cable with +5V TTL level UART signals. | Wire Ended (no | 6 core, 26AWG, |
TTL-232R-3V3-WE | USB to UART cable with +3.3V TTL level UART signals | Wire Ended (no | 6 core, 26AWG, |
TTL-232R-5V-AJ | USB to UART cable with +5V TTL level UART signals. | 3.5mm Audio Jack | 2 core and spiral, |
TTL-232R-3V3-AJ | USB to UART cable with +3.3V TTL level UART signals | 3.5mm Audio Jack | 2 core and spiral, |
TTL-232R-3V3-2mm | USB to UART cable with +3.3V TTL level UART signals | 8 way, keyed, 2mm | 7 core,26 AWG, |
TTL to USB Serial Converter Typical Applications:
USB to Serial TTL Level Converter
• Upgrading Legacy Peripherals to USB
• Interface Microcontroller UART or I/O to USB
• Interface FPGA / PLD to USB
• Interface to FTDI VDRIVE2 or VMUSIC2 modules.
• Replace MAX232 type level shifters allowing for direct connection of products to PC via USB
• USB Instrumentation PC interface
• USB Industrial Control
• USB Software / Hardware Encryption Dongles
Custom versions also available (subject to MOQ).
