TTL-232R-RPi
PIISUN
| Quantity: | |
|---|---|

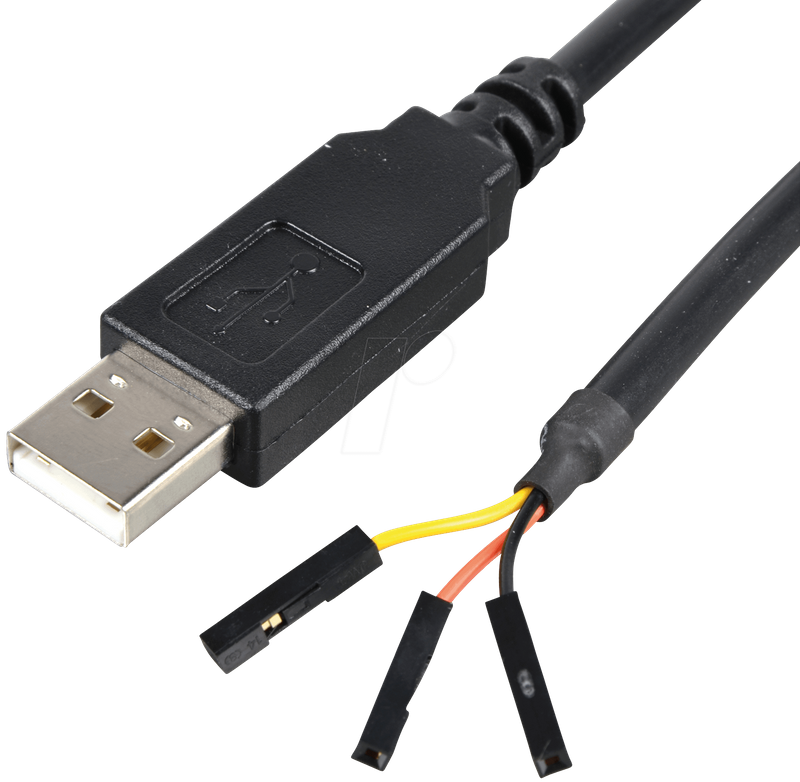

TTL-232R-RPi is a USB to TTL level serial UART converter cables incorporating FTDI’s FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The TTL-232R-RPi is designed for use with the Raspberry Pi (RPi), an ultra-low cost, Linux based miniaturised computer. The debug cable sits on the Rx/Tx of the RPi ARM processor UART – which provides much more detail of what’s happening within the RPi operating system. Connecting the debug cable to a PC and communicating with the RPi via a terminal emulator on a PC gives the user access to more detailed information from the Linux kernel during RPi start-up, which appears on the Rx/TX lines of the UART, as well as being able to login and access the kernel itself from the PC.
Communications & Networking
TTL-232R-RPi Debug cable provides a USB to TTL Serial interface for Raspberry Pi computer.
On board FT232RQ provides single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled by the electronics in the cable USB.
Connect directly to a microcontroller UART or I/O pins.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
Internal EEPROM with user writeable area.
5V safe TTL inputs make the TTL-232R easy to interface to 5V MCU’s.
FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.
Support for FT232R FTDIChip-ID™ feature for improved security.

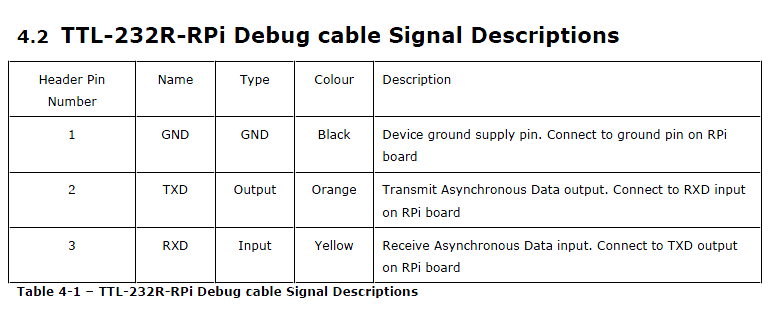

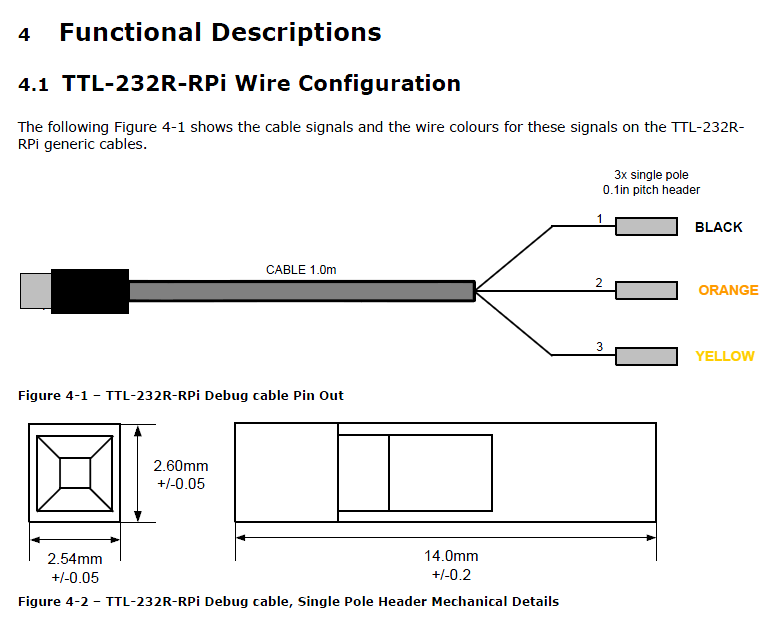

3x ‘flying leads’ outputs provide TXD, RXD and GND signals.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to +85°C operating temperature range.

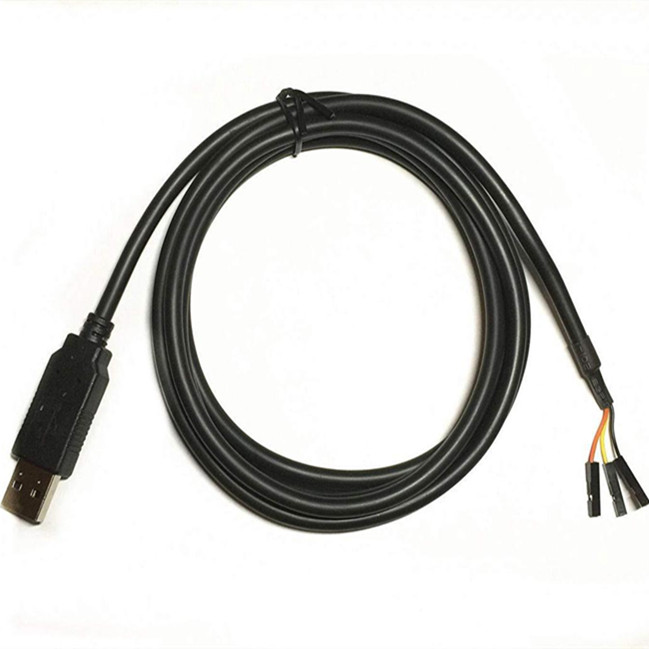

Cable length is 1.0m.
FCC and CE compliant.
